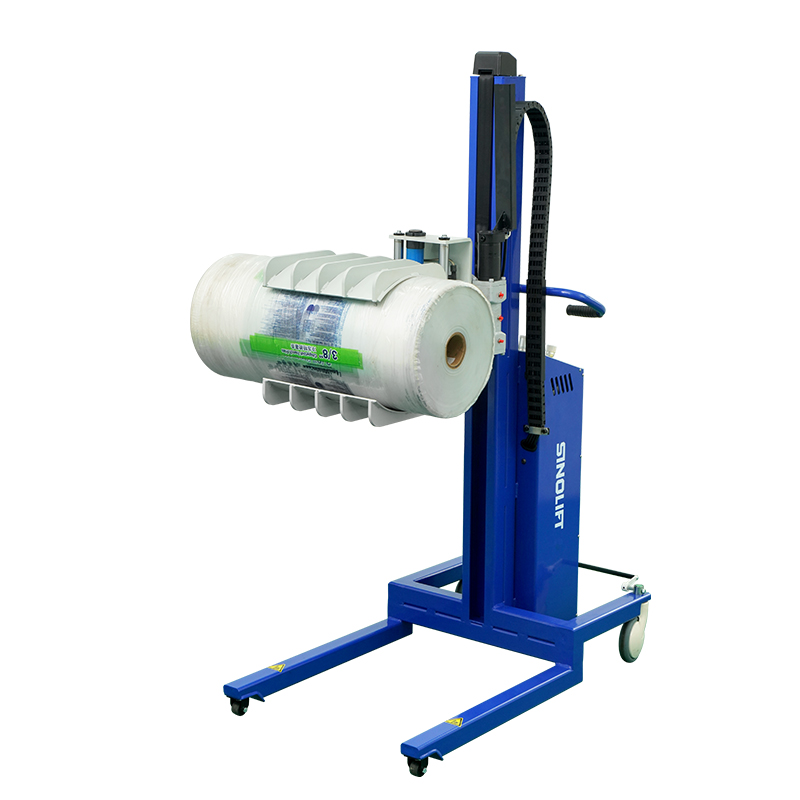

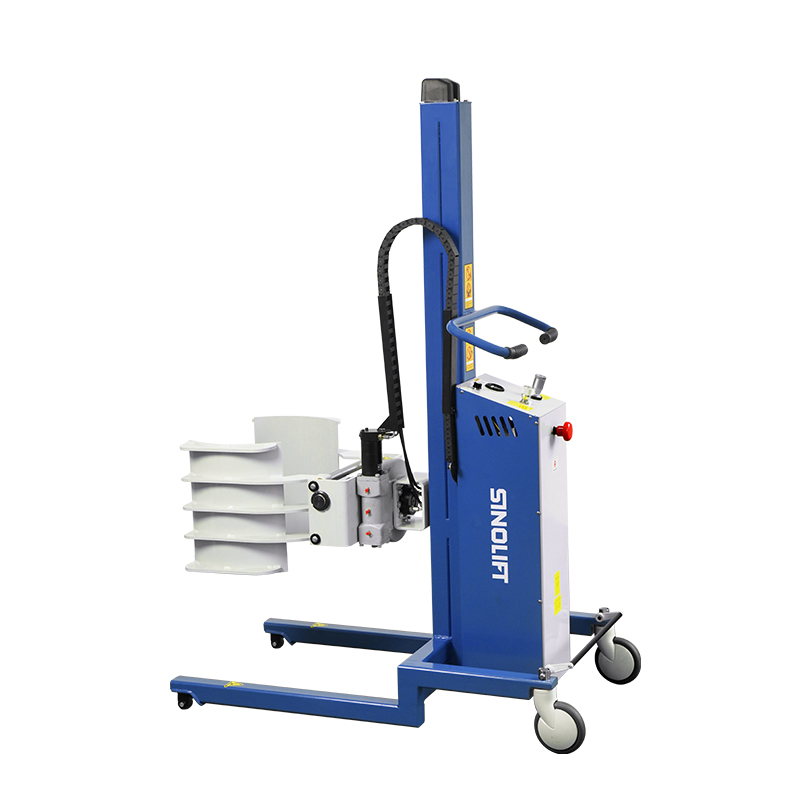

Name:ESR series Electric Clamp Roll Lifter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
MEET VARIOUS NEEDS
It's easy to operate, convenient and reassuring to use and can improve work efficiency

ELECTRICRAISE/LOWER
The clever design makes Lifting & rotating heavy rolls very safe & easy

360'ROTATEROUND CLAMP
The ideal solution for lifting, moving and turning heavy and awkward rolls

Smooth and solid frame Column lift design
High quality steel, reinforced and thickened, durable and corrosion resistant

4-wheel balanced design Good casters, durable and wear resistant
Flexible to use with brake function
Specifications:
Electric Clamp Roll Lifter
Model Number ESR150
Capacity kg 150
Lift Height mm 300/1450
Battery 24/45
Charge 24/20
Overall Length mm 1285
Overall Width mm 710
Overall Height mm 1860
Roll Diameter mm 350-450
Roll length mm 200-1200
Weight kg 200
Turning Radius mm 1170
Previous:Sinolift PFR3050L PFR4025 PFR4050 Roll & Reel Hydraulic StackerNext:NO ProductsReturn
