Feature:

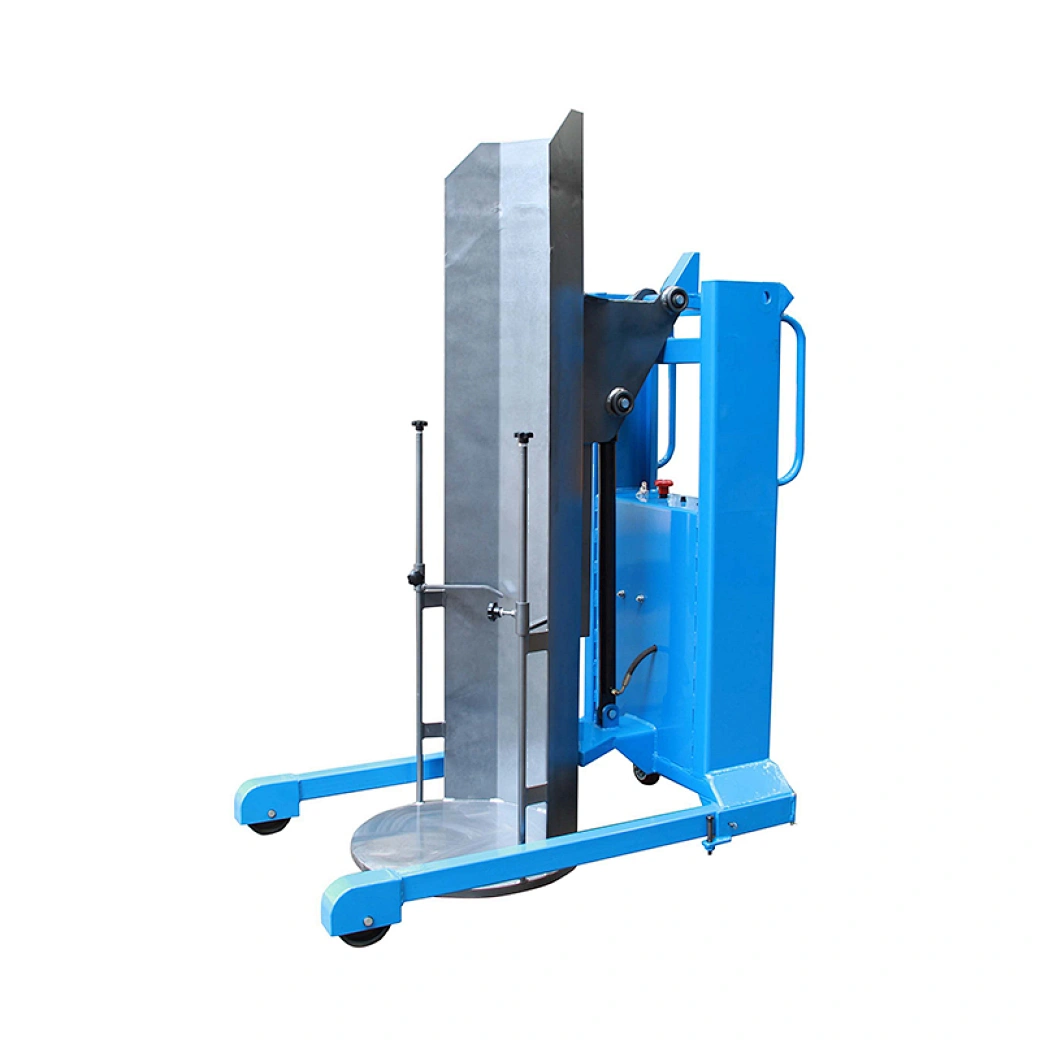

YL400 Hydraulic Drum Dumper

1. Hydraulic Drum Dumper with 45° degree tilt angle
2. Rotary switch control to raise the chute
3. gravity lowering system with adjustable flow control to safely lower the chute;
4. Hydraulic Drum Dumper with heavy-duty carbon steel construction with enamel coating;
5. with integrated hydraulic pump station and high quality hydraulic cylinders;
6. Hydraulic Drum Dumper is equipped with VARTA maintenance-free batteries;
7. with optional AC power supply;
8. suitable for dumping all kinds of drums;
9. portable unit with two rigid casters and two swivel casters with ground locking screws;
10. adjustable fixtures to keep the container from shifting;

Specifications:
Model Hydraulic Drum Dumper
YL400
Rated Load Capacity kg 400
Turning Radius mm 1600
Pump Station Power Kw/h 1.6
Battery V/Ah 12/120
Lifting Height mm 1500
Wheel Size mm ∅200*50 ∅150*50
Rotating Range ° 120°
Net Weight kg 302
