Products – Hydraulic Drum Stacker

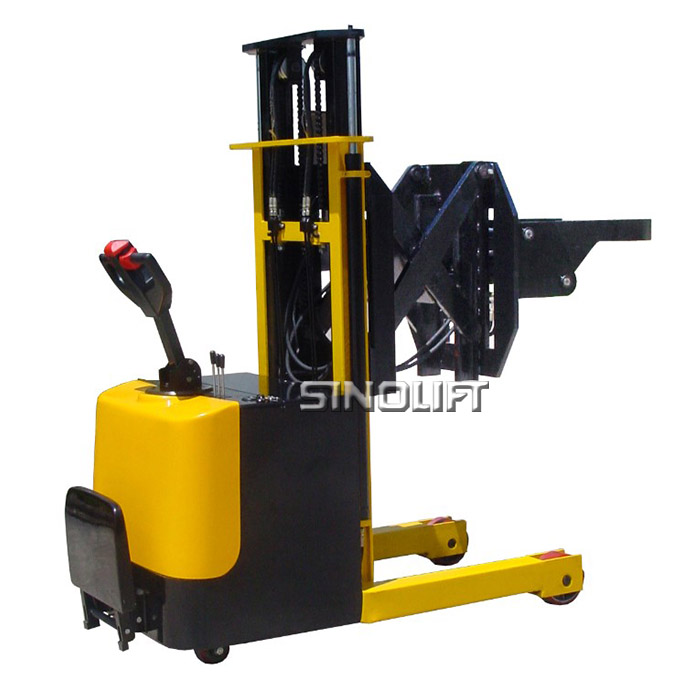

Name:WVDL40 Full Electric Drum Adopter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
 Drum Tipping Stacker
 Full Electric Drum Adopter
 High Postion Drum Rotating Crane
 Drum Handler
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
  1. Suitable for transporting, lifting, and unloading various barrels (iron and plastic).

  2. Features an imported electronic speed control system for stable and flexible operation.

  3. Equipped with a multifunctional control handle for easy gripping, lifting, and 180-degree tilting of barrels.

  4. Includes automatic fault detection, a stepless speed regulator, a high-power reversing switch, and an integrated hydraulic pump. The optional high-capacity battery ensures long usage, and the intelligent charger allows safe, unattended charging.

Specifications:
Model WVDL400
Drive Type Full Electric
Operating Type Pedestion
Rated Load Capacity kg 400
Drum Size 30 gallon (Ø450x700), 55 gallon (Ø572x900) steel, 210L plastic
Lifting Height mm 2000
Reach Length mm 500
Rotating Degree 180°
Min. Clamp Height mm 530
Overall Size mm 2000x1120x1600
Lifting Motor Power v/kw DC24/2.0
Driving Motor Power v/kw DC24/1.2
Battery V/Ah 12*2/210
Charger V/A 24/30
Net Weight kg 760
Previous:WVD40 Full Electric Drum AdopterNext:YL400 Drum Tipping HandlerReturn
