Feature:

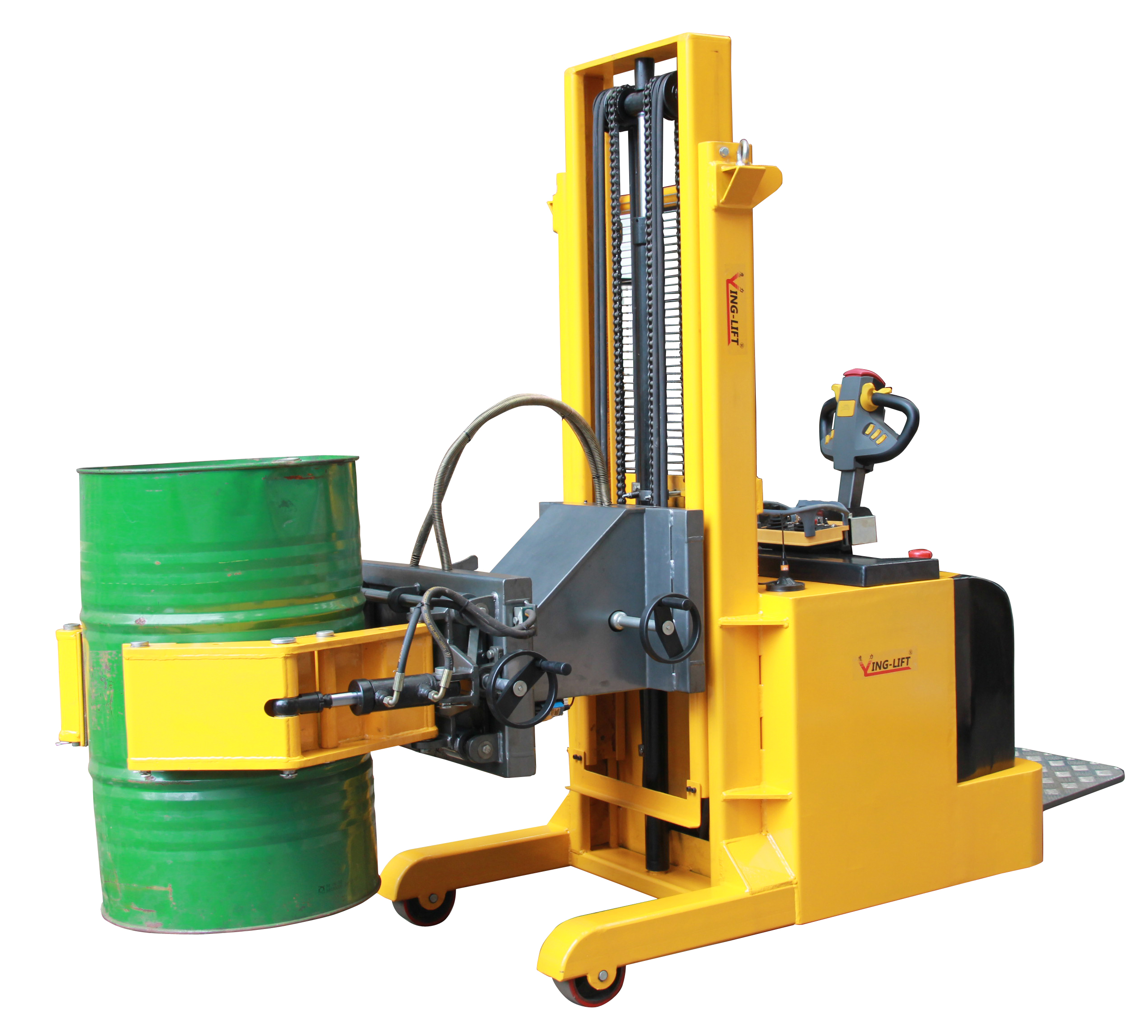

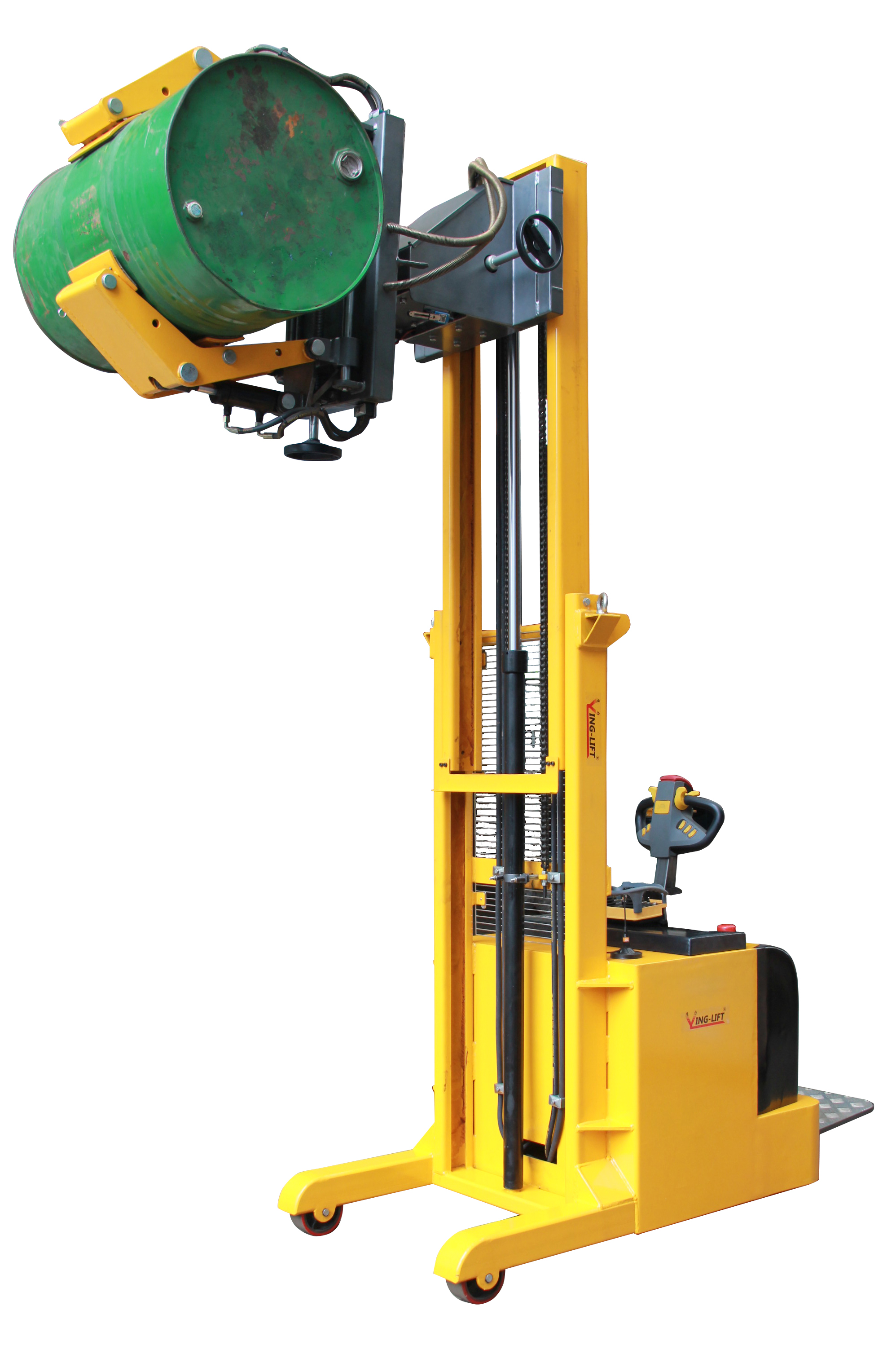

  YL700 Full Electric Drum Adopter

- Drum Handling Equipment Power drive, lift and tilt for ergonomic 55 steel and stainless steel drums pouring;

- Drum Handling Equipment Imported electrical vehicle exclusive walking control system;

- Can be operated by one people, labor saving and high work efficiency;

- Multi-man-machine control handles, stepless speed regulator, high-power reversing switch and manned pedal;

Specifications:
Model
YL700
Drive type / Battery
Operating type  / Standing
Rated load capacity kg 700
Turning Radius mm 1500
Max. Grade ability % 3/5
Driving wheel size mm ∅250*80
Wheel / PU
Drive motor power kw 1.2
Lifting motor power kw 2.2
Noise level db(A) < 70
Battery V/A 24/30
Charger V/Ah 24/210
Net weight kg 1190
Drum rotating range ° 360
