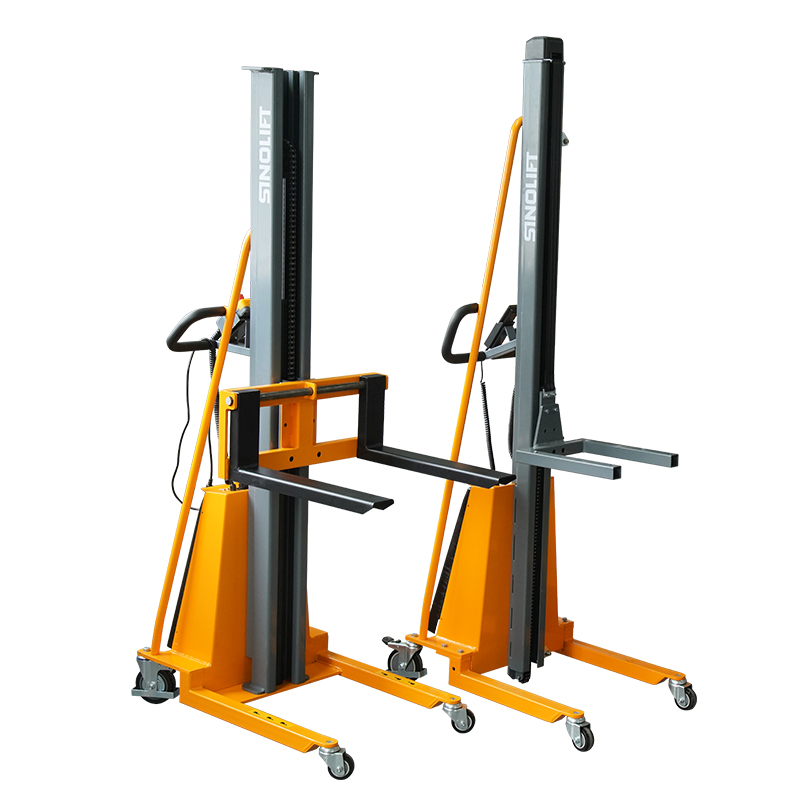

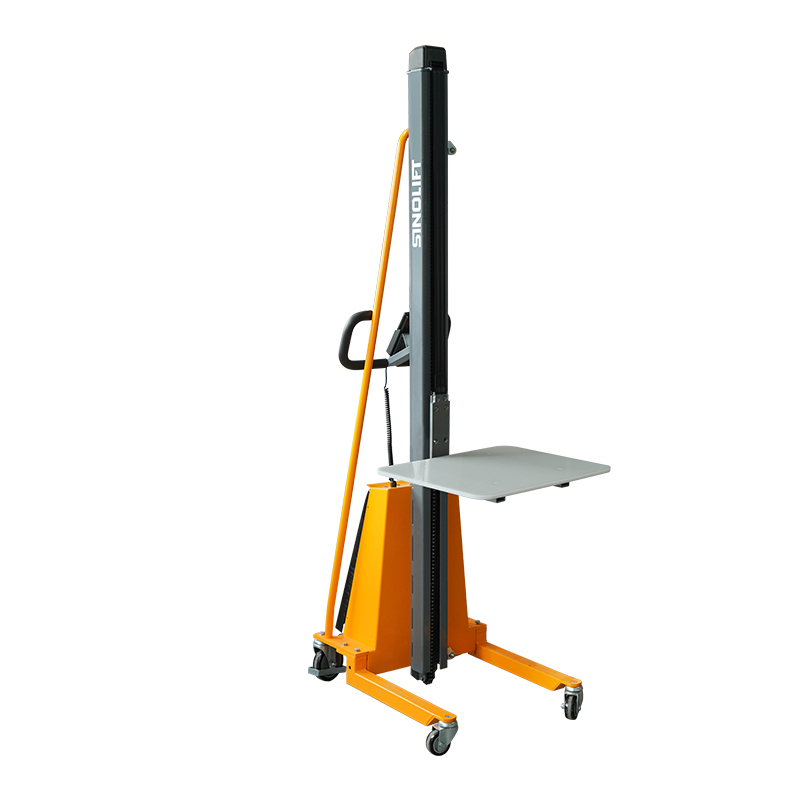

Name:E250 E350 Heavy-duty Electric Work Positioner
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
 M series Manual Winch Work Postioner
 E Series Electric Work Postioner Lift
 Other Spercial Work Postioner Lift Trolley
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Unique Structure Lightweight and Compact

  • Made with high-quality steel, tightly crafted, flexible in transportation, operable by a single person.

Column Lift

  • Special aluminum alloy column lift, lightweight and strong.

Adjustable Forks

  • Attachments secured with screws, replaceable with other accessories.

Lift Button

  • Lift control through buttons, time-saving and labor-saving.

Swivel Rear Wheels

  • 360° rotating rear wheels, flexible movement, foot brake included.

Electric Lift Controller

  • Control the lift with the electric button, adjustable lift height, simple and labor-saving operation.

Simple Control Panel

  • Clear and simple layout, optional speed controller, please contact customer service.

Clear Internal Configuration

  • Built-in maintenance-free battery, chain lift device with no oil leakage risk, clear and safe wiring distribution.

Detachable and Replaceable Attachments

  • Fixed with screws, easy to install and replace, compatible with flatbeds, single axle, hooks, etc.
Specifications:
Model E250 E350
Load Capacity kg 250 350
Lift Height mm 130-1800 130-2000
Tabletop Dimensions mm 470*600 470*600
Outer Width of Legs mm 560 560
Leg Height (Front Wheels are Swivel Wheels) mm 110 110
Wheel Size mm Front Wheels75,Rear Wheels125 Front Wheels75,Rear Wheels125
No Load Speed mm/s 50 50mm/s
Loaded Speed (Lifting and Lowering) mm/s 40,45 40,45
Effective Length of Legs mm 510 510
Battery Specifications 24V20Ah 24V20Ah
Motor Specifications 24V200W 24V200W
Overall Dimensions mm 880*600*2125 880*600*2325
Net Weight kg 100 108
