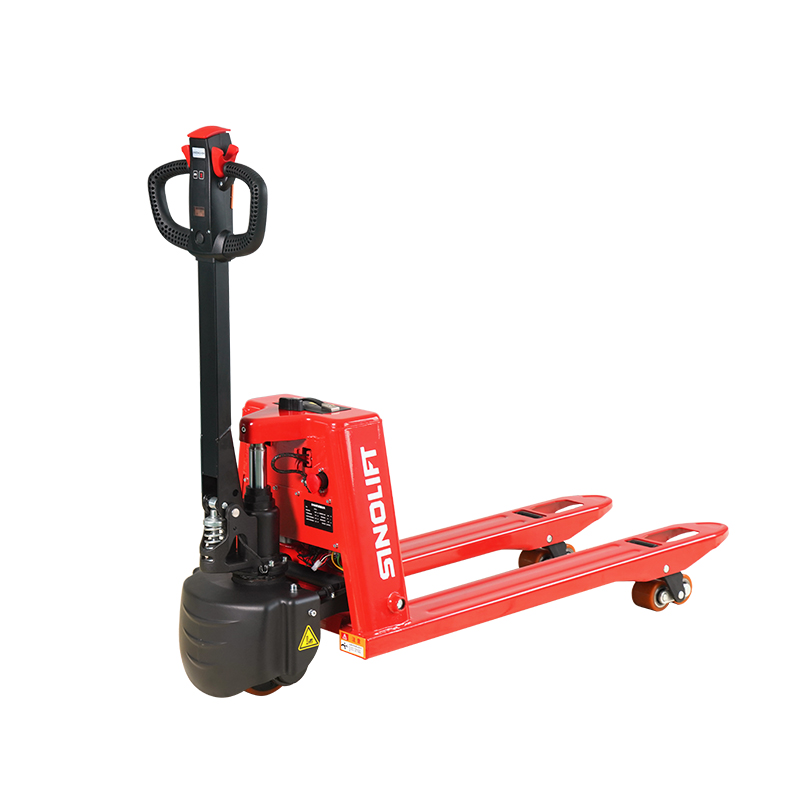

Name：EPT22 Lithium-ion batteryhydraulic pallet truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
Powerful 48V Lithium-Ion Battery
Performance and Charging: The core drive of the EPT22, providing exceptional performance. The intelligent charging system prevents overcharging, extending battery life and preventing overheating. Battery charge level can be easily monitored on the device's housing.

Battery Life
Usage and Recharge: Supports 3-5 hours of uninterrupted use, and can be fully operational again in 2.5 hours after charging, ensuring efficient transportation.

EPT22 Plus Features
Intelligent and Safety Features: Combines material handling and weighing to enhance work efficiency and reduce operator labor intensity. Includes speed reduction when turning, electromagnetic lock, vertical handle operation, fast charging, easy battery replacement, and a high-precision weighing display with an optional printer.

Specifications：
Manufacturer                            SINOLIFT
Model EPT22 PLUS
Power Type Lithium Battery
Type of Operation Pedestrian
Load capacity/Rated load q kg 2000
Load Center Distance c mm    600
Alex Centre to Fork Face x mm 820 (890)
Wheelbase y mm 1193
Total Weight (with battery) kg 146 (152)
Axle Load(laden):Drive Side/Load-bearing Side kg //
Axle Load(unladen):Drive Side/Load-bearing Side kg //
Tyre Type Polyurethane
Tyre Size (Load Wheel)  Tandem mm φ80x70(85mm) or φ74x70(75mm)
Tyre Size (Load Wheel) Single φ80x93(85mm) or φ74x93(75mm)
Tyre Size (Drive Wheel) mm φ190x70
Wheels Quantity, Front/Rear (x=Driving Wheels) 4/1x+2
Track Width,Front,Driving Side b10 mm 460
Track Width,Rear,Loading Side b11 mm 400(520)
Lifting Height h3 mm 180(200)
Height of Tiller Arm in Driving Position, Min.- Max. h14 mm 561-1215
Lowered Height h13 mm 75(85)
Overall Length l1 mm 1566(1616)
Length to Fork Face l2 mm 390
Overall Width b1 mm 550(680)
Fork Dimension s/e/l mm 50x160x1150(1200)
Fork Spread Width b5 mm 550/680
Ground Clearance at Center of Wheelbase (Min) m2 mm 30
Aisle Width for Pallets 1000x1200 Crossways Ast mm 1790
Aisle Width for Pallets 800x1200 Crossways Ast mm 1740
Turning Radius Wa mm 1361/1511
Traveling Speed (Laden/Unladen) km/h 4.5/4.5
Lifting Speed (Laden/Unladen) mm/s 22/17
Lowering Speed (Laden/Unladen) mm/s 26/30
Max.Gradient Performance (Laden/Unladen) % 6/20
Service Brake Type        Electromagnetic
Driving Motor Rating (DC) S2 60min kw 0.8
Lifting Motor Rating S3 15% kw 0.6
Battery Type Li-ion
Battery Voltage/Capacity K5 V/Ah 48/15
Battery Weight kg 4.22/5.68
Charger V/A 48/6
Controller Model DC
Steering Type Mechanical
Sound Level at Driver's Ear According to EN 12 053 dB(A) 70
