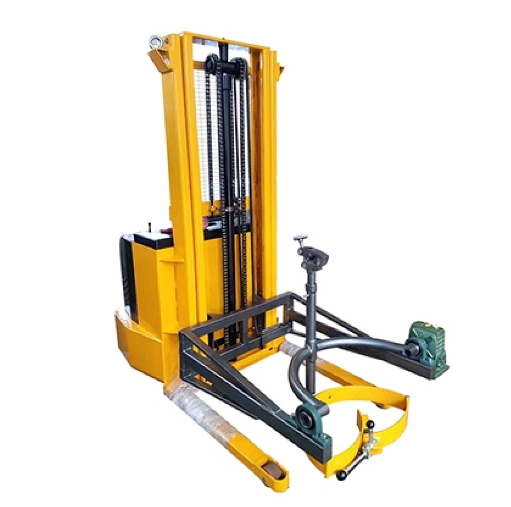

Name:YL650A Full Electric Hydraulic Drum Dumper
Click to view larger

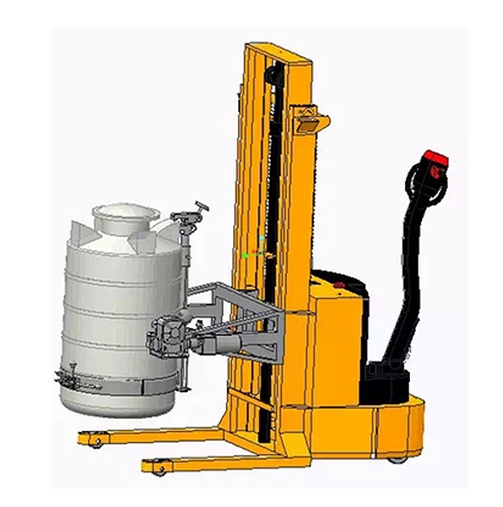

Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Model Drum Dumper YL650A Drum Dumper YL650A-1
Loading Capacity kg 650 650
Lifting Height mm 2400 2400
Drum size 55 gallon ( (Ø572x900) steel, 210L plastic 55 gallon ( (Ø572x900) steel, 210L plastic
Drive Wheel mm Ø250*80 Ø250*80
Wheel PU PU
Turning Radius mm 1650 1650
Lifting Motor kw 2.2 2.2
Battery Parameter Ah/V 120/24 120/24
Outline Dimension LxWxH mm 1960x1006x1860 1960x1006x1860
Net weight kg 518 525

Specifications:
For use with 55-gallon steel and fiber drums 22"in diameter. A hand crank gear mechanism provides the controlled 360° rotation of the drum. A floor lock is standard to stabilize the unit in a fixed position. YL650A Drum Dumper features a 24V DC powered rotation mechanism which provides 360° rotation drum. A 24V DC powered mechanism raises and lowers drums (onboard charger standard). Ergonomic handle features safety enhanced emergency remote function and horn. YL650A-1 Drum Dumper head features automatic turn off and +/- 0.5-pound accuracy.
Previous:COJ0.35B Mechanical Winch Drum DumperNext:NO ProductsReturn
