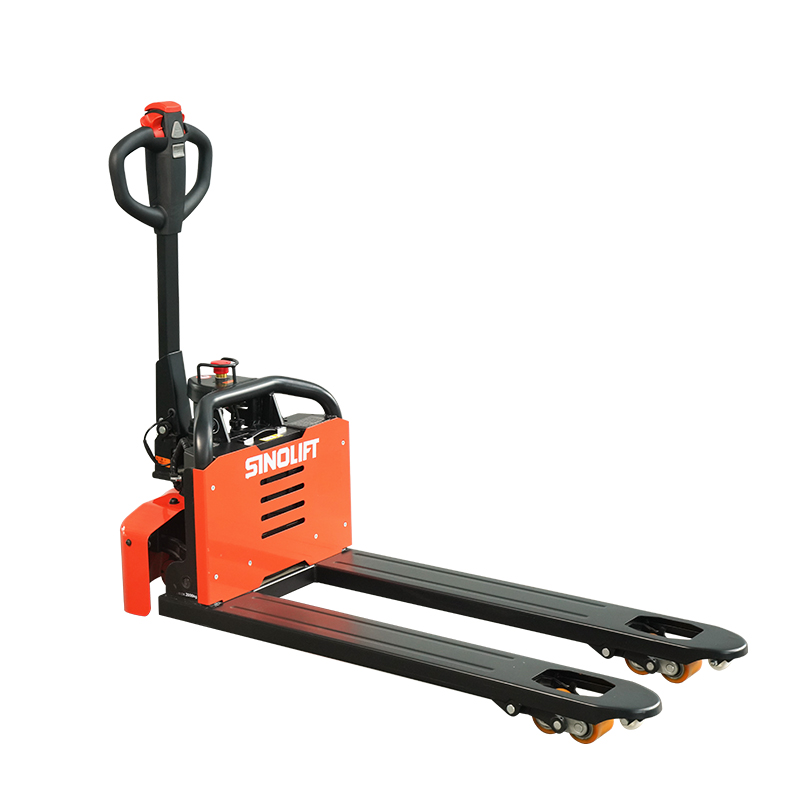

Name：EPT15 EPT18 EPT20 Lithium-ion Battery Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1. Dual Wheel Set, Stable Load Capacity
2. Polyurethane wheels and nylon auxiliary climbing wheels
3. Strong load-bearing capacity, good noise reduction effect, suitable for various surfaces such as epoxy flooring and painted floors, wear-resistant and durable
4. Standard with auxiliary climbing wheels + polyurethane dual wheels
5. Crafted with carefully selected high-quality steel, featuring a refined and elegant design. Durable and corrosion-resistant, each product undergoes quality inspection, ensuring safety and reliability.
6. Components Integrated installation of electronic control components, with safe and discreet wiring throughout the vehicle.
7. The handle is ergonomically designed with an integrated key switch and power meter. It includes a built-in emergency reverse function, making the device easy to operate.
8. Reinforced piston spring with enhanced elasticity and hardness, ensuring quick and reliable handle rebound.
Specifications：
Dentification Manufacturer                            SINOLIFT
Model EPT15 EPT18 EPT20
Power Type Lithium Battery Lithium Battery Lithium Battery
Type of Operation Pedestrian Pedestrian Pedestrian
Load capacity/Rated load q kg 1500 1800 2000
Load Center Distance c mm    600    600 650
Alex centre to Fork Face x mm 950(1020) 950(1020) 950(1020)
Wheelbase y mm 1220(1295) 1220(1295) 1220(1295)
Weight Total Weight (with battery) kg 148(153) 155(160) 158(163)
Axle Load(laden):Drive side/Load-bearing side kg
Axle Load(unladen):Drive Side/Load-bearing side kg
Tyre and Chassis Tyre Type Polyurethane Polyurethane Polyurethane
Tyre Size ( Load Wheel)  Tandem mm φ80x70(85mm) or φ74x70(75mm) φ80x70(85mm) or φ74x70(75mm) φ80x70(85mm) or φ74x70(75mm)
Tyre Size (Load Wheel) Single φ80x93(85mm) or φ74x93(75mm) φ80x93(85mm) or φ74x93(75mm) φ80x93(85mm) or φ74x93(75mm)
Tyre Size (Drive Wheel) mm φ210x70 φ210x70 φ190x70
Tyre Size (Caster Wheel) mm φ70x36 φ70x36 φ70x36
Wheels Quantity, front/rear (x=Driving Wheels) 4/1x+2 4/1x+2 4/1x+2
Track Width,Front,Driving Side b10 mm 460 460 460
Track Width,Rear,Loading Side b11 mm 400(520) 400(520) 400(520)
Dimension Lifting Height h3 mm 190(200) 190(200) 190(200)
Height of Tiller Arm in Driving Position, Min.- Max. h14 mm 600-1220 600-1220 680-1200
Lowered Height h13 mm 75(85) 75(85) 75(85)
Overall Length l1 mm 1540(1610) 1540(1610) 1540(1610)
Length to Fork Face l2 mm 390 390 390
Overall Width b1 mm 560(680) 560(680) 560(680)
Fork Dimension s/e/l mm 50x160x1150(1220) 50x160x1150(1220) 54x160x1150(1220)
Fork Spread Width b5 mm 560/680 560/680 560/680
Ground Clearance at Center of Wheelbase (Min) m2 mm 30 30 42
Aisle Width for Pallets 1000x1200 Crossways Ast mm 1790 1790 1790
Aisle Width for Pallets 800x1200 Crossways Ast mm 1740 1740 1740
Turning Radius Wa mm 1350 1350 1350
Performance Traveling Speed (Laden/Unladen) km/h 4.5/4 4.5/4 4.5/4
Lifting Speed (Laden/Unladen) mm/s 22/17 22/17 15/28
Lowering Speed (Laden/Unladen) mm/s 26/30 26/30 35/26
Max.Gradient Performance (Laden/Unladen) % 5/7 5/7 6/15
Service Brake Type        Electromagnetic        Electromagnetic        Electromagnetic
Power Unit Driving Motor Rating (DC) S2 60min kw 0.75 0.75 0.85
Lifting Motor Rating S3 15% kw 0.5 0.5 0.6
Battery Type Li-ion Li-ion Li-ion
Battery Voltage/Capacity K5 V/Ah 24/25 24/25 48/15(20Ah 30Ah option)
Battery Weight kg 5 5 6(6.5kg 7kg)
Charger V/A 24/10 24/10 48/6
Others Controller Model DC CURTIS DC CURTIS DC CURTIS
Steering Type Mechanical Mechanical Mechanical
Sound level atdriver's ear according to EN 12 053 dB(A) 70 70 70
