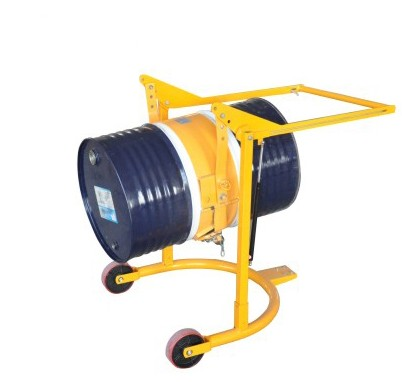

Name:HD80AQ Drum Carrier
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

· Load and Transport

· Reduce labor costs with this drum carrier dispenser. One man can lift a drum onto a scale or platform.

· Move open drums without spillage.

· Tilt and drain drums by releasing tilt locks.

· Turn drum to drain position and lock in place.

· All steel welded construction


Specifications:
Model HD80A (COS0.4) HD80AQ
Capacity kg 365 365
Drum Size 55 gallon steel (Ø572x900) 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Lifting Height mm 200 200
Pouring Height mm 350 350
Wheel mm Ø180×50/Ø75×32 Ø180×50/Ø75×32
Dimensions mm 940x895x1050 940x895x1050
N.W kg 45 52
