Feature:

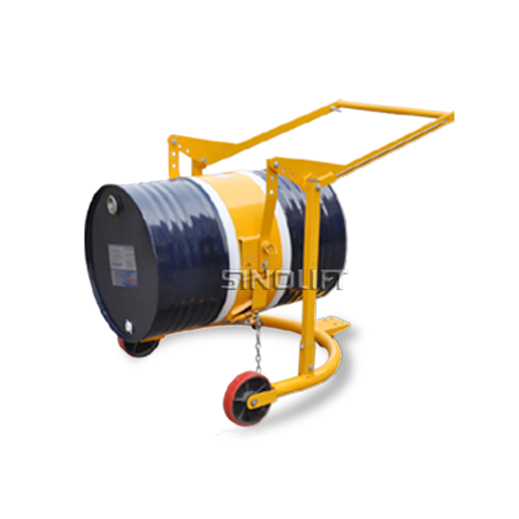

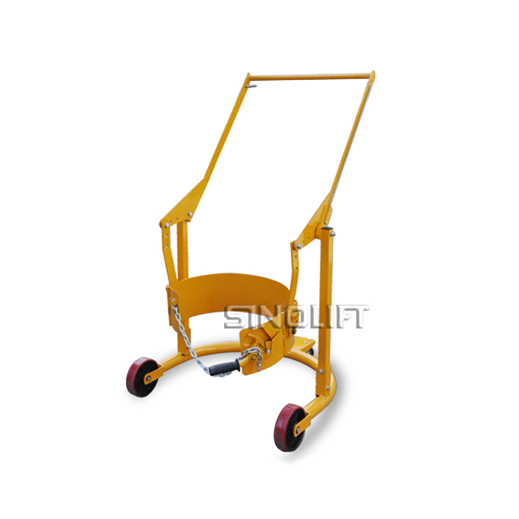

Multi-purpose Drum Truck  Model: HD80A



Features:

1. Remarkable versatility.

2. Mobile-Carrier raises, transports, rotates, tilts and drains fully loaded drums.

3. It carries the full weight of the drum.

4. Dual, fingertip operated locks secure the raised drum. It can lock a drum in the vertical position to avoid spills or in the horizontal position for draining.  When the drums is unlocked from the Drum Carrier, the drum may be turned end-over-end  to agitate contents, or tipped and held manually at any angle.



Specifications:
Model HD80A (COS0.4)
Capacity kg/lbs 365/800
Accepable Drum Style 55 gallon (210 liters), Steel
Drum Size (Dia.) mm/inch Ø572mmØ22-1/2"
Drum Height  mm/inch 915mm/36"
Net Weight kg/lbs 50/110
