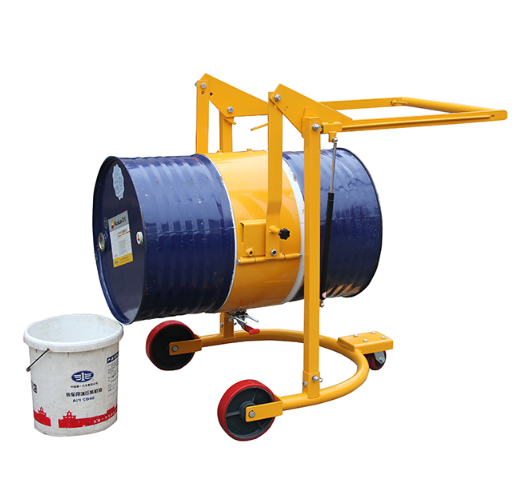

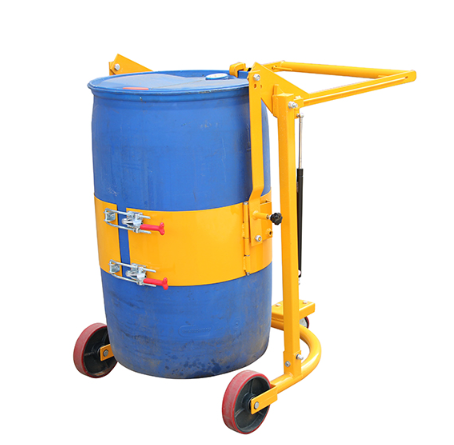

Name:HD80 Drum Carrier
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Integrated functions of lifting, transporting, rotating and pouring, easy and convenient to operate.

2. Hoop-type structure which is fit for operating with steel oil drum and PE oil drum.

3. With locking handle, the oil drum is locked and can be easily poured or positioned horizontally or vertically.

4. By releasing locking handle, the oil drum can be rotated in order to stir its content; fit for oil drums of diameter 570~600mm.

5. Applicable for chemical plants and food plants for transferring, charging and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.


Specifications:
Model HD80
Capacity kg 300
Drum Plastic/Iron
Dimensions mm 1200×800×1200
N.W kg 45
Wheel mm D200×20,D100×32
