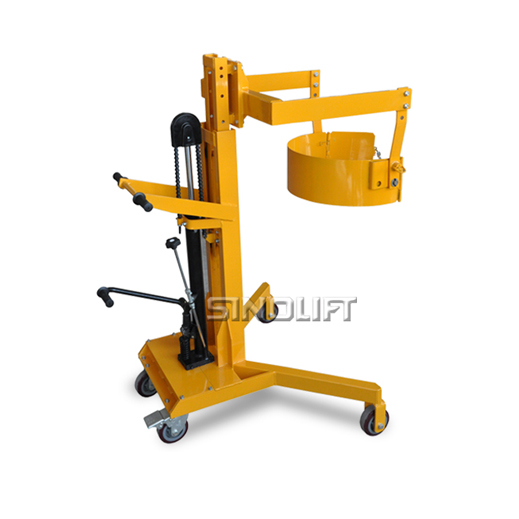

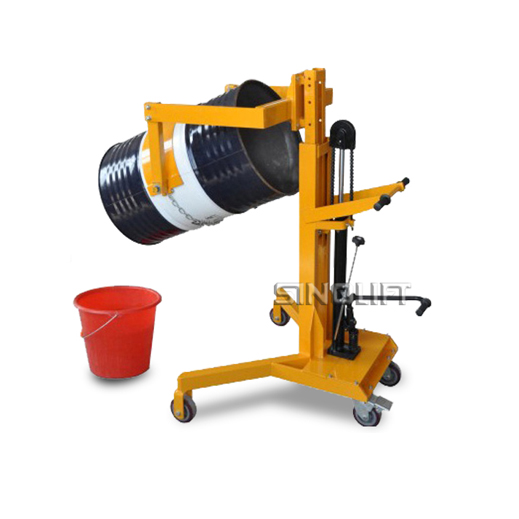

Name:DTF350A Portable Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Drum rotating Drum Handler  Model: DTF350A

A truly quality-built drum handler.



1. Remarkable versatility! Mobile-karrier raises, transports. rotates, tilts and drains fully loaded drums.

2. It carries the full weight of the drum.

3. Dual, fingertip operated locks secure the raised drum. It can lock a drum in vertical position to avoid spills or horizontal position for draining through a faucet. When unlocked, the drum may be turned end-over-end to agitate contents or tipped and held manually at any angle. And it is very simple to move and steer on its polyurethane roller bearing wheels and swivel caster.

4.It is shipped partly disassembled to save freight costs.

Specifications:
Model DTF350A
Capacity kg 350
Drum size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Rotating type Manual
Lifting type Manual & Pedal
Vertical lifting height mm 600
Horizontal lifting height mm 800
Leg Width mm 950
Wheel Φ125×20
Drum tilting degree degree 90°~180°~360°
Outline dimension mm 1180x1150x1260
Net weight kg 195
