Feature:

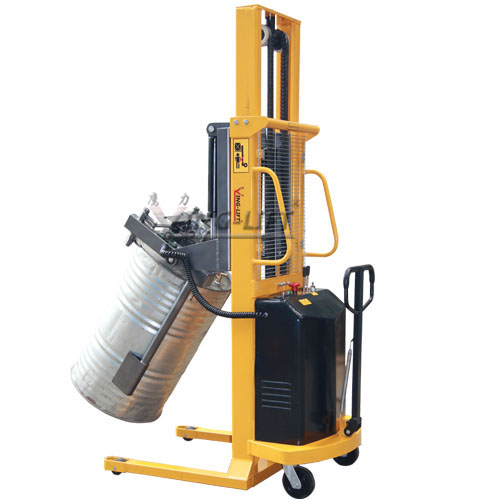

Drum Rotator YL350

Special design for handling all size of drums.

All electric control, ideal for lifting, rotating and stacking drum or other round goods such as paper roll and move drums on and off racks, pallets, trucks, etc;

Equipped with VARTA maintenance-free battery

Lift an upright drum and place in horizontal position;


Specifications:
Model YL350
Rated Load Capacity kg 350
Drum Size 55 gallon (Ф572×900) steel
Wheel Size mm Ф80x55 (Front) Ф150x50 (Rear)
Inside/Outside Width of Support Leg mm 640 (inside) 800 (outside)
Turning Radius mm 1500
Pump Station Power Kw/h 1.5
Battery Ah/V 120Ah/12V
Lifting Height mm 1250 (upright drum) 2000 (horizontal drum)
Lifting Speed mm/s 120
Overall size mm 1250x840x2200
Net weight kg 410
