Feature:

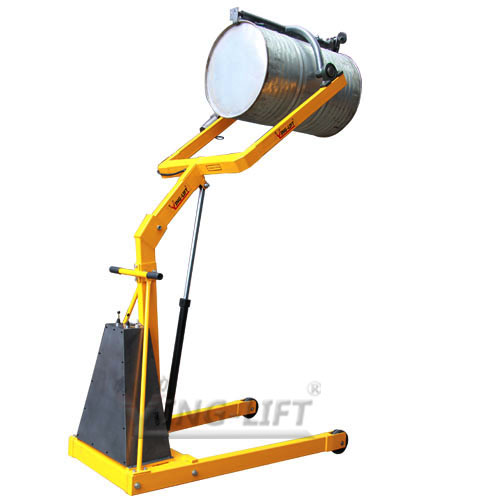

Electric Hydraulic Drum Rotator YL300

* Safe drum handling requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage.

* Heavy-Duty Hydra-Lift Drum Rotator combine incredible strength with simple drum handling by one person.

* With this Electric hydraulic drum Karrier, you can lift a steel or plastic drum, and turn it 360 degrees in either direction to pour up to 72inch/1830mm high.

· Master cylinder increase capacity and add stability

· Parallel legs provide a compact footprint

· Durable steel wheels and swivel casters travel smoothly under heavy load

· Step-down floor lock holds unit in place while dispensing drum


Specifications:
Model YL300
Rated Load Capacity kg 300
Drum Size 55gallon(Ф572×900) or 80gallon(Ф800×900) 210L
plastic or steel drum
Inside/Outside Width of Support Leg mm 800 (inside) 930 (outside)
Turning Radius mm 1750
Pump Station Power Kw/h 0.8
Battery Ah/V 100Ah/12V
Lifting Height mm 1950 (upright drum) 2050 (horizontal drum)
Lifting Speed mm/s 120
Overall size mm 1570x1070x1490
Net weight kg 220
