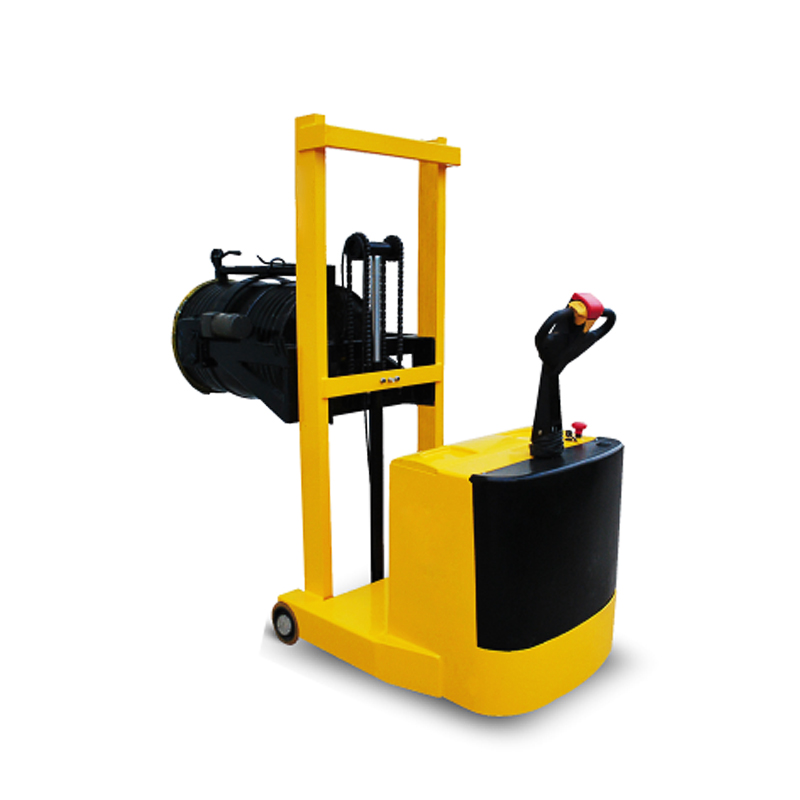

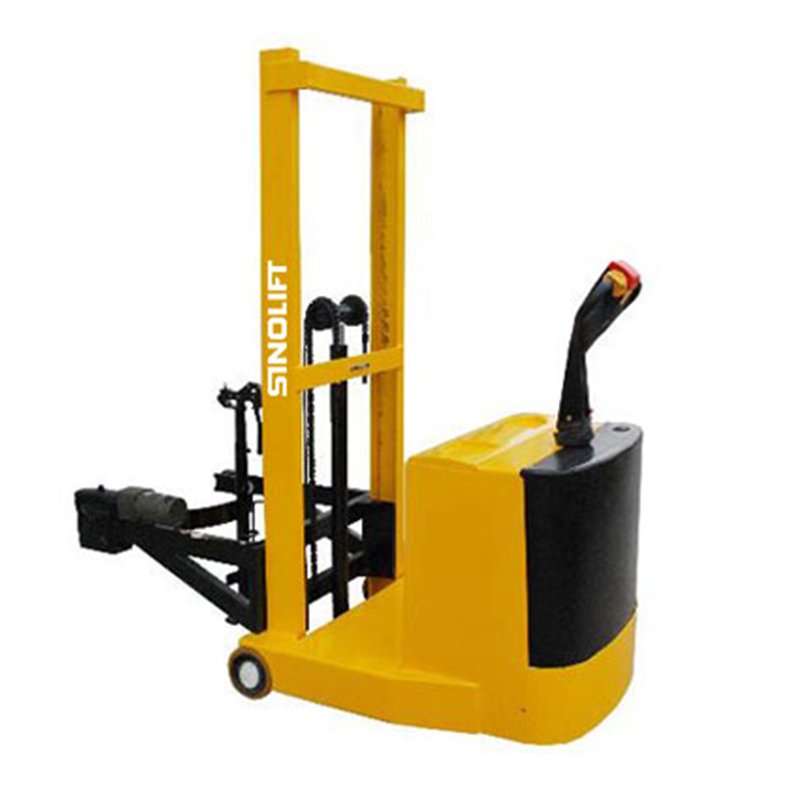

Name:EC0.5 Electric Counter-Weight Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Provide III Area explosion proof refit
Drum can tilt 360 degree (forward/backward)to pour materials out with power.
high performance imported hydraulic pump
high quality automatic and intelligate quick handle
optional part:large capacity power traction battery

optional part:stand on type pedal


Specifications:
Model EC0.5B-16 EC0.5B-20 EC0.5B-25 EC0.5B-30
Operating type Full Electric
Load Capacity kg 500
Load Center mm 500
Lifting Height mm 1600 2000 2500 3000
Drum Size mm φ600×900
Rotating Angle ° Front/Back 180
Overall Length mm 1950
Overall Width mm 940
Drive Speed (laden/unladen) km/h 4/5
Min. Turning Radius mm 1650
Drive Wheel size mm φ250×80
Load Wheel Size mm φ180×80
Balance Wheel Size mm φ100×50/55
Wheel Materials PU
Brake Electromagnetic
Drive Motor kw 0.75
Lifting Motor kw 2.2
Rotating Motor kw 0.3
Battery v/ah 24/120
Charger v/a 24/15
Gradeability % 5~8
Service Weight kg 750-990
