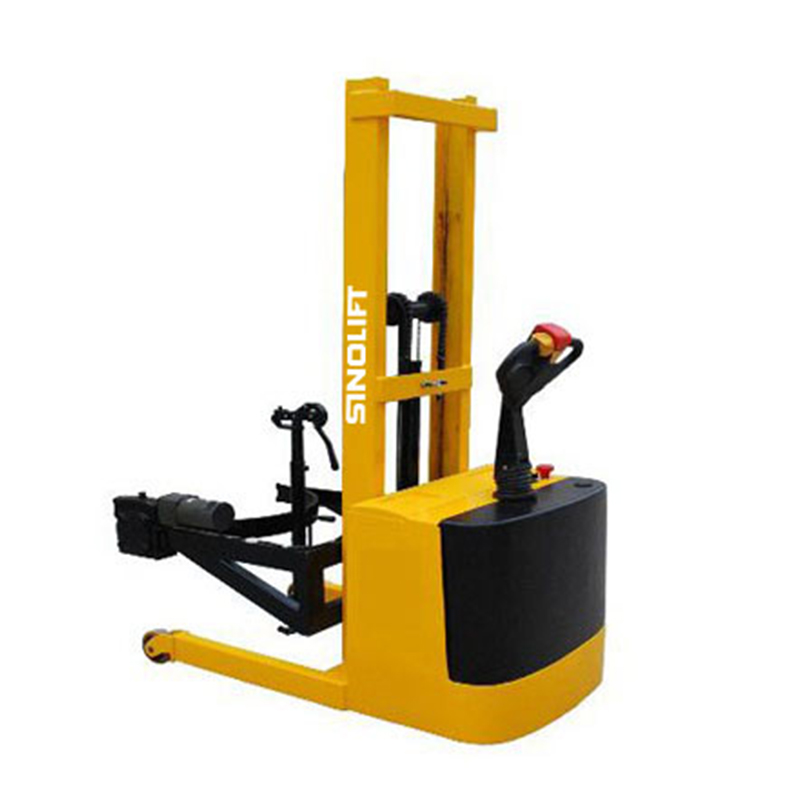

Name:EQ0.5 Full Electric Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Provide III Area explosion proof refit
Drum can tilt 360 degree (forward/backward)to pour materials out with power.
high performance imported hydraulic pump
high quality automatic and intelligate quick handle
optional part:large capacity power traction battery
optional part:stand on type pedal

Specifications:
Model EQ05
Drive mode electric
Drive pedestrian/standing
Rated capacity kg 500
Load center distance mm 500
Lift height mm 1600/2000/2500/3000
Mast static height mm 2080/1580/1850/2080
Oil drum size mm ø600X900
Oil drum turn angle front/rear ° 180/180
Overall length mm 1750
Overall width mm 940
Turning radius mm 1570
Travel speed laden/unladen km/h 4/5
Max gradeability laden/unladen % 5/8
Drive wheel size mm ø250*80
Support wheel size mm ø125*50
Balance wheel size mm ø100*50/55
Wheel material Polyurethane
Service brake electromagnetic
Drive motor power kw 0.75
Lift motor power kw 2.2
Turning motor power kw 0.3
Sound level at driver’s ear db(A) <70
Battery voltage/capacity V/Ah 24/120
Charger V/A 24/15
N.W kg 550-690
