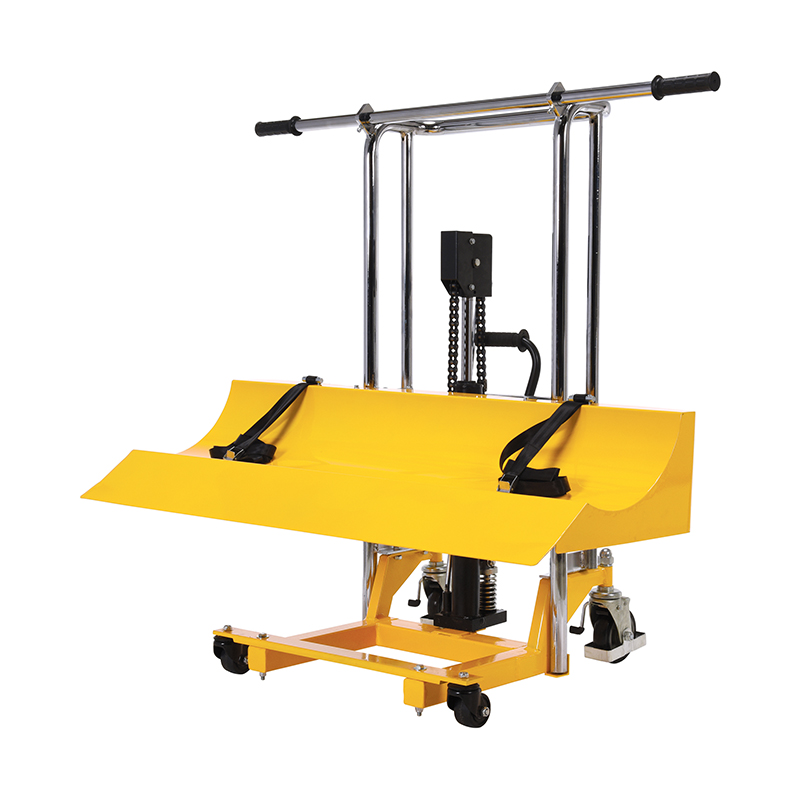

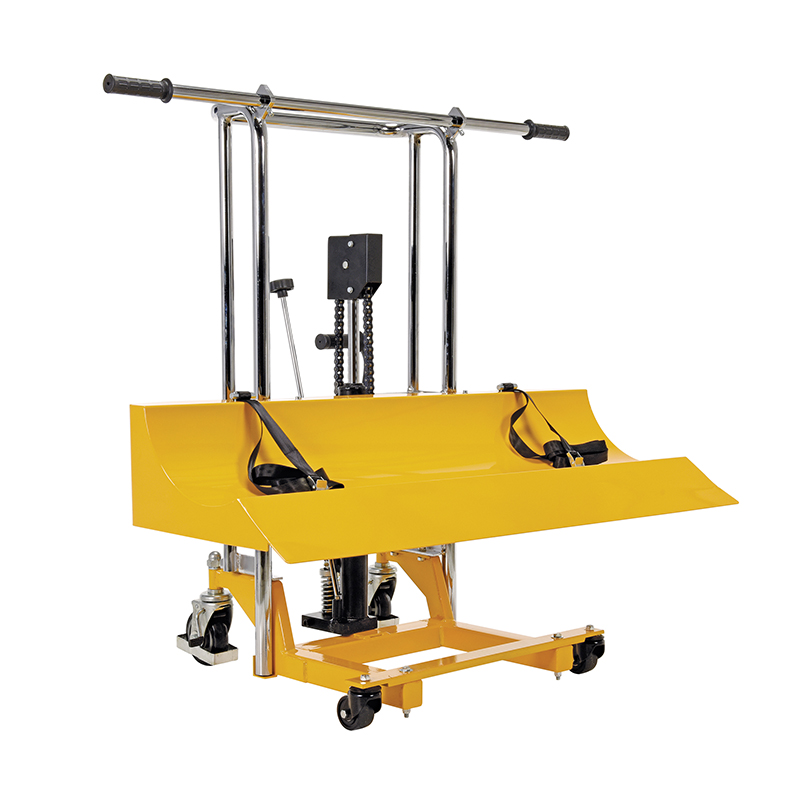

Name:Sinolift PFR3050L PFR4025 PFR4050 Roll & Reel Hydraulic Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
 Roll Handling Pallet Truck
 Triangular Forks Stacker
 Shaft Rod Handling Trolley
 V-shape Plate Handling Trolley
 Arc Panel Roll Handling Trolley
 The roller conveyor Handling Trolley
 Clamp Gripper Handling Trolley
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Roll Lifter and Transporters allow single users to maneuver heavy duty rolls onto the lifter and then directly onto the printer feeder. Extended nylon strap provides leverage to help guide the roll into the trough and ensure materials are secured for transport. Concave trough design of the media tray stabilizes rolls for transit. Foot pump allows for smooth and effortless lifting. Heavy duty swivel casters in both front and rear allow the user to maneuver through standard doors and narrow passages.
Specifications:
Model number PFR3050L PFR4025 PFR4050
Export code 61574 61584 61586
Rated deadweight kg 300 400 400
Load center mm 350 350 350
Minimum height mm 83 108 108
Lifting height mm 850 850 850
Maximum diameter of drum mm 400 400 400
Maximum length of drum m 5 2.5 5
Carriage size (L x W) mm 1116x855 800x800 1200x800
Vehicle dimensions (L x W x H) mm 918x1116x1200 808x800x1196 808x800x1196
Front wheel specification (PU wheel) mm Φ75 Φ75 Φ75
Rear wheel specification (PU wheel) mm Φ125X40 Φ125X40 Φ125X40
Minimum pallet height 88 100 100
Net weight kg 90 80 85
