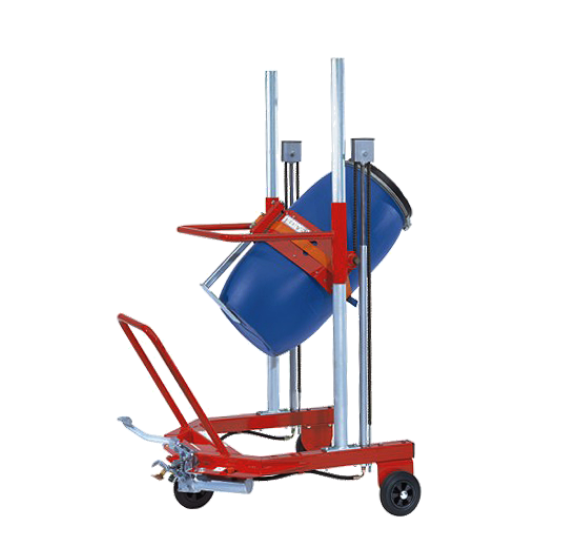

Name:WB30A Manual Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
  • Efficient Rotation: The 360° chain wheel design allows for easy full rotation of the drum, making it suitable for various working environments.
  • Manual and Pedal Lifting: Combining manual and pedal operation, the lifting process is more flexible, adapting to diverse operational needs.
  • Durable and Sturdy: Constructed from high-quality materials, ensuring long-term durability and stability of the equipment.
  • Easy Mobility: Equipped with high-performance wheels for convenient movement between different work locations.
Specifications:
Model WB30A
Capacity/kg 300
Drum Size/mm 30~55 gallon steel(Φ450x700-Φ572x900)210L plastic
Flipping way 360°chain wheel
Lifting way  Manual&Pedal
Vertical Height /mm 1300
Horizontal Height/mm 1500
135°Tilting Height/mm 1350
Leg inner Width/mm 720
Wheel/mm Φ200/Φ150
Overall Size/mm 1360x1030x2190
Net Weight/kg 132
Previous:03 DA450-1 Manual Hydraulic Drum Dumper with ScaleNext:DA450W Manual Hydraulic Drum Dumper with Straddle LegReturn
