Products – Drum Dumping Equipment

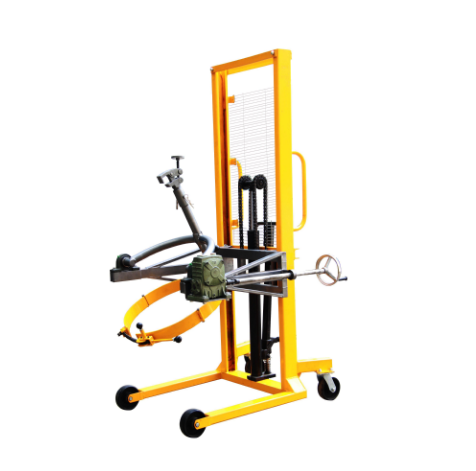

Name:DA450 Manual Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Single-stage vertical-lift drum pourers allow you to pour a drum up to 150 cm high.

2. Combined with Eagle-grip structure and Anchor ear structure, is can be used for dumping both of 55 gallon steel drums 210L rimmed plastic drums.

3. Manual lift with manual drum tilt.

Specifications:
Model DA450
Rated capacity kg 450
Max. lifting height mm 1500
Drum size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Drum tilting (electric/manual) manual
With weighing scale yes/no no
Load rollers size mm Ø80x60
Steering wheel size mm Ø150x50
Width of leg (Inner/Outer) mm 640/810
Leg Length mm 770
Overall size (LxWxH) mm 1160x1000x2100
Net weight KG 170
Previous:HD80AQ Mechanical Drum DumperNext:03 DA450-1 Manual Hydraulic Drum Dumper with ScaleReturn
