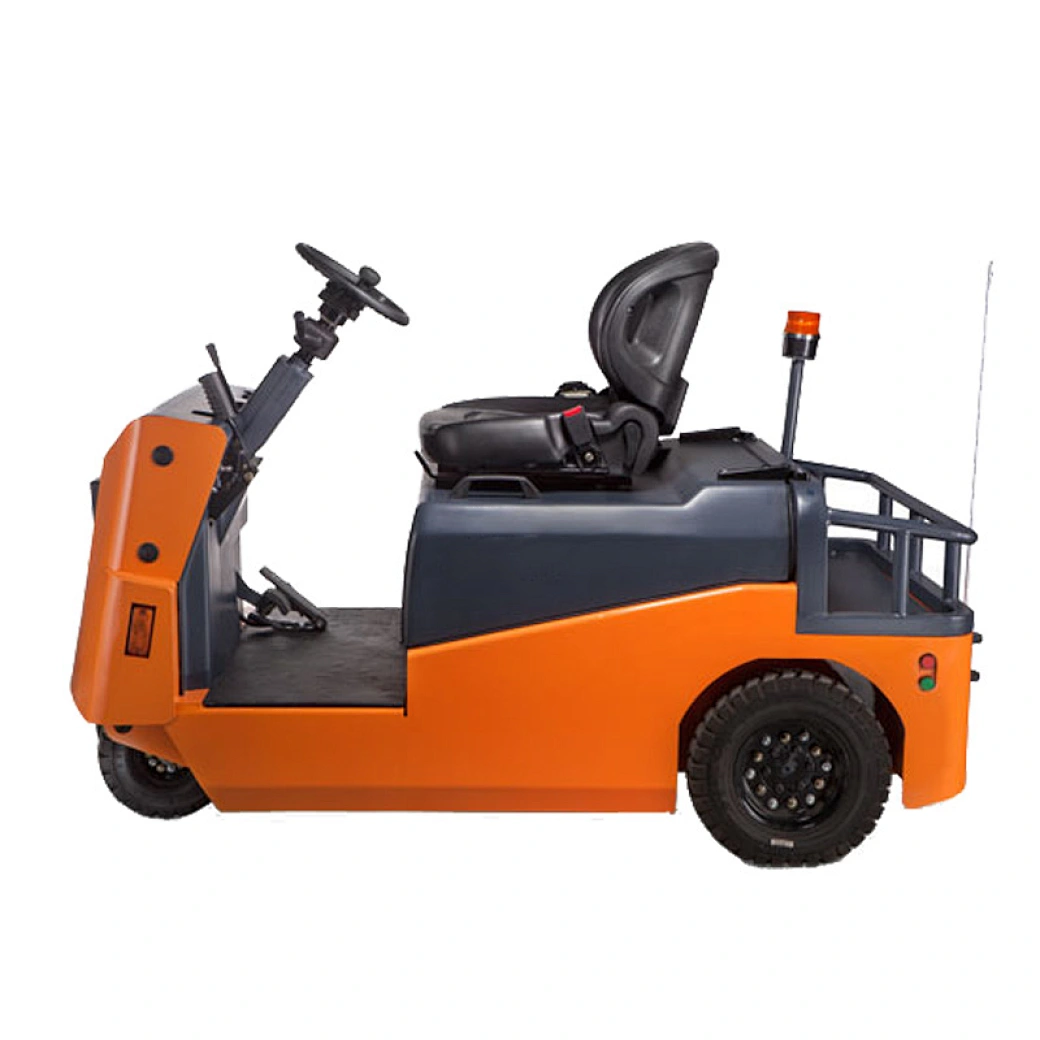

Name:Powerful Electric 4Ton QD40XT Tugger Forklift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The SINOLIFT QD-40XT are perfect for moving components in production facilities or other indoor/outdoor towing work.

1. Wheelbase provides a tight turning radius and control in confined work environments for maximum maneuverability

2. Rear bridge drive unit provides this 4 ton tow tractor with excellent power and gradeability.

3. Ergonomically designed compartment allows easy operation of all controls and pedals to help reduce operators' fatigue.

4. This electric tow tractor is equipped with forward lever or reverse lever and floor-mounted accelerator pedal, which provide fast and easy direction control changes.

5. SINOLIFT 4 ton tow tractor is installed with heavy duty
suspension seat with arms, multi-angle back support, sliding base and safety belt. This can improve operators' comfort and safety.
6. Low step height allows for easy entry and exit.


7. Small-diameter steering wheel provides effortless steering of this electric tow tractor.


Specifications:
Manufacturer SINOLIFT
Manufacturer's type designation QD-40XT
Drive Battery
Operator type: hand, pedestrian, stand-on, seat-on, order-picker Seat-on
Load capacity/rated load Q (t) 4
Rated drawbar pull F (N) ≥F 1000
Wheelbase y (mm) ±1% 1231
Dead weight kg ±3% 783
Axle loading, unladen front/rear kg ±3% 279/504
Tyres Pneumatic tire
Tyre size, front Ø x w(mm) 3.50-5-6PR
Tyre size, rear Ø x w(mm) 4.00-8-6PR
Wheels, number front/rear (x = driven wheels) 1/2x
Tread , front b10 (mm) ±2% 245
Tread , rear b11 (mm) ±2% 744
Height of overhead guard(cabin) h6 (mm) ±1% 1232
Seat height relating to SIP/stand height h7 (mm) 816/412
Coupling height h10 (mm) ±2% 283/333/358/408
Overall length l1 (mm) ±1% 1876
Overall width b1/b2 (mm) ±1% 860
Ground clearance, centre of wheelbase m2 (mm) -5% 92
Load dimension b 12 × l 6 crossways b 12 × l 6 (mm) 1447
Turning radius Wa (mm) ≤Wa 1590
Travel speed, laden/unladen km/h ± 10 % 7月13日
Drawbar pull,laden/unladen N 1000
Max. drawbar pull, laden/unladen N 4000
Gradeability, laden/unladen % 5.6/14
Service brake Hydraulic
Drive motor rating kW 4
Battery according to DIN 43531/35/36 A,B,C,no Special case
Battery voltage/nominal capacity V/Ah 24/280
Battery weight kg 285
Type of drive control AC
Noise dB (A) < 70
