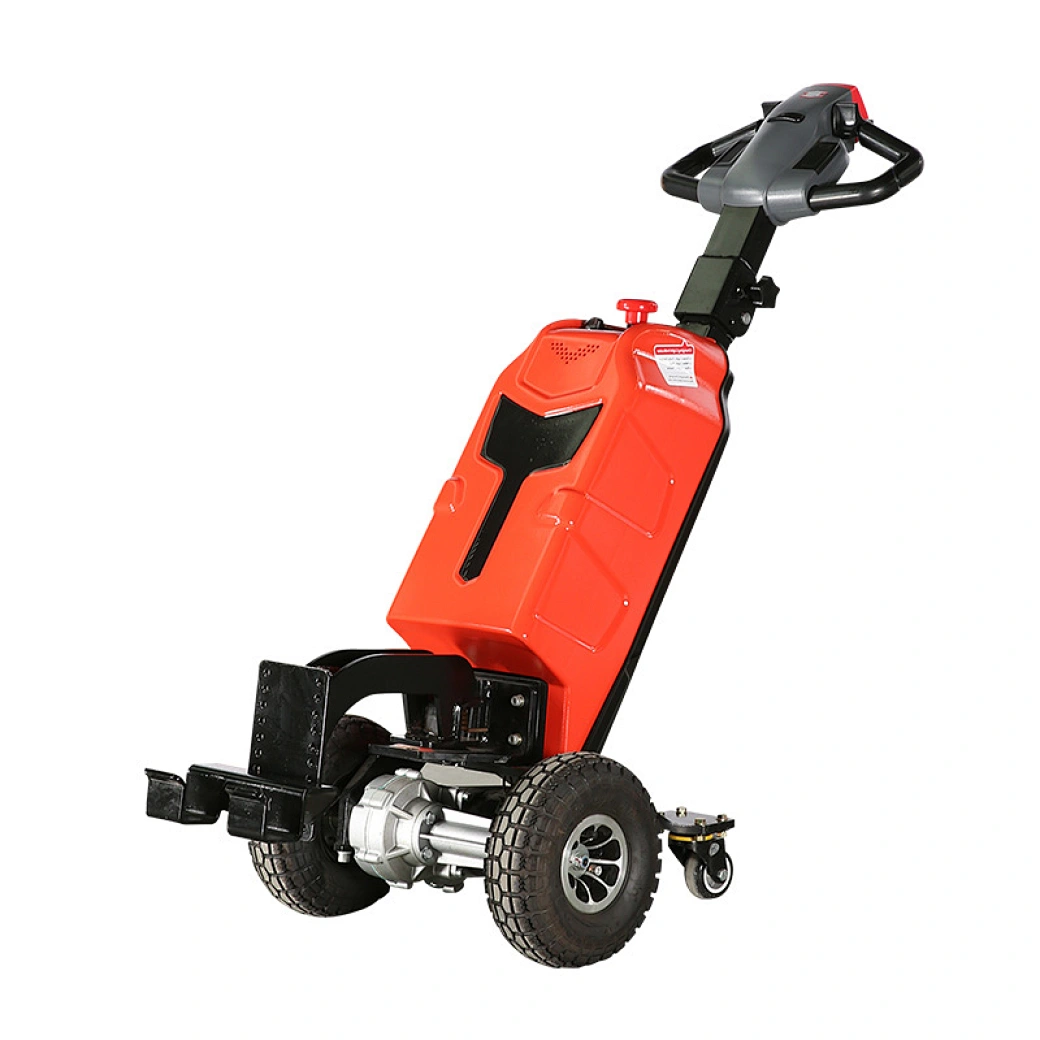

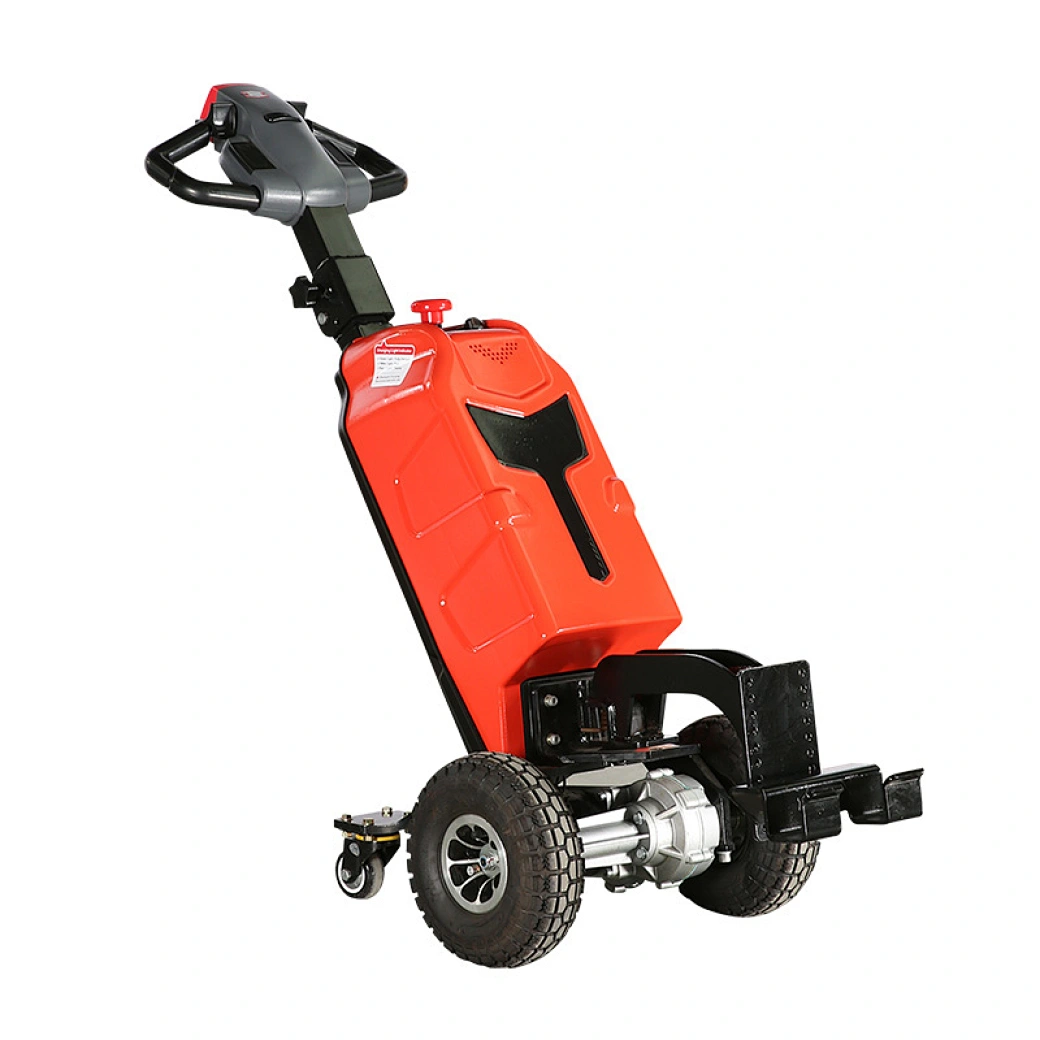

Name:QDD10 Electric Mini Tow Tractor
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

With its compact design it was designed for narrow aisles in warehouses or production. At a self-weight of only 95Kg and a capacity of 1000Kg, the QDD10 tow tractor can climb slopes up to 3%.


With its 250mm diameter pneumatic tyres, the QDD10 is ready for a variety of operations. It does not matter if you are using the tow tractor on flat ground in the warehouse, or on uneven floors or outdoors, the QDD10 towing tractor will safely bring your trolleys to their destination.

1.Very easy to connect the hook to the object in an instant with almost no effort;
2.Travel speed 0-6.5km/h, stepless speed control, smooth/controllable speeds;
3.Electrically powered with built-in charger, low battery protection setting;
4.Rubber pneumatic drive wheel with alternative tread patterns and material specifications;

Specifications:
Model QDD10
Drive unit Electric
Type of operation Pedestrian
Load Q(kg) 1000
Self weight kg 95
Tire type rubber tire
Drive wheel size (mm) 2x250x85
Universal wheel size (mm) 2x75x32
Drive track b10(mm) 520(outermost)
Universal wheelbase b11(mm) 268(outermost)
Dimensions(non-operating state ) mm 1255x520x1070
Dimensions(working condition ) mm 1185x520x1135
The maximum allowed size battery mm 196/165/175
Type of drive unit DC
Steering type CURTIS
