Products – Electric tow Tractor and Tugger

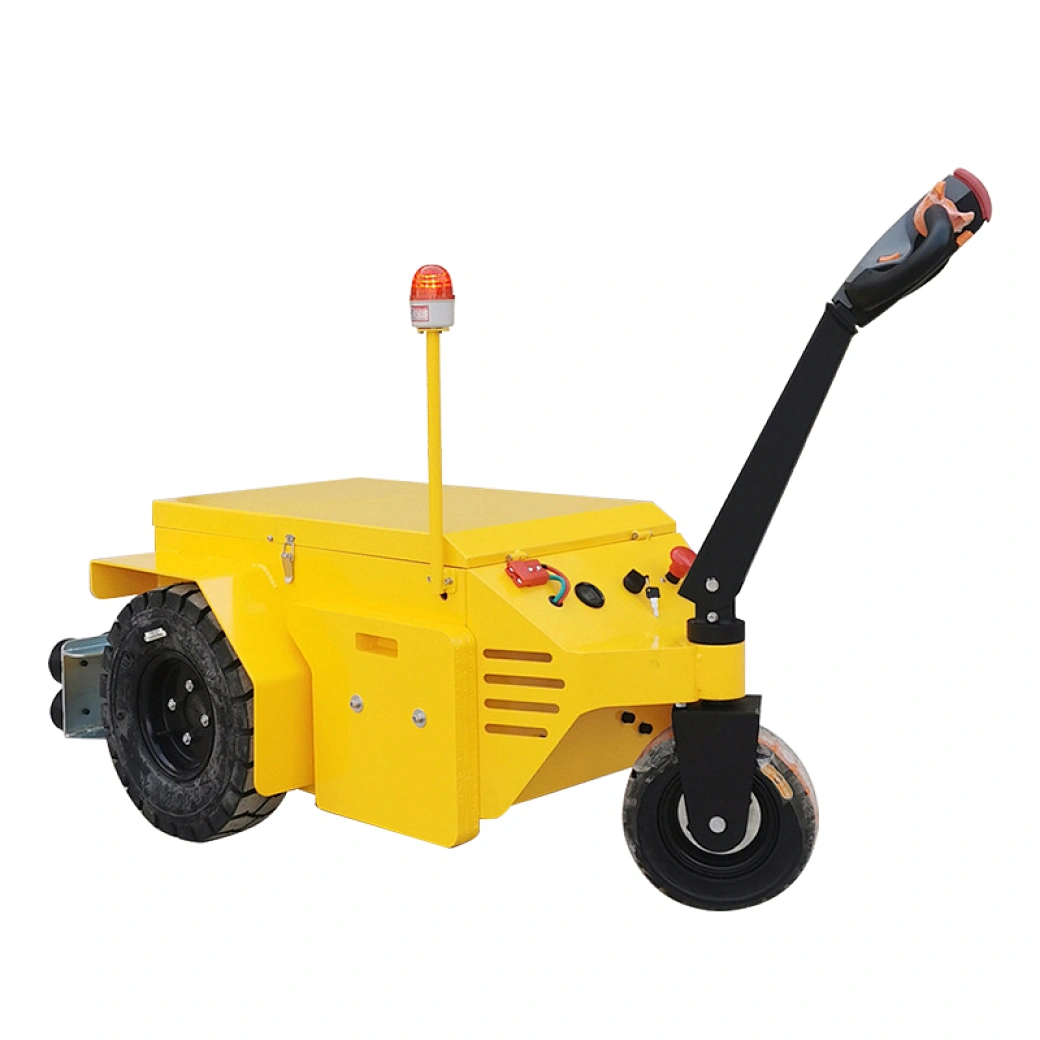

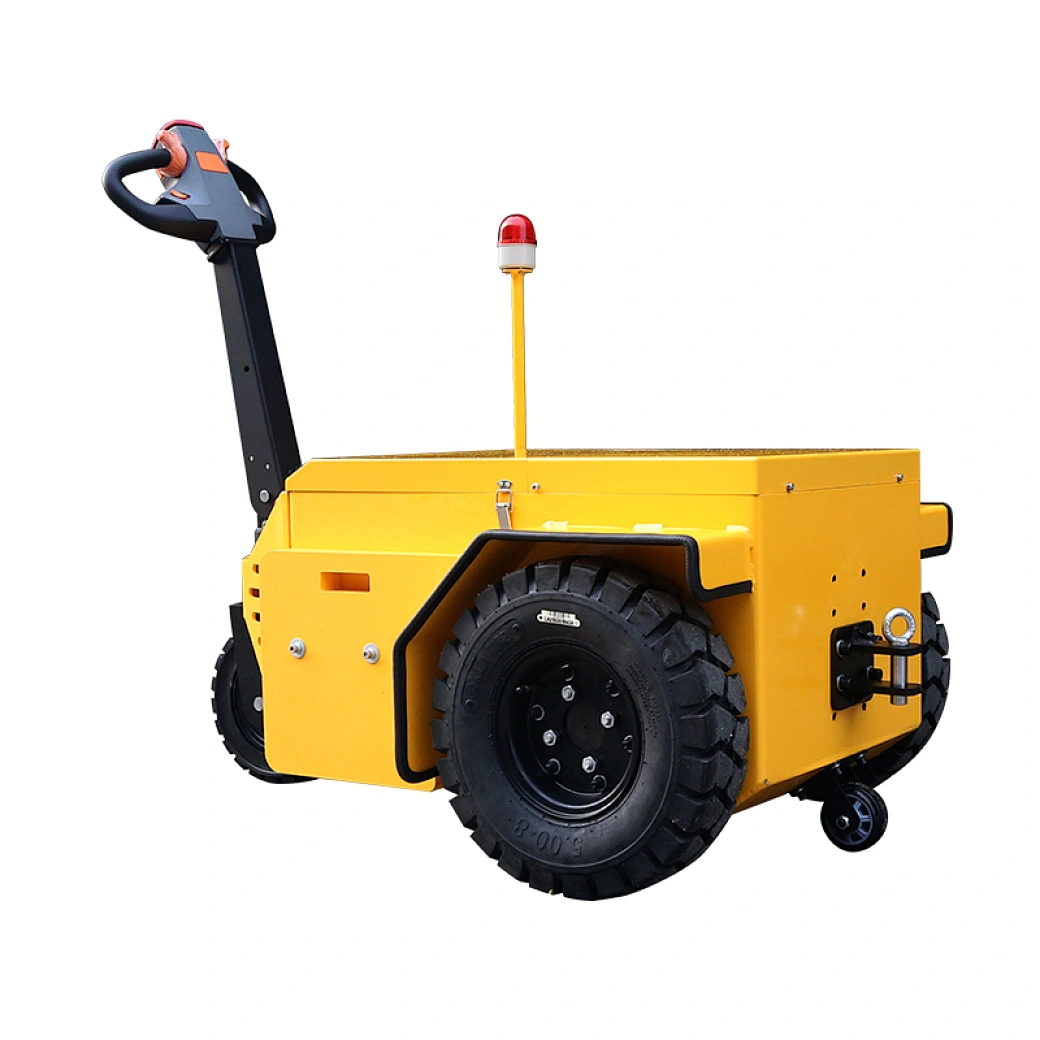

Name:ML600 ML800 ML1000 electric tuggers
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

These electric tuggers are normally used for heavier load applications or heavy-use applications.  This may include heavy loads, industrial applications, trailer towing, aircraft towing, and similar electric power tugger needs.

The ML TOW electric tug is perfect for safely towing loads where weight transfer is not possible, up to 22,000 lb.

The Moto-Tugger ML is an ergonomically-designed motorized tow vehicle used to pull a variety of single or multiple carts in a safe and efficient manner with very little effort from the operator. Numerous standard hitch types are available to suit a wide variety of applications. Alternatively, we can customize the hitch plate to suit your specific requirements. The tug is self-weighted and compact, providing excellent traction for effortless load towing whilst attaching to any load with a draw bar, towing eye or ball hitch fitting. It can be used inside or outside, including on slopes and less than perfect surfaces.


Specifications:
Model ML600-DC ML600-AC ML800-AC ML1000-AC
Power supply Electric
Operating type Walking style
Max traction weight kg 6000 6000 8000 10000
Rated pulling force N 1800 1900 2300 2900
Truck weight(with battery) kg 550 550 620 680
Tire type,Drive wheel/Bearing wheel Rubber
Overall height mm 1275 1275 1275 1275
Height of tiller in drive position mm 950/1200 950/1200 950/1200 950/1200
Hook height mm 235/285/335 235/285/335 235/285/335 235/285/335
Overall length mm 1595 1595 1595 1595
Overall width mm 850 850 850 850
Ground clearance mm 100 100 100 100
Turning radius mm 1320 1320 1320 1320
Drive speed load/unload km/h 2.5/3.5 2.5/3.5 2.5/3.5 4/3
Rated pulling force N 1800 1900 2300 2900
Max pulling force N 2500 2600 2900 3500
Max gradeability load/unload % 45420 45420 45420 45420
Drive motor rating S2 60min V/kw 24/2.2 24/2.2 24/2.5 48/3.0
Charger (external) V/A 24/30 24/30 24/30 48/15
