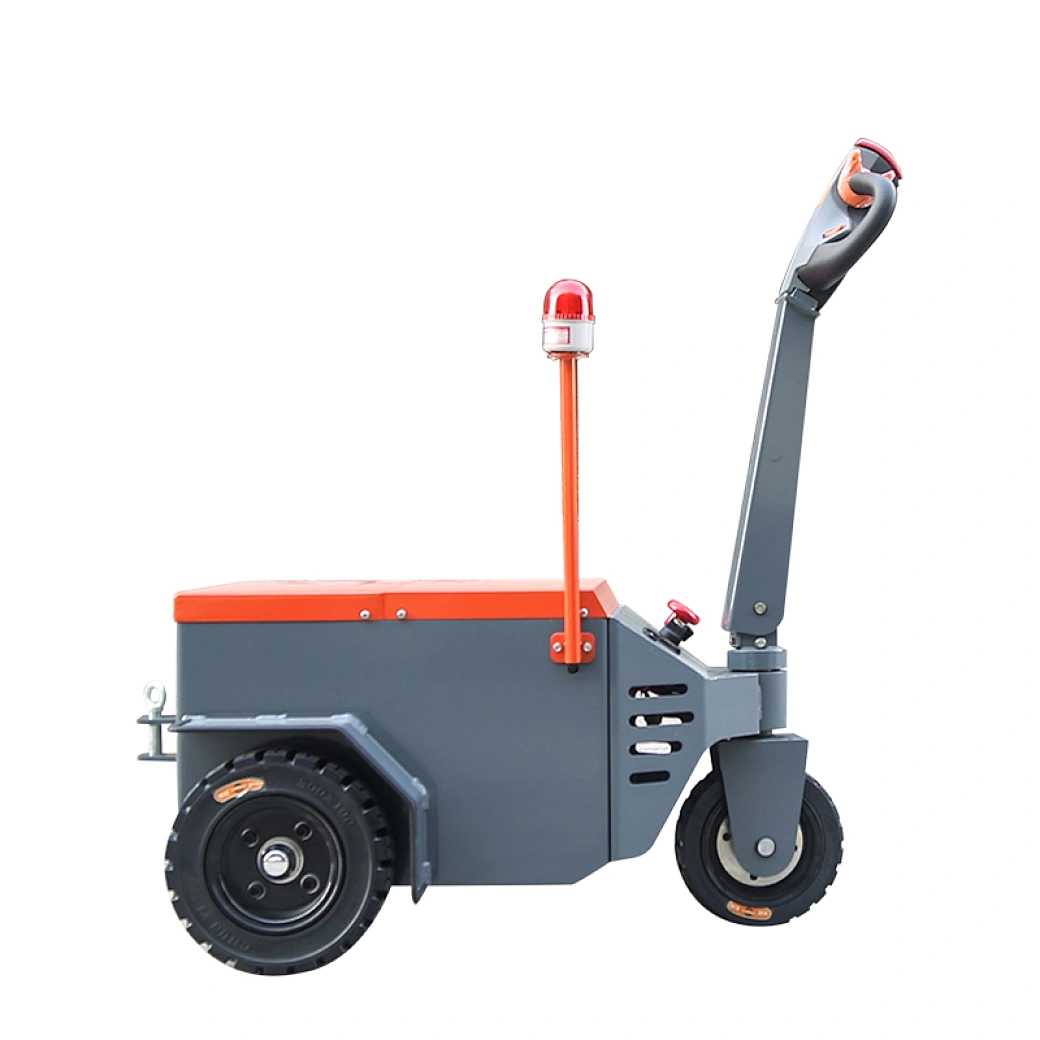

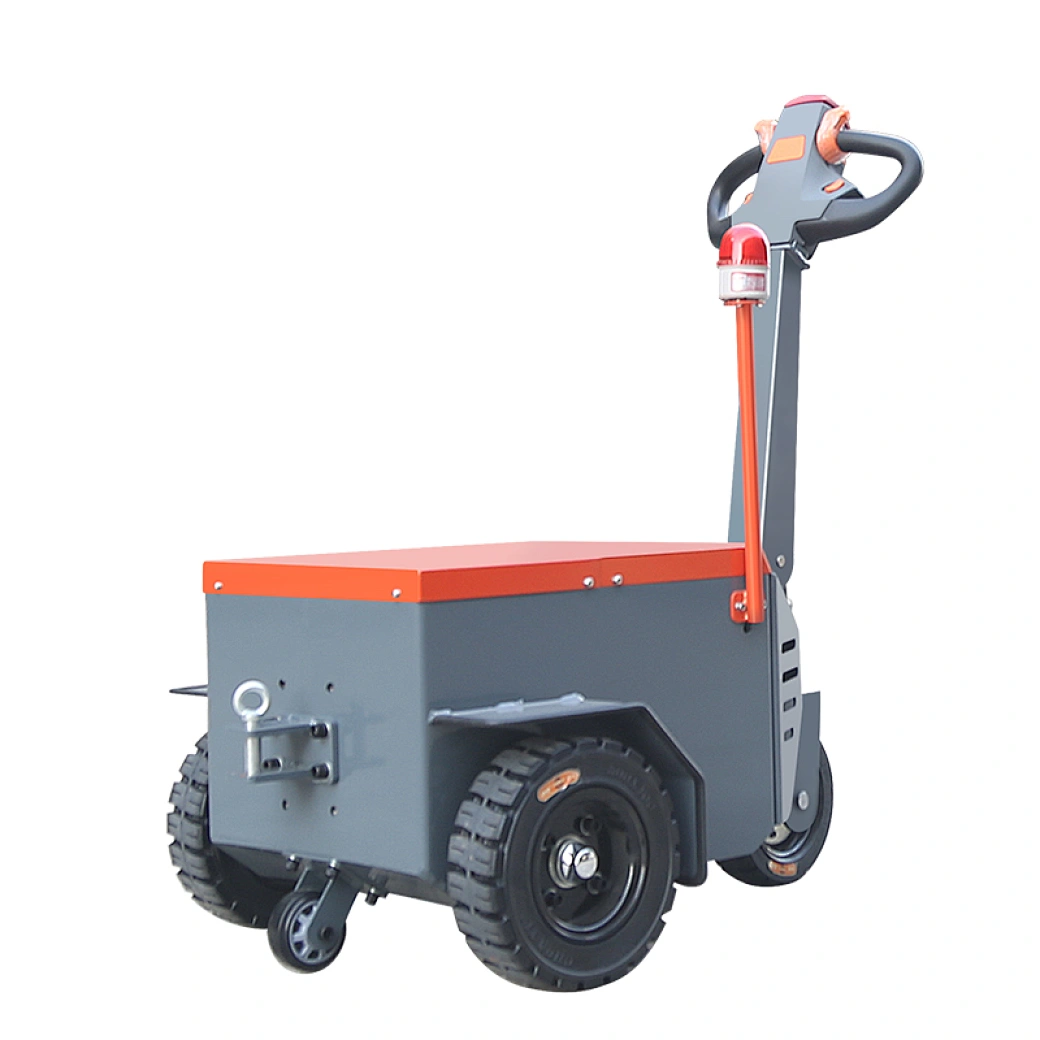

Name:ML200A ML350A ML450A Electric Tow Tugger
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

As the ML TOW is a self-weighted unit, it is the ideal electric tow tug for applications where weight transfer is not possible and with the addition of anti-slip, puncture-proof tires and supporting castors, operator safety is maintained at all times.

The ML TOW is a versatile and compact electric tow tugger, which can be fully customized and built to perform at its best in your workplace environment. Various couplings, additional safety features and machine options are available.

Specifications:
Model ML200A ML350A ML450A
Power supply Electric Electric Electric
Operating type Walking style Walking style Walking style
Max traction weight kg 2000 3500 4500
Rated pulling force N 700 1100 1300
Truck weight(with battery) kg 230 350 390
Battery weight kg 54 70 70
Tire type,Drive wheel/Bearing wheel Rubber/PU Rubber/PU Rubber/PU
Overall height mm 1190 1225 1225
Height of tiller in drive position mm 900/1190 950/1225 950/1225
Hook height mm 240/340 235/285/335 235/285/335
Overall length mm 1165 1270 1270
Overall width mm 695 803 803
Ground clearance mm 100 100 100
Turning radius mm 850 1080 1080
Drive speed load/unload km/h 4~5 2.5~3.5 2~3
Rated pulling force N 700 1100 1300
Max pulling force N 900 1500 1800
Max gradeability load/unload % 10 10 5
Drive motor rating S2 60min kw 1.2 1.5 1.8
Charger (external) V/A 24/10 24/15 24/15
