Products – Electric tow Tractor and Tugger

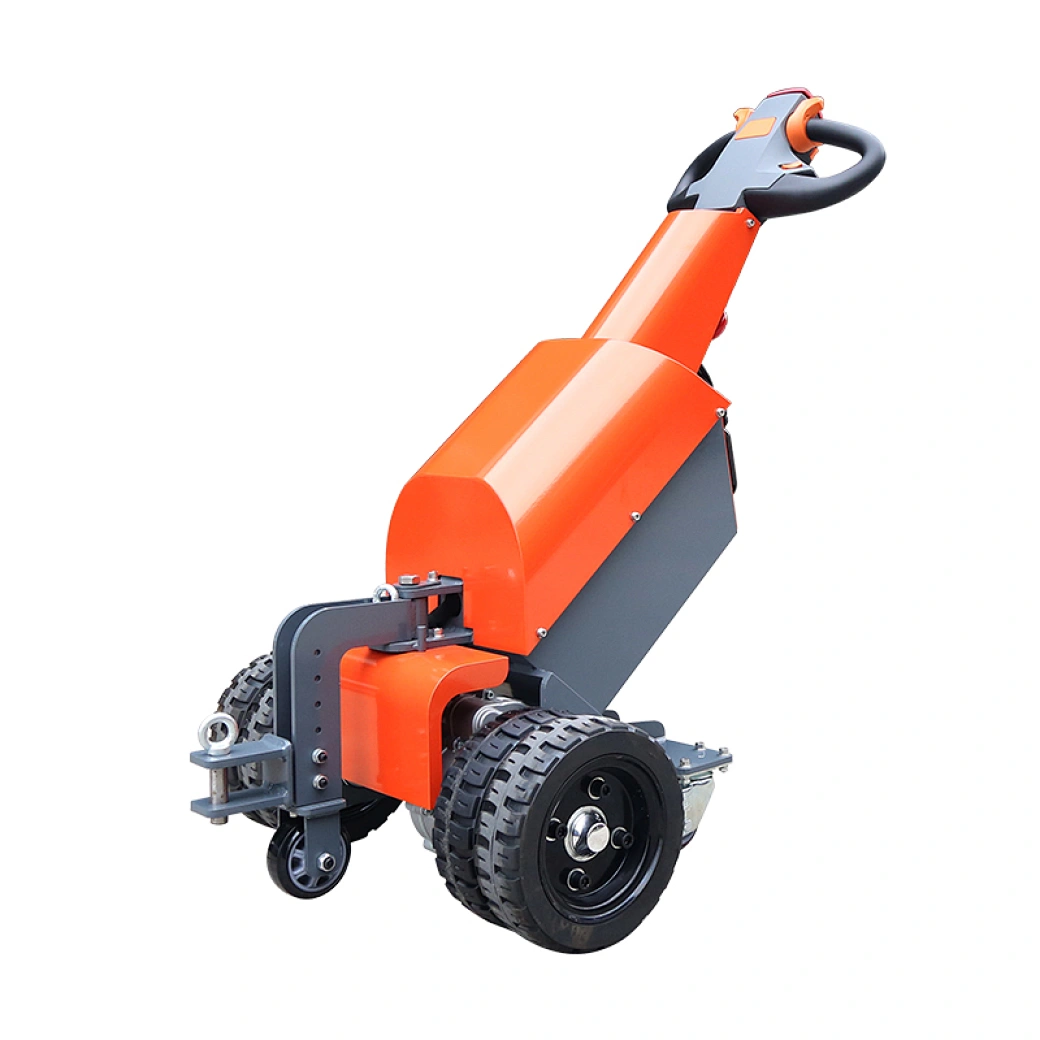

Name:ML100 ML150 Pedestrian Tow Tugger
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Unique ergonomic handle design adjusts to a wide range of user heights.

Award winning control design, provides the user with variable speed forward and reverse control from 0 to 4 km per hour, power on/off switch, color battery charge level indicator, automatic sleep mode to conserve battery power when not in use, emergency stop button, and horn. Front mounting plate accommodates a wide range of standard and custom hitches.

Specifications:
Model ML100 ML150
Power supply Electric Electric
Operating type Walking style Walking style
Max traction weight kg 1000 1500
Rated pulling force N 300 500
Truck weight(with battery) kg 105 115
Battery weight kg 15 15
Tire type,Drive wheel/Supporting wheel Rubber/PU Rubber/PU
Overall height mm 1075 1075
Height of tiller in drive position mm 1010 1010
Hook height mm 170/290 170/290
Overall length mm 1080 1080
Overall width mm 510 680
Ground clearance mm 100 100
Turning radius mm 780 800
Drive speed load/unload km/h 3~4 3~4
Rated pulling force N 300 500
Max pulling force N 500 750
Max gradeability load/unload % 5 5
Drive motor rating S2 60min kw 0.8 1
Charger (external) V/A 24/10 24/10
