Products – Electric tow Tractor and Tugger

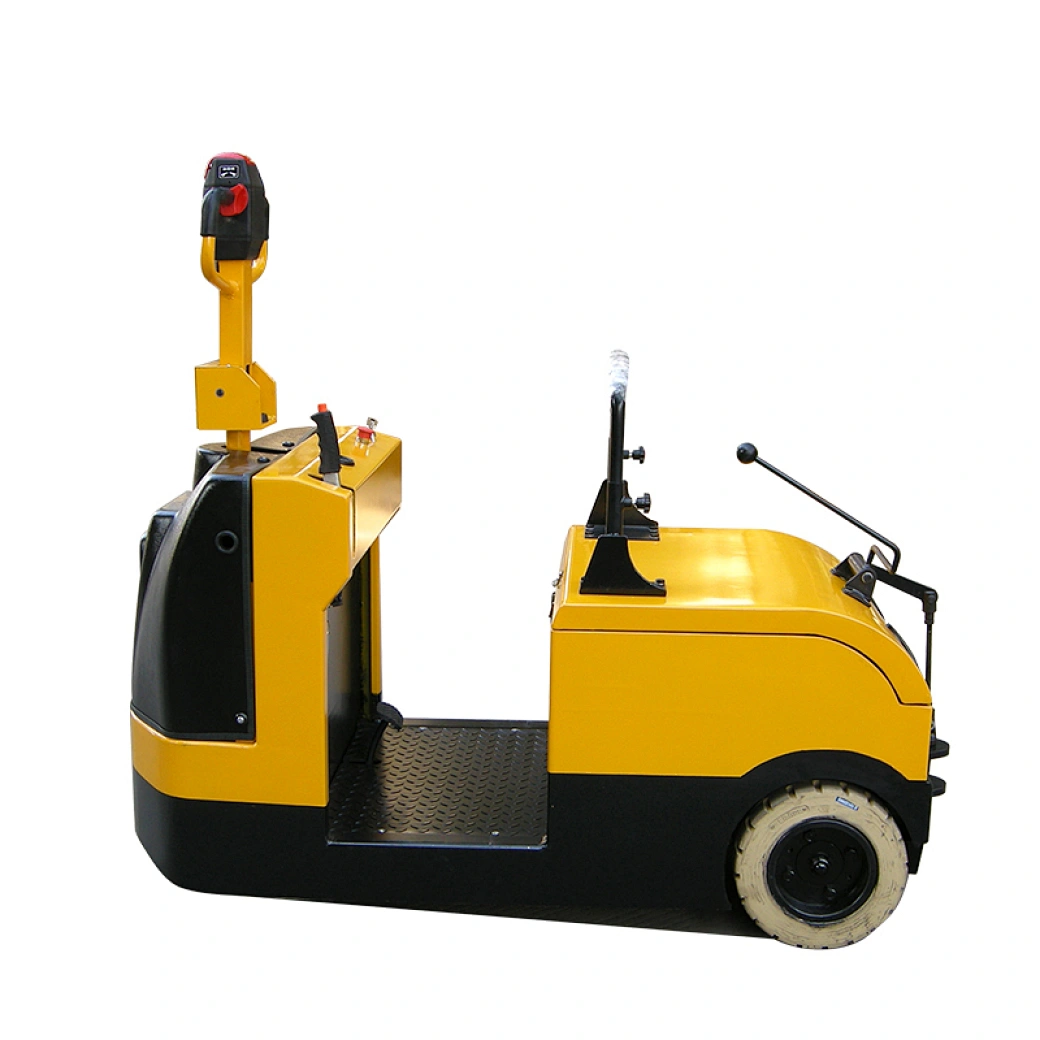

Name:Flexible QD-30SH 3-fulcrums Stand-on Electric Tow Tractor
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product description:

1. Unique appearance and luxurious appearance

2. It adopts imported ac control technology, with excellent performance, reliable and high efficiency, which extends the working time of the vehicle and makes the battery life longer

3. The ac motor is maintenance-free and can achieve high torque output and high speed performance at high speed and high speed, especially the electric braking performance at high speed

4. High torque, strong climbing ability, strong traction and strong power

5. It has the function of turning to active return, turning to a light, flexible and easy to deal with the logistics and transport work in a narrow site

6. Easy operation. Simple, safe, smooth, comfortable and efficient


Specifications:
Model No. QD-30SH
Towing Capacity kg 3000
Driving Motor W DC-24V-2000W
Battery D-300A 24V
Driving Speed km/h 7
Controller Type MOSFET
Working Time Hours 6
Min. Turning Radius mm R 1380
Operation Type Stand-on
Min.under-clearance mm 85
Steering Wheel mm White RubberΦ267x127
Drive Wheel mm Φ330x165
Overall length mm L 1490
Overall width mm W 820
Overall height mm H 1350
Service Weight kg 1450
