Products – Electric tow Tractor and Tugger

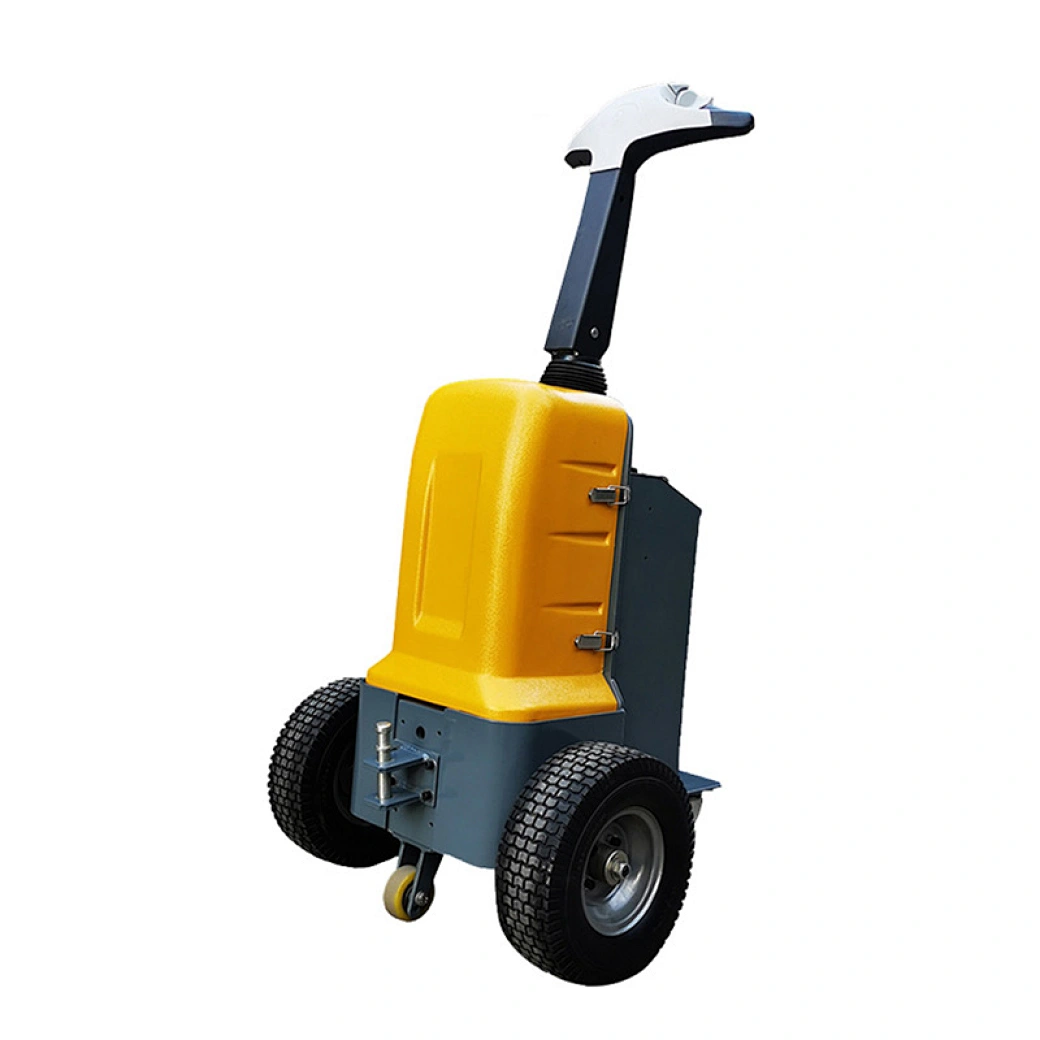

Name:Stable ETM15 Walkie Electric Pusher and Tugger
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Features

·         Use for logistics handling and traction in hospitals, factories, aviation, and other fields to facilitate different traction requirements.

·         Man-machine integrated control handles flexible in operation with many functions.

·         Maintenance-free battery and permanent magnet traction motor provide greater traction power.

·         Stable product performance, compact size, flexible operation, noise free, environmental protection, easy maintenance.

·         US imported Curtis computer controller for greater torque, faster speed, higher reliability, better thermal performance, and smoother acceleration.


Specifications:
Model ETM100 ETM150
Drive unit Battery Battery
Operator type pedestrian pedestrian
Load capacity Kg 1000 1500
Rated drawbar pull N 450 650
Wheelbase mm 650 345
Battery V/AH 24V/70AH 36V/70AH
Charge V/AH 24V/10A 36V/15A
Drive motor V/AH 24V/800W 36V/1200W
Drive wheel mm φ300x115mm φ310x136mm
Rear wheel mm φ100x32mm φ100x32mm
Unload speed Km/h 7km/h 7km/h
Load speed Km/h 6km/h 6km/h
Load gradability % 5% 5%
Unload gradability % 10% 10%
Weight Kg 128 162
