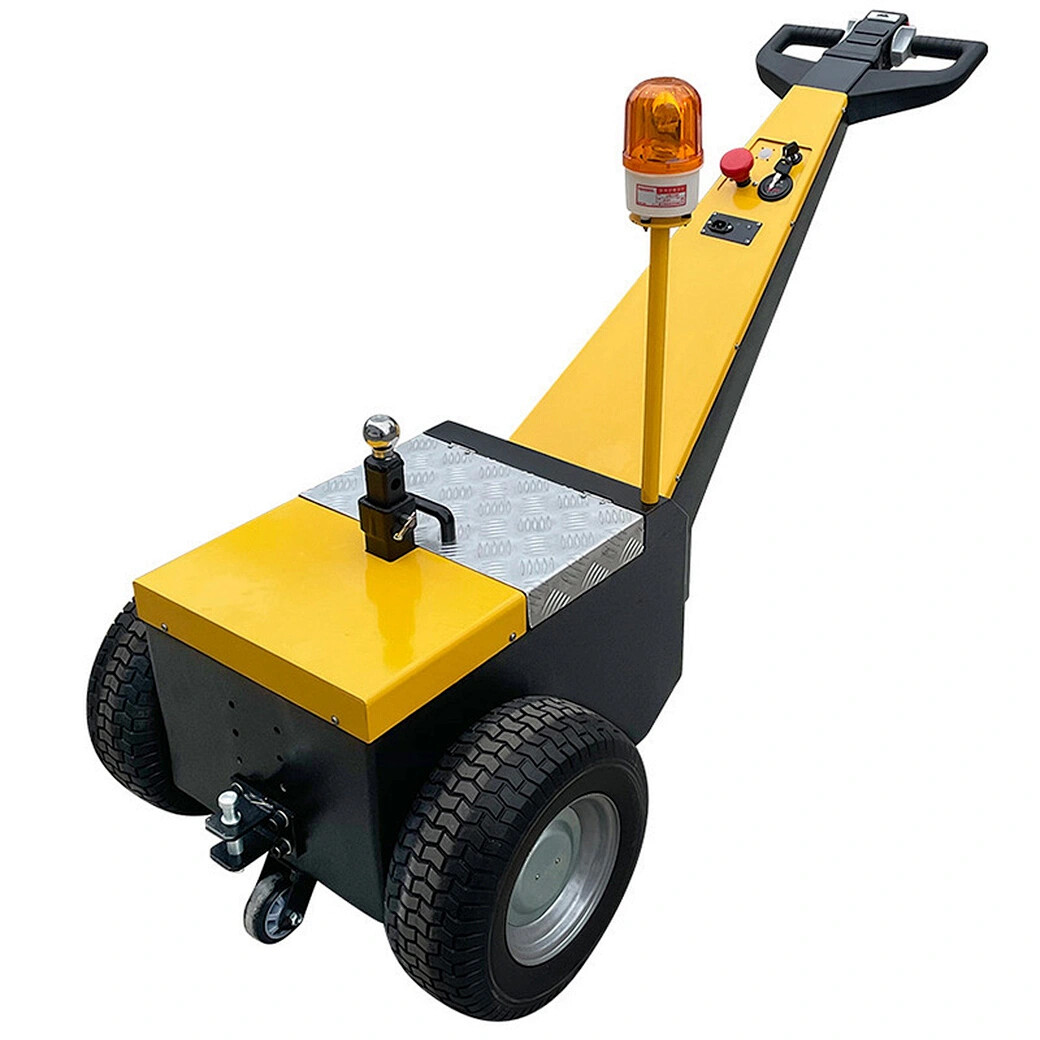

Name:ETP Walkie Electric Tugger Forklift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Features:

1. Use for logistics handling and traction in hospitals, factories, aviation and other fields to facilitate different traction requirements.

2. Man-machine integrated control handle flexible in operation with many functions.

3. Maintenance-free battery and permanent magnet traction motor provides greater traction power.

4. Stable product performance, compact size, flexible operation, noise free, environmental protection, easy maintenance.

5. US imported Curtis computer controller for greater torque, faster speed, higher reliability, better thermal performance and smoother acceleration.


Specifications:
Model ETP-150 ETP-250 ETP-350 ETP-450 ETP-600 ETP-800
Power form electric
Operation type Walking
Load kg 1500 2500 3500 4000 6000 8000
Drive wheel size mm φ310x115 φ406x150 φ375x115 φ450x125 φ450x125 φ450x125
Bearing wheel size mm φ200x50 φ150x50 φ125x50 φ200x50 φ300x100 φ300x100
Battery V/Ah 24V/70Ah 24V/100Ah 24V/120Ah 24V/120Ah 24V/120Ah 48V/120Ah
Charge V/A 24V/10A 24V/15A 24V/15A 24V/15A 24V/15A 48V/15A
Vehicle size(L*W*H) mm 1565*723*1160(940) 1735*760*1100(915) 1915*805*1230(1000) 1945*850*1270(1030) 1785*850*1080 1785*850*1080
Turning radius mm 1450 1500 1675 1715 1600 1600
