Products – Electric tow Tractor and Tugger

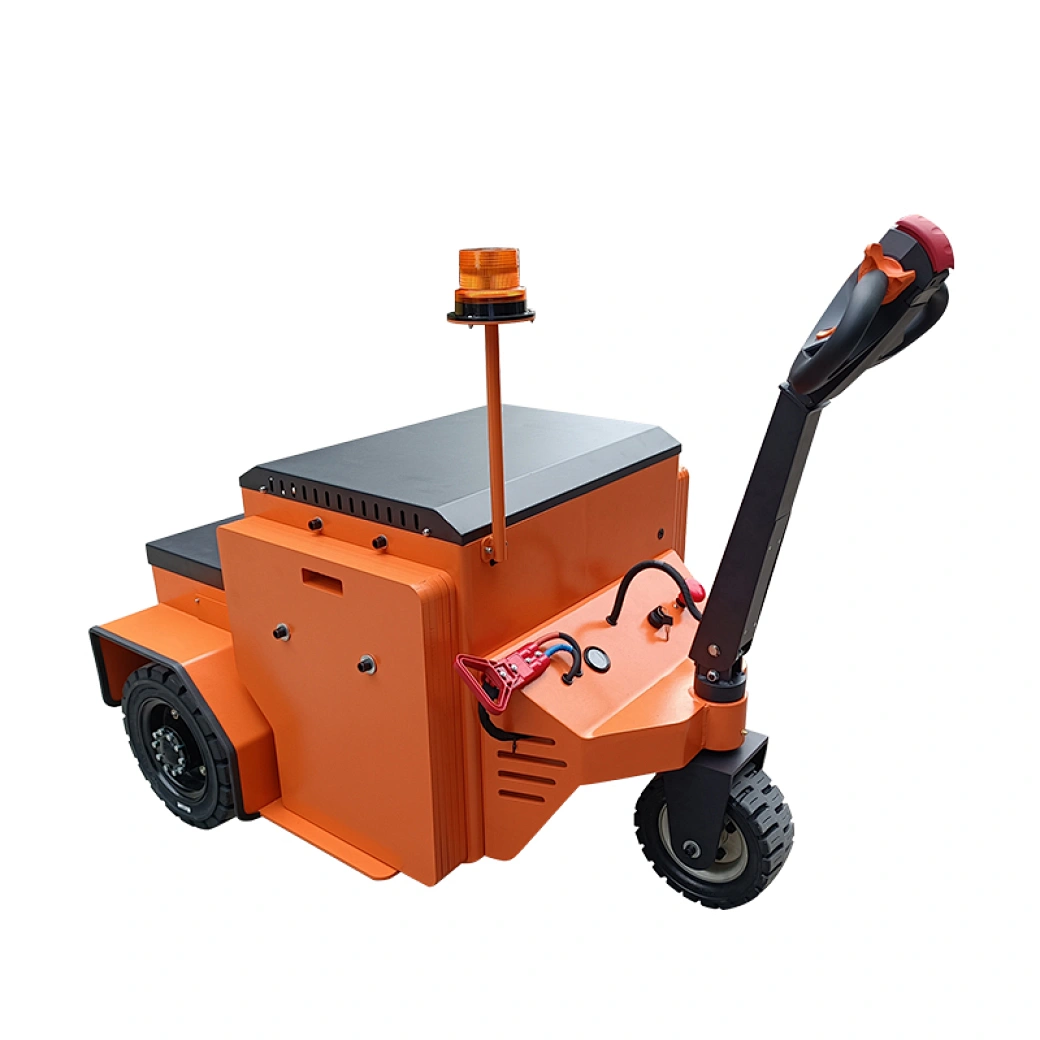

Name:ML1500L ML2000L ML3000L Walkie Electric Tractor
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Name

SINOLIFT Walkie Electric Tractor (Factory Direct Sale · One-Year Warranty · Quality Guaranteed)

Description

Heavy-duty electric traction, widely used in supermarkets, factories, hospitals, airports, docks for towing carts, luggage carts, or trailers, making transportation faster and more efficient.

1. Easily handles various surfaces such as speed bumps, wooden paths, gravel roads, ensuring smooth and convenient towing.

2. Powerful motor, single-person operation, strong load capacity, supporting weights of up to 15~30 tons. Solid rubber tires easily adapt to various grounds, allowing easy single-hand operation.

3. High-capacity lead-acid battery, safe and stable, providing 5-8 hours of continuous use.

4. Intelligent control panel with emergency stop switch, key switch, battery indicator, and external charging port, all clearly visible.

5. Customizable hitch options, with multiple hitch styles available.

Specifications:
Model ML1500L ML2000L ML3000L
Rated Traction Load kg 15000 20000 30000
Rated Traction Force N 6000 7000 9000
Wheelbase mm 980 980 980
Weight (including battery) kg 1000 1200 1350
Battery Weight kg 400 400 400
Drive Wheel Size (Diameter x Width) mm 2XФ375X115 2XФ375X115 2XФ400X150
Load Wheel Size (Diameter x Width) mm Ф280X127 Ф280X127 Ф280X127
Number of Drive/Load Wheels (X = Drive Wheels) mm 2X/1 2X/1 2X/1
Front Track, Drive End mm 460 460 460
Overall Height mm 1225 1225 1225
Handle Height at Operating Position mm 950/1200 950/1200 950/1200
Coupler Height Range mm 260/360/720 260/360/720 260/360/720
Overall Length mm 1560 1560 1560
Overall Width mm 1040 1040 1040
Minimum Ground Clearance mm 100 100 100
Turning Radius mm 1320 1320 1320
Travel Speed, Loaded/Unloaded km/h 2~3 2~3 2~3
Maximum Traction Force N 9000 10000 12000
Gradeability, Loaded/Unloaded % 2月5日 2月5日 2月5日
Drive Motor Rated Power (5260 min) V/kw 48/4.0 48/5.0 48/6.0
Charger (External) V/A 48/30 48/30 48/30
Battery Voltage/Nominal Capacity (K20) V/Ah 48/210 48/210 48/210
Battery Weight kg 400 400 400
Drive Control Type AC AC AC
Noise Level dB(A) <70 <70 <70
