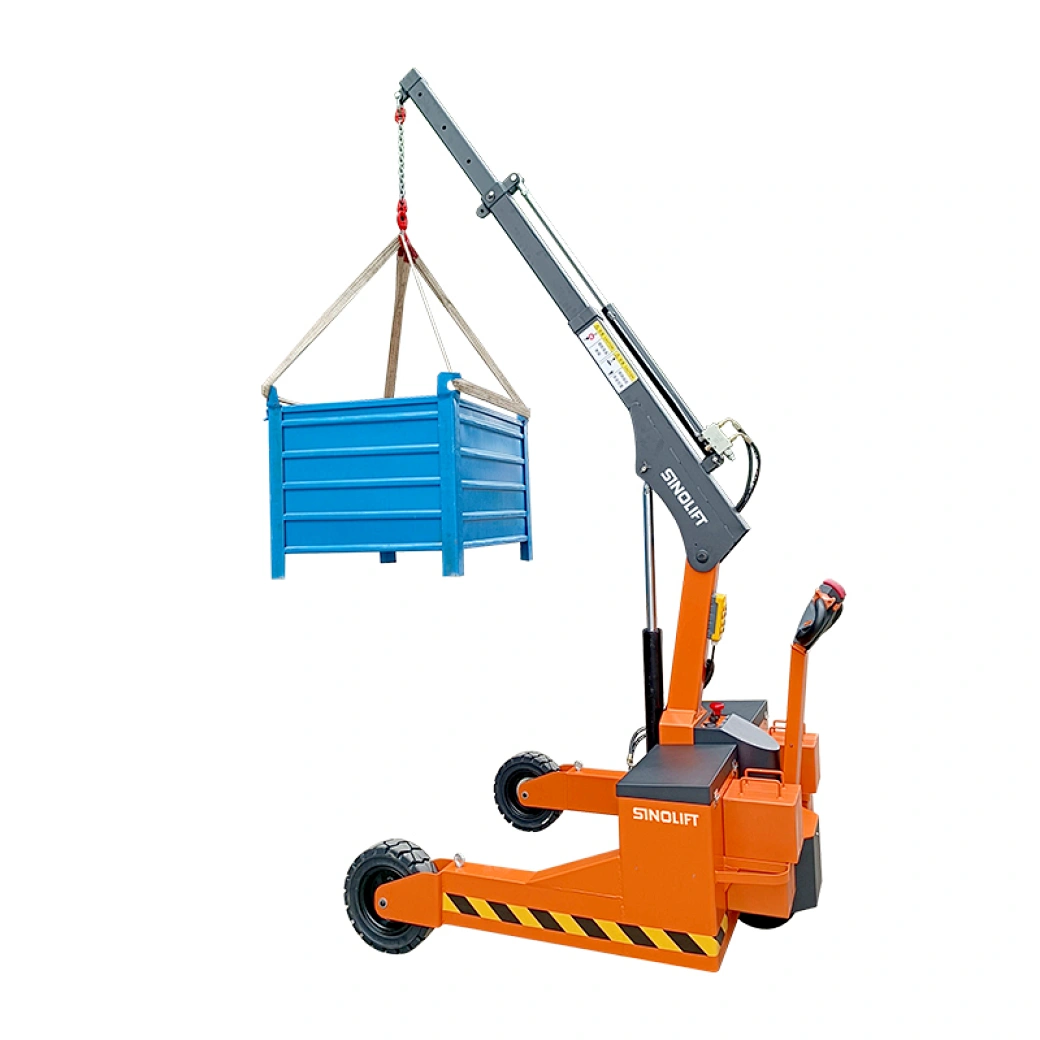

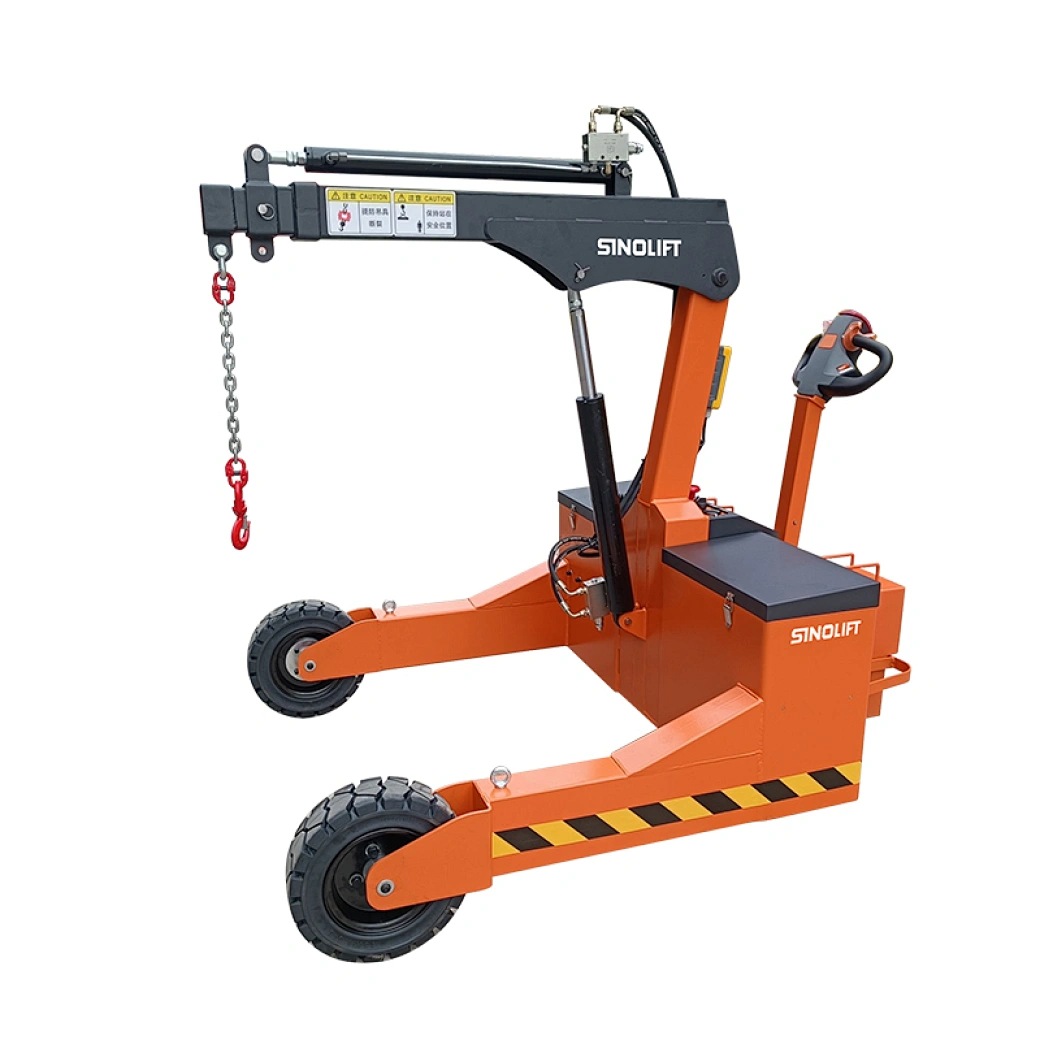

Name:ML120RTH Rough terrainElectric Shop Crane
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

This crane’s narrow chassis and 360º swivel platform, together with the hook precise positioning system, will make the work easier.

These counterweight cranes, originals by SINOLIFT, can be turned manually to left and right. Since the counterweight and jib turn together, the crane can directly face loads or machines at any angle, without losing load capacity.

Specifications:
<
Model
ML-120RTN
Capacity kg 1200
Rated pulling force N 300
Truck weight(with battery) mm 690
Overall height mm 1660
Height of tiller in drive position mm 1010
Lifting height mm 3200
Overall length mm 1775
Overall width mm 1335
Ground clearance mm 135
Turning radius mm 1790
Drive speed load/unload km/h 45356
Battery V/Ah 2*12/120
