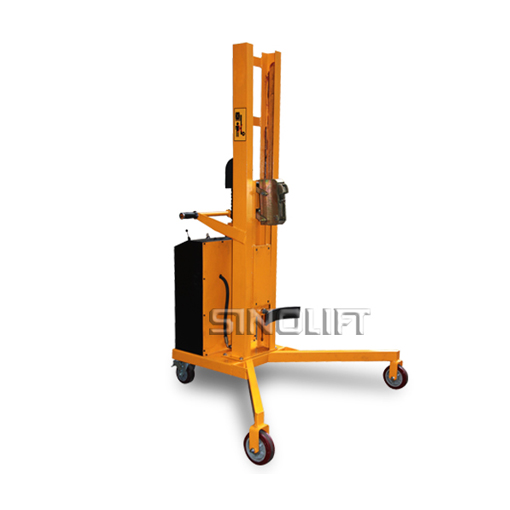

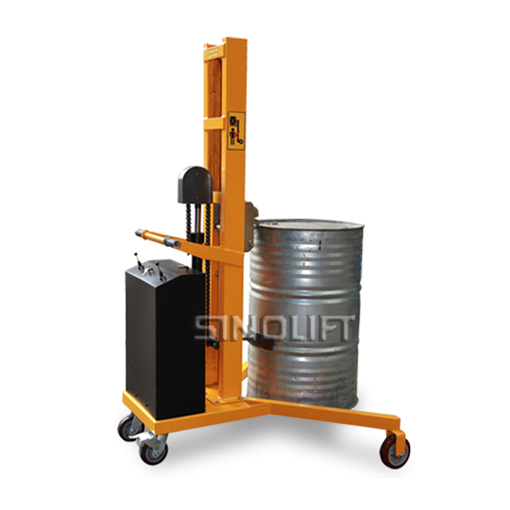

Name:DT300YL Electric Drum Handler
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Single-stage vertical-lift drum Stacker allow you to stacker a drum up to 1100mm high.

With power lift, 300kgs load capacity.

Application:Mainly used for chemical plants and food plants for transferring,

loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives,petrol and edible oils, etc.

Specifications:
Model DT300
Rated Load Capacity kg 300
Lifting Height mm 1100
Drum Size 55gallon(Ф572×900)or 80gallon(Ф800×900) 210L Plastic
Turning Radius mm 1230
Lifting Motor kw 0.8
Battery V/Ah 12/100
Lifting Speed mm/s 80
Wheel SizeFront/back mm Ø150x50 / Ø125x50
Overall Size (LxWxH) mm 1500x1350x1870
Net Weight kg 178
