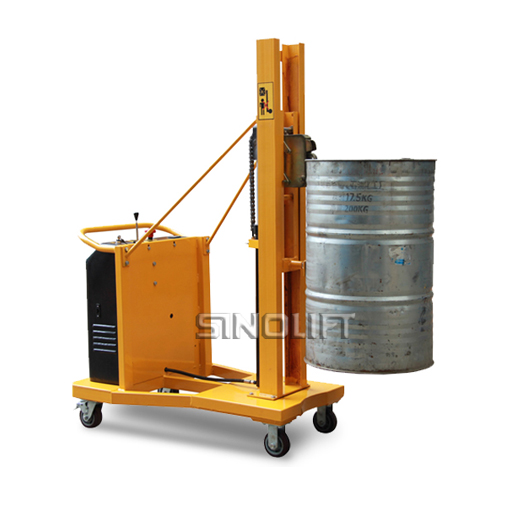

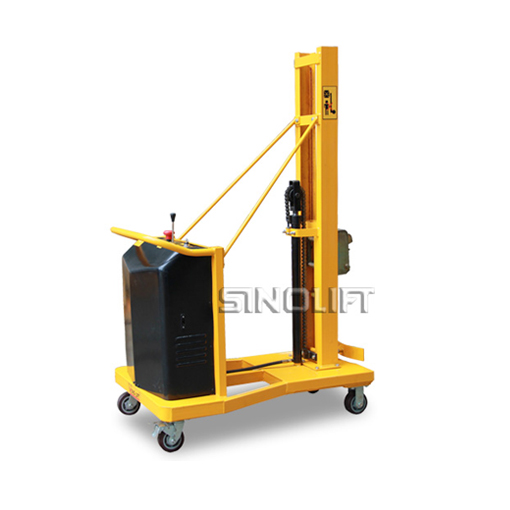

Name:DT280YL Counter Balance Electric Drum Handler
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Powered Drum Transporters eliminate injuries from manhandling drums.

Makes an easy task of transporting drums in and out of trucks, or up and down ramps or traveling over short distances.

Suitable for brimmed steel drum and plastic drums.

With VARTA maintenance-free battery;

Additional Options Available:

approved epoxy powder coating with stainless steel hardware.

Non-intrinsically Safe Scale with Indicator.

Adjustable clamping pressure with gauge

Specifications:
Model DT280
Rated Load Capacity kg 280
Drum Size 55gallon(Ф572×900)or 80gallon(Ф800×900) 210L Plastic
plastic or steel drum
Wheel Size mm Ø125x50
Turning Radius mm 1300
Pump Station Power KW/h 1.5
Battery V/Ah 12/120
Lifting Height mm 1050
Lifting Speed mm 120
Overall Size mm 1300x800x1880
Net Weight kg 270
