Feature:

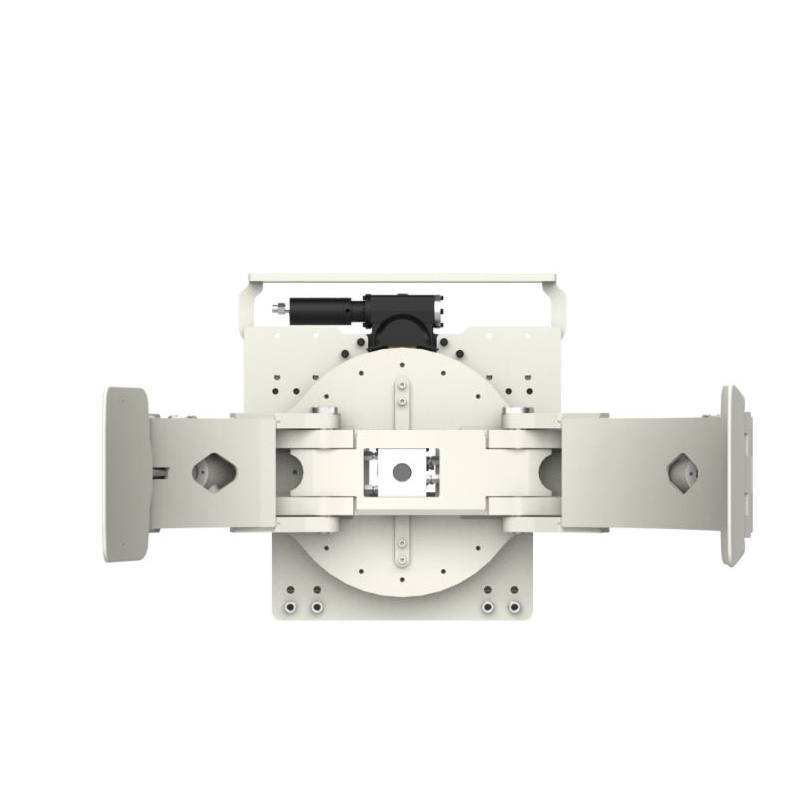

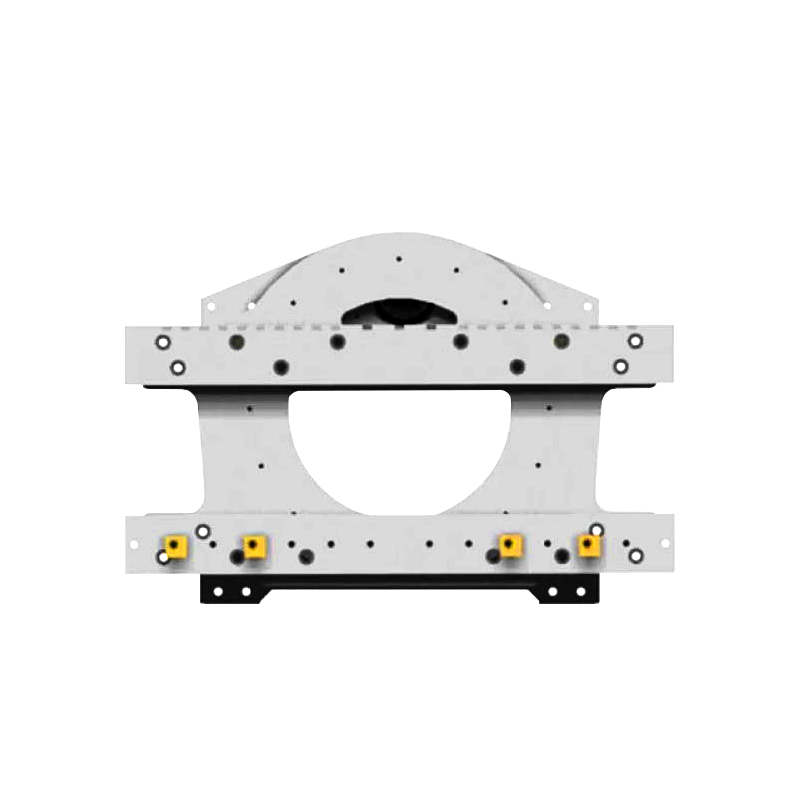

This is a 15E rotator driven by hydraulic power, designed for rotating goods or tilting containers in various applications such as machining, material recycling, and metallurgical casting. The device features a white and orange color scheme, with a central white circular ring surrounded by multiple holes for fastening or mounting additional components.



Product Advantages:

Hydraulic-driven rotation for convenient and efficient operation.

Suitable for goods rotation and container tilting tasks, enhancing work efficiency.

Complex mechanical assembly design with adjustability and stability.


Specifications:
CAPACITY@
LOAD CENTER
MODEL FORKLIF
MOUNTING
CLASS
FORK MOUNTING
CLASS

FRAM WIDTH

FORK MAX.
SPACING OTO
MIN.TRUCK
CARRIAGE WIDTH
VERTICAL
CENTER OF
GRAVITY

ACTUA WEIGHT

WEIGHT EFFECTIV
ETHICKNESS
HORIZONTAL
CENTER OF
GRAVITY
(kg@mm) B(mm) OTO(mm) (mm) VCG(mm) (kg) (kg) ET(mm) HCG(@mm)
1500@500 XZQ15E-B001 II II 730 645 800 280 193 198 133 63
1500@500 XZQ15E-B002 II II 800 715 800 282 195 205 133 62
1500@500 XZQ15E-B003 II II 930 825 800 276 205 205 133 88
1500@500 XZQ15E-B004 II II 1040 950 800 272 218 205 133 68
1500@500 XZQ15E-B008 II II 890 804 800 282 210 205 133 65
1500@500 XZQ15E-B005 II II 1100 1010 800 272 223 205 133 68
1500@500 XZQ15E-B006 II II 965 880 800 275 207 205 133 66
1500@500 XZQ15E-B007 II II 1400 1410 800 261 270 205 133 74
