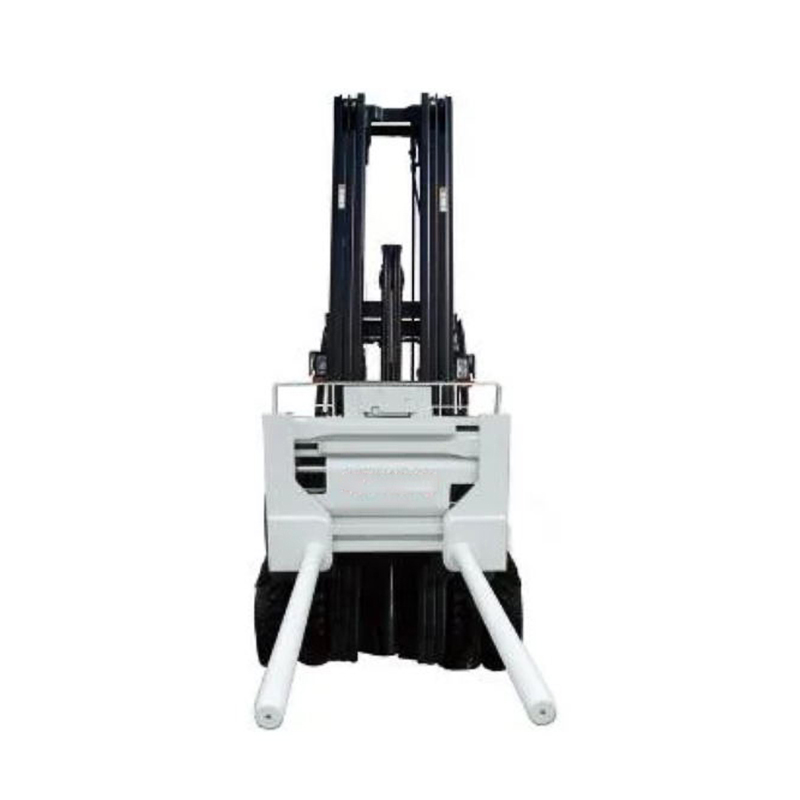

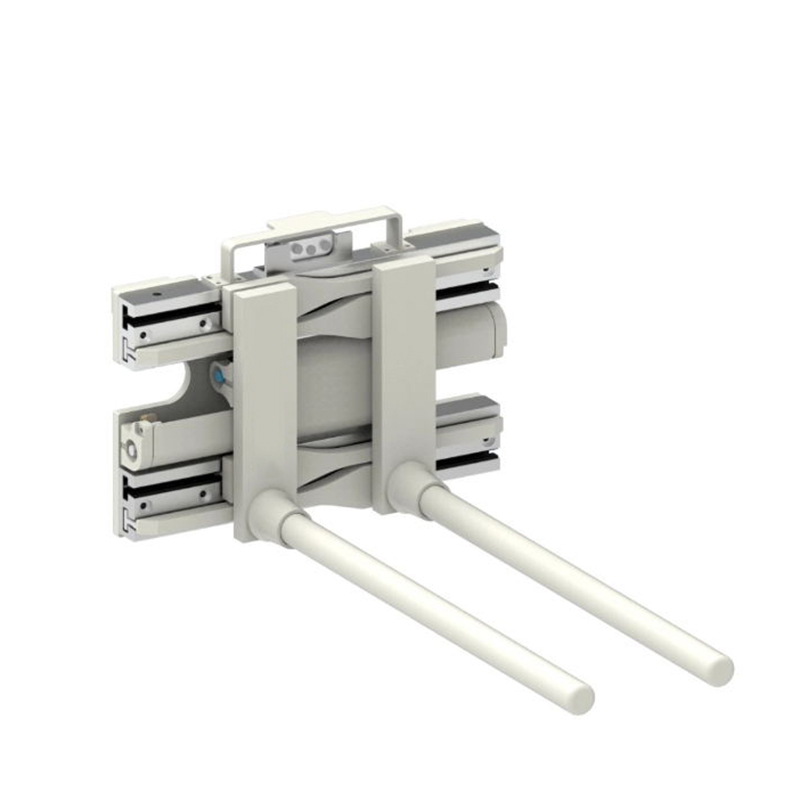

Name:Bar-arm Clamp
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Bar-arm Clamp is a versatile clamp widely used in woodworking, metalworking, and other manufacturing industries. Its advantages include versatility, stability, and reliability. This unique design allows it to flexibly adjust to different shapes and sizes of workpieces. Its sturdy structure and high-quality materials ensure long-term reliable use.

Bar-arm Clamp employs advanced clamping technology, making it easy to grip round, square, and irregularly shaped workpieces, providing great convenience for users.


Its precise design and user-friendly features make workpiece fixation more accurate and efficient.

Its durability and stability make it the preferred tool for professional craftsmen and manufacturers.


Specifications:
<
CAPACITY@LOAD CENTER MODEL MOUNTING CLASS OPENING RANGE FRAME WIDTH OVERALL HEIGHT FORK SIZE VERTICAL CENTER OF GRAVITY WEIGHT EFFECTIVE THICKNESS HORIZONTAL CENTER OF GRAVITY

(kg@mm)



A(mm) W(mm) H(mm) фDxL(mm) VCG(mm) (kg) ET(mm) HCG(mm)

1900kg@500mm

YGC19A-B001 II 250-1410 940 681 ф700×1200 165 330 170 226

3000kg@500mm

YGC30A-C001 III 360-1500 1130 789 ф100×1196 202 580 201 262

5000kg@600mm

YGC50A-C/D001 III/IV 300-1300 1040 998 ф105×2000 243 1080 272 402
