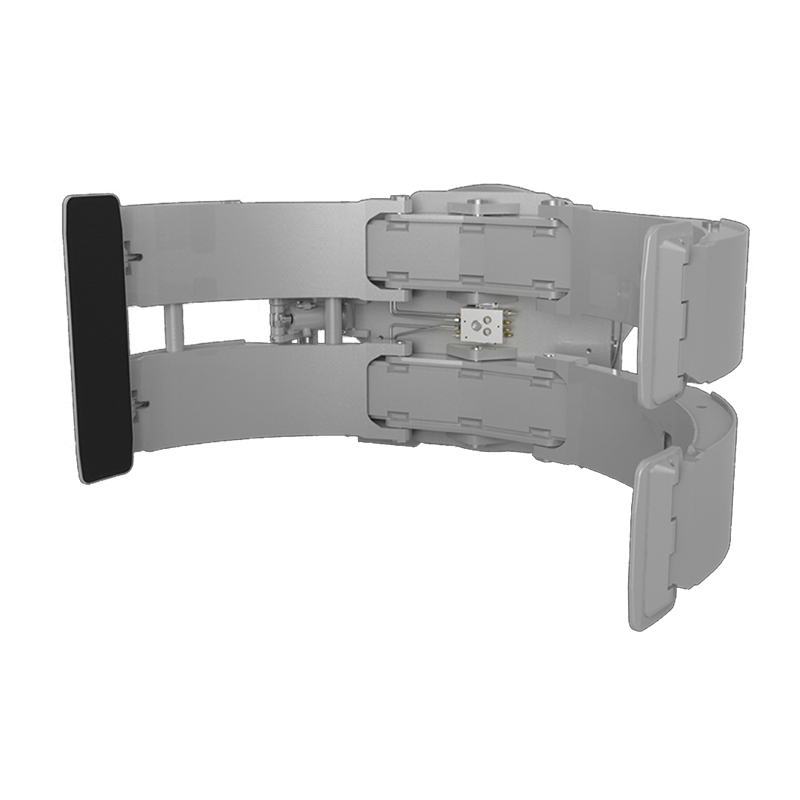

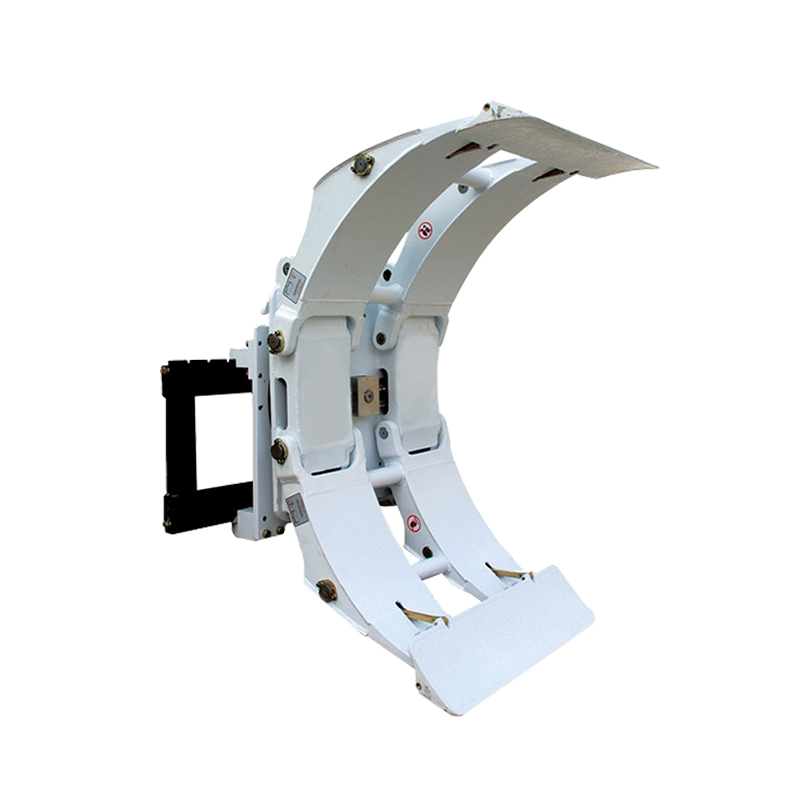

Name:D Series Paper Roll Clamp
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product Description:

The Paper Roll Clamp is well-designed, using advanced technology to easily grip paper rolls of various sizes. Its sturdy structure and high-quality materials ensure long-term stable use. Easy to operate, improving work efficiency, it is the ideal choice for the paper processing industry.

Advantages of Paper Roll Clamp:


1. Efficient and Convenient: Quickly grab and move paper rolls, improving work efficiency.

2. Precise and Stable: Precise gripping, stable and reliable, ensuring the safe transport of paper rolls.

3. Versatility: Suitable for paper rolls of different sizes and weights, flexible to meet various work requirements.


Specifications:

<

RATED CAPACITY@ LOAD CENTER MODEL PAPER ROLL RANGE TYPE MOUNTING ANGLE LONG ARM LENGTH SHORT ARM LENGTH LONG ARM THICKNESS VERTICAL CENTER OF GRAVITY WEIGHT EFFECTIVE THICKNESS HORIZONTAL CENTER OF GRAVITY MOUNTING CLASS
(kg@mm) ∅(mm) A (mm) B(mm) C(mm) VCG(mm) (kg) ET(mm) HCG(@mm)
2300@650 ZJJ25D-B031/C031 600-1300 A 835 550 48 427 662 250 320 II/III
2300@650 ZJJ25D-B032/C032 250-1300 B 835 550 48 429 682 250 318 II/III
2200@675 ZJJ25D-B033/C033 630-1350 A 835 550 48 426 660 250 320 II/III
2200@675 ZJJ25D-B034/C034 330-1350 B 835 550 48 428 680 250 318 II/III
2000@750 ZJJ25D-B035/C035 530-1500 A 1000 715 48 461 728 205/250 373 II/III
2000@750 ZJJ25D-B036/C036 250-1500 B 1000 715 48 459 740 205/250 371 II/III
1900@800 ZJJ25D-B037/C037 630-1600 A 1030 775 48 353 765 205/250 373 II/III
1900@800 ZJJ25D-B038/C038 350-1600 B 1030 775 48 353 775 205/250 370 II/III
1700@900 ZJJ25D-C039 750-1800 A 1175 795 48 412 845 250 408 III
1700@900 ZJJ25D-C040 400-1800 B 1175 795 48 409 860 250 406 III
2700@675 ZJJ30D-C011 590-1350 A 960 616 53 430 830 210 308 III
2700@675 ZJJ30D-C012 330-1350 B 960 616 53 430 840 210 305 III
2600@700 ZJJ30D-C013 470-1400 A 1063 843 53 433 835 210 320 III
2400@750 ZJJ30D-C015 560-1500 A 964 755 53 431 870 210 325 III
2400@750 ZJJ30D-C016 250-1500 B 964 755 53 431 880 210 328 III
2300@800 ZJJ30D-C017 560-1600 A 1007 843 53 431 885 210 345 III
2300@800 ZJJ30D-C018 250-1600 B 1007 843 53 431 895 210 342 III
2100@900 ZJJ30D-C019 700-1800 A 1127 905 50 431 940 210 371 III
2100@900 ZJJ30D-C020 350-1800 A 1127 905 53 431 960 210 368 III
3500@675 ZJJ35D-C011/D011 360-1350 A 975 680 61 460 1130 221 314 III/IV
3400@700 ZJJ35D-C013/D013 350-1400 A 987 680 61 424 1150 221 319 III/IV
3300@750 ZJJ35D-C015/D015 490-1500 A 1000 772 61 500 1215 221 320 III/IV
3300@750 ZJJ35D-C016/D016 250-1500 B 1000 772 61 500 1215 221 320 III/IV
3000@800 ZJJ35D-C017/D017 550-1600 A 1100 772 65 500 1140 221 320 III/IV
3000@800 ZJJ35D-C018/D018 250-1600 B 1100 772 61 500 1245 221 325 III/IV
4000@800 ZJJ50D-D004 250-1600 B 1100 772 61 568 1300 233 307 IV
3500@1050 ZJJ50D-D009 900-2100 A 1440 960 61 600 1600 221 372 IV
3500@1050 ZJJ50D-D010G 500-2100 B 1440 960 61 606 1550 237 378 IV
3500@900 ZJJ50D-D013 700-1800 A 1280 835 61 546 1525 229 338 IV
4000@900 ZJJ50D-D022 350-1900 B 1370 873 61 621 1500 237 385 IV



Previous:D SeriesTissue Paper Roll ClampNext:Bar-arm ClampReturn
