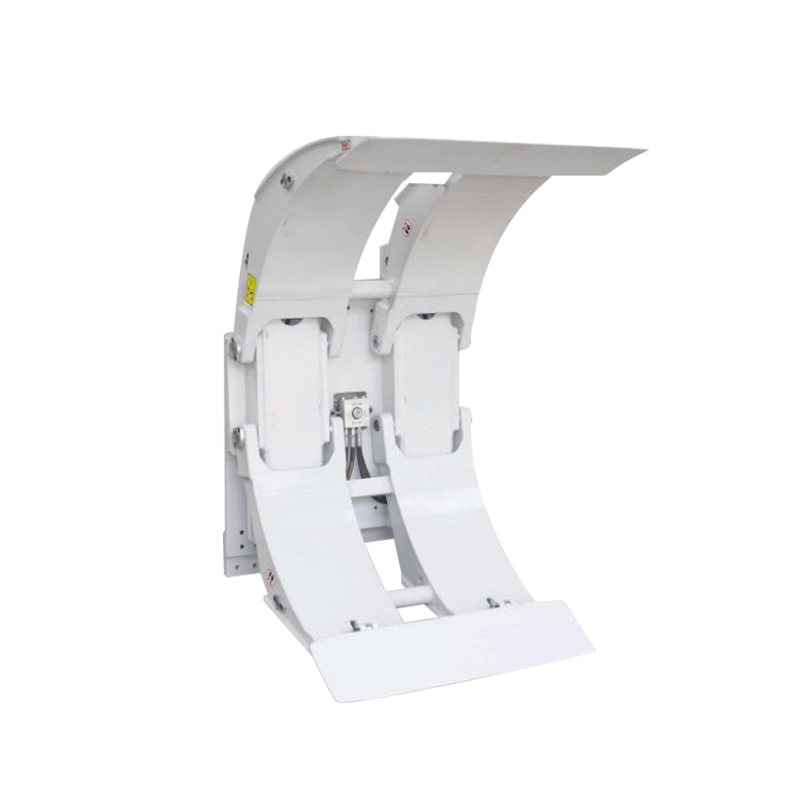

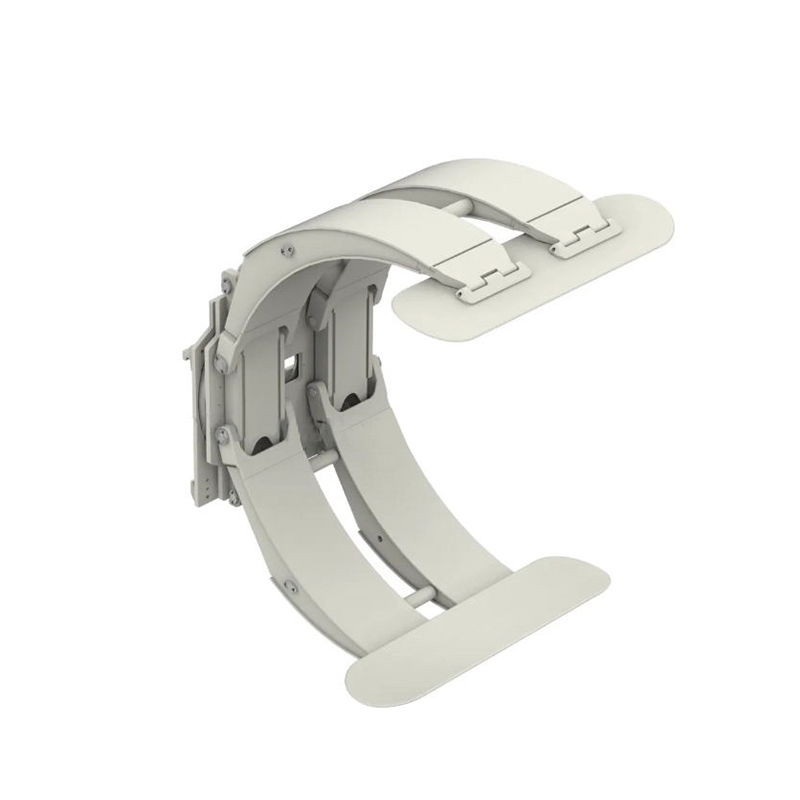

Name:D SeriesTissue Paper Roll Clamp
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor & Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The Tissue Paper Roll Clamp is a tool designed specifically for gripping and transporting tissue paper rolls. It is typically made of sturdy and durable steel, with adjustable gripping force to easily and efficiently handle various sizes of tissue paper rolls. The clamp often comes with a non-slip rubber pad to ensure secure gripping and prevent damage to the surface of the tissue rolls.

Advantages:

Efficient and Convenient: The Tissue Paper Roll Clamp is designed for easy operation, allowing for quick gripping of tissue paper rolls and increased work efficiency.

Durable and Reliable: Constructed from high-quality steel, it offers strong durability and stability, resistant to deformation or damage during long-term use.

Versatility: The Tissue Paper Roll Clamp is suitable for different sizes of tissue paper rolls, with adjustable gripping force for a wide range of applications, providing flexibility.


Specifications:
<
RATED MODEL PAPER TYPE  MOUNTING CLASS CONTACT LONG ARM SHORTARM LONG ARM VERTICAL WEIGHT EFFECTIVE HORIZONTAL
CAPACITY@
ROLL RANGE

PAD SIZE LENGTH LENGTH THICKNESS CENTER OF
THICKNESS CENTER OF
LOAD CENTER







GRAVITY

GRAVITY
(kg@mm)
∅(mm)

WxH (mm) A (mm) B(mm) C (mm) VCG(mm) (kg) ET(mm) HCG(@mm)
2000@750 ZJJ25D-C104RA 530-1500 A III 260x900 1003 714 40 353 724 256 367
2300@650 ZJJ25D-B125RA 600-1300 A II 260x900 878 634 40 357 680 205 293
1700@900 ZJJ25D-C028RC 750-1800 A III 260x1500 1237 846 40 401 916 256 465
3500@1550 ZJJ70D-D001RD 1070-3100 B IV 700x1800 2276 1741 104 517 2560 287 721
2600@1250 ZJJ50D-D011RB 1200-2500 A IV 500x1200 1700 1290 61 471 1850 237 574
