Products – Forklift Attachments



Name：E Series Rotator
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor & Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

Product Description:

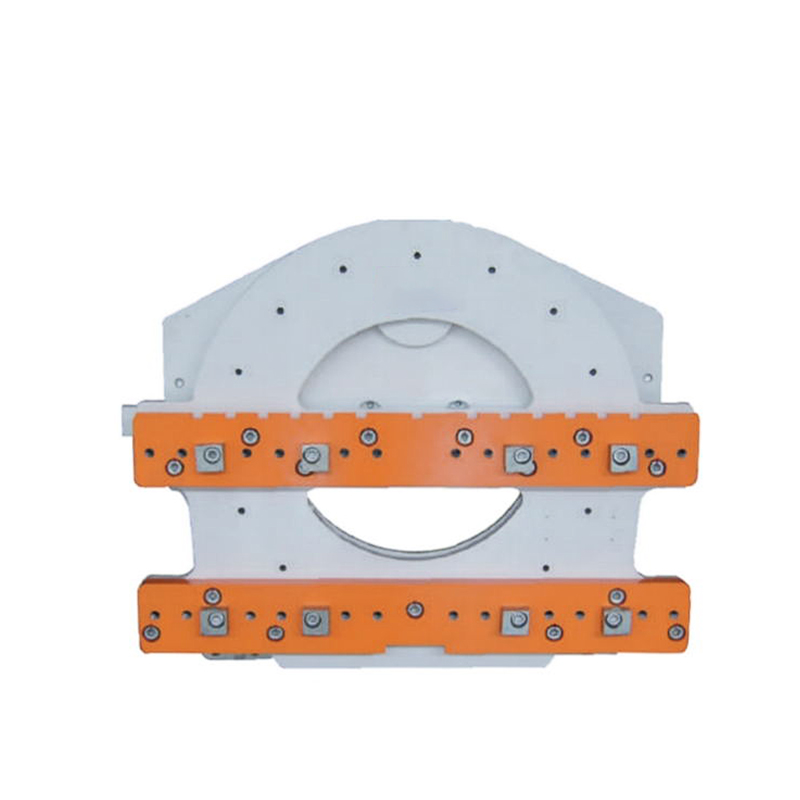

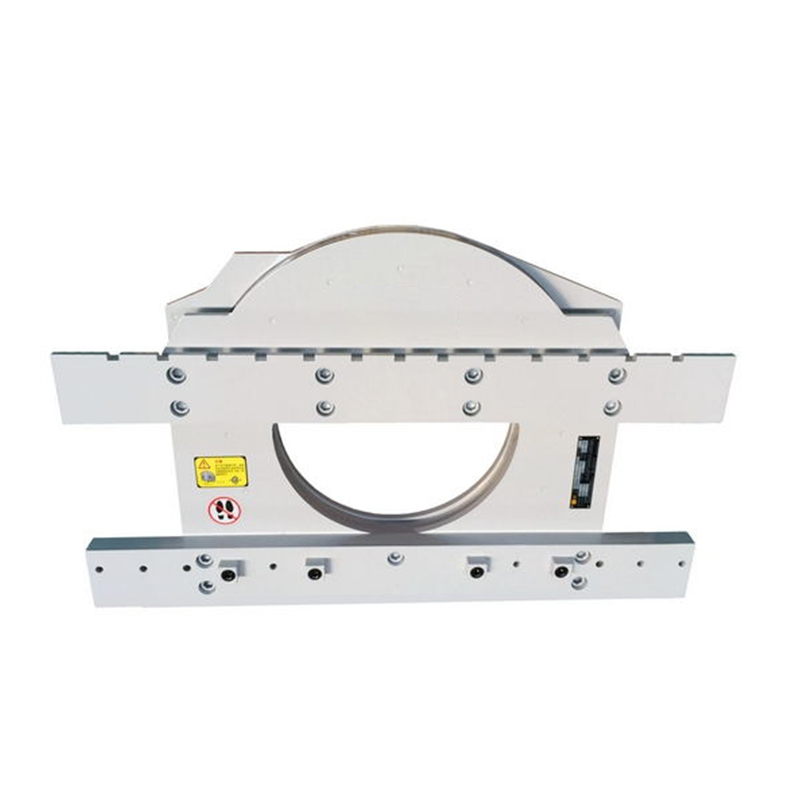

This is a rotator driven by hydraulic power, widely used in situations where goods need to be tilted for operations. The component is circular, predominantly white, with a central circular hole and various bolt holes around its perimeter, indicating it is designed for attachment to other components.

Product Advantages:

Hydraulic-driven rotation for convenient and efficient operation.

Widely used for tilting goods, enhancing work efficiency.

Sturdy design suitable for industrial environments.

Specifications：
<
CAPACITY@ MODEL FORKLIFT FORK CARRIAGE FORK MAX. MIN.TRUCK VERTICAL ACTUAL WEIGHT WEIGHT EFFECTIVE HORIZONTAL
LOAD CENTER
MOUNTING MOUNTING WIDTH SPACING OTO CARRIAGE WIDTH CENTER OF

THICKNESS CENTER OF


CLASS CLASS


GRAVITY


GRAVITY
(kg@mm)


W(mm) 0T0(mm) (mm) VCG(mm) (kg) (kg) ET(mm) HCG(@mm)
2500@600 XZQ25E-B001 II II 965 880 800 299 296 296 160 89
2500@600 XZQ25E-B002 II II 1115 1030 800 298 300 300 160 91
2500@600 XZQ25E-B003 II II 1040 955 800 296 298 298 160 90
2500@600 XZQ25E-B004 II II 890 805 800 302 290 290 160 88
2500@600 XZQ25E-B005 II II 1100 1015 800 298 300 300 160 91
2500@600 XZQ25E-B007 II II 1000 915 800 298 297 297 160 90
2500@600 XZQ25E-B008 II II 1400 1315 800 286 330 330 160 96
3500@600 XZQ35E-C001 III III 1100 1030 800 306 337 337 218 140
3500@600 XZQ35E-C002 III III 1115 1045 800 301 340 340 218 143
3500@600 XZQ35E-C003 III III 1150 1080 800 302 343 343 218 138
3500@600 XZQ35E-C004 III III 1200 1130 800 300 350 350 218 141
3500@600 XZQ35E-C006 III III 1300 1230 800 286 364 364 218 140
3500@600 XZQ35E-C007 III III 1350 1280 800 286 370 370 218 141
4500@600 XZQ45E-C001 III III 1200 1030 800 286 550 550 178 145
3500@600 XZQ35E-C008Z III III 1600 1530 800 293 475 475 218 145
4500@600 XZQ45E-C001 III III 1200 1094 1016 326 480 480 178 98
4500@600 XZQ45E-C002 III III 1300 1194 1016 324 497 497 178 99
4500@600 XZQ45E-C003 III III 1150 1044 1016 326 472 472 178 99
4500@600 XZQ45E-C005 III III 1350 1269 1016 322 502 502 178 99
4500@600 XZQ45E-C006Z III III 1200 1094 1016 325 325 518 178 99
4500@600 XZQ45E-C007 III III 1250 1144 1016 325 325 490 178 97
5000@600 XZQ50E-D002 IV IV 1200 1200 1016 286 286 560 232 145
6000@600 XZQ60E-D001 IV IV 1200 1200 1016 310 310 577 236 143
6000@600 XZQ60E-D002 IV IV 1500 1500 1016 305 305 622 236 145
6000@600 XZQ60E-D003 IV IV 1250 1250 1016 307 307 590 236 142
6000@600 XZQ60E-D004 IV IV 1550 1550 1016 305 305 650 236 138
6000@600 XZQ60E-D006 IV IV 1525 1525 1016 300 300 650 236 146
7000@600 XZQ70E-D001 IV IV 1550 1550 1150 380 380 820 272 130
7000@600 XZQ70E-D002 IV IV 1700 1700 1150 336 336 840 272 170
7000@600 XZQ70E-D003 IV IV 1450 1450 1150 336 336 810 272 166
7000@600 XZQ70E-D005 IV IV 1845 1845 1150 325 325 875 272 174
8000@600 XZQ80E-D001 IV IV 1800 1800 1300 343 343 1025 264 157
8000@600 XZQ80E-D002 IV IV 1200 1200 1300 350 350 880 264 147
8000@600 XZQ80E-E001 V V 1800 1800 1300 380 380 1100 276 165
