Products – Forklift Attachments



Name:F Series Sideshifting Rotator
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

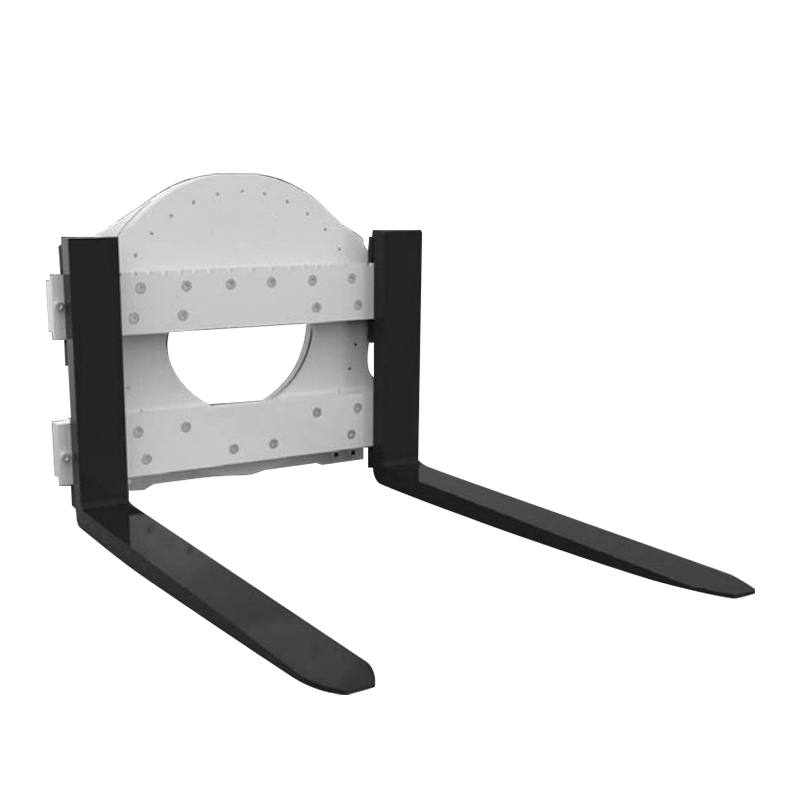

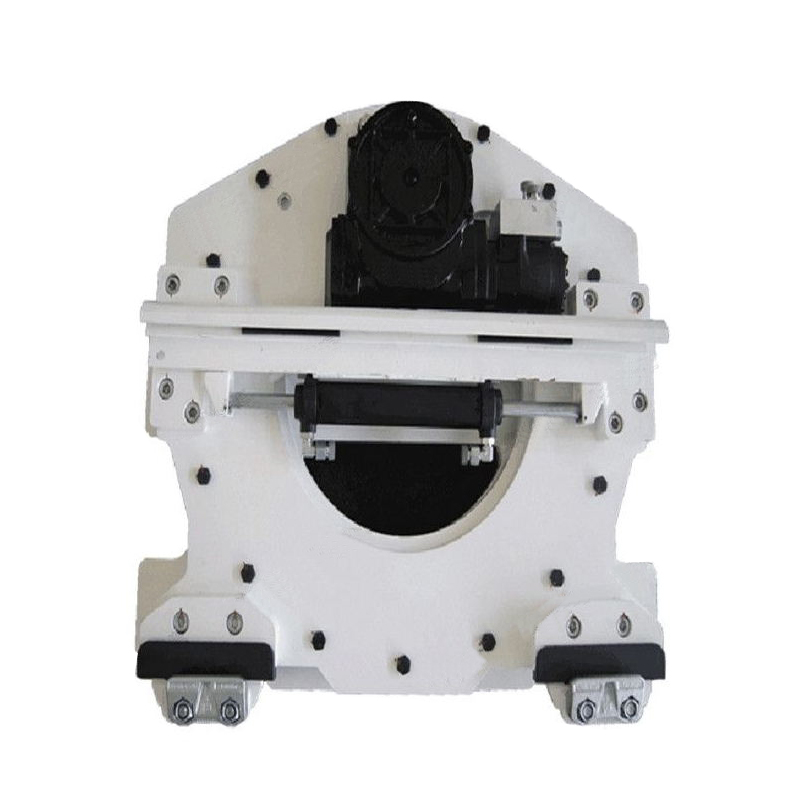

This is a side-shifting rotator, designed for industrial or mechanical applications. It features a sturdy and robust construction with a light grey color and black accents such as screws. The main structure consists of an arched top piece connected to a base by vertical side plates, providing stability and support. The base has multiple holes for mounting and securing the component.

Sturdy and robust construction for durability.


Side-shifting design allows for flexible positioning.

Precision holes and mounting options for easy installation.

Designed for industrial applications requiring reliable performance.


Specifications:
<
CAPACITY@ LOAD CENTER MODEL SIDE SHIFTING ROTATOR MOUNTING CLASS FORK MOUNTING CLASS CARRIAGE WIDTH FORK MAX. SPACING MIN.TRUCK CARRIAGE WIDTH VERTICAL CENTER OF GRAVITY WEIGHT EFFECTIVE THICKNESS HORIZONTAL CENTER OF GRAVITY
(kg@mm) w(mm) 0T0(mm) (mm) VCG(mm) (kg) ET(mm) HCG(@mm)
2500@500 XZQ25F-B001 ±100 II II 890 805 900 323 315 182 99
2500@500 XZQ25F-B002 ±100 II II 1020 935 900 315 325 182 102
2500@500 XZQ25F-B003 ±100 II II 965 880 800 308 296 160 83
2500@500 XZQ25F-B004 ±100 II II 1040 955 900 316 330 182 104
3500@600 XZQ35F-C001 ±100 III III 1100 1030 1150 304 400 240 142
3500@600 XZQ35F-C002 ±100 III III 1100 1030 1150 303 435 226 133
3500@600 XZQ35F-C006 ±100 III III 1300 1230 1150 304 420 240 142
3500@600 XZQ35F-C009Z ±100 III III 1450 1380 1150 293 475 228 140
3500@600 XZQ35F-C010 ±100 III III 1400 1330 1150 294 460 240 152
3500@600 XZQ35F-C011 ±100 III III 1500 1430 1150 294 470 240 150
4500@600 XZQ45F-C001 ±100 III III 1200 1094 1200 324 600 238 135
4500@600 XZQ45F-C004 ±100 III III 1350 1244 1200 379 628 238 117
6000@600 XZQ60F-D001 ±100 IV IV 1200 1021 1200 384 660 263 152
