Products – Forklift Attachments

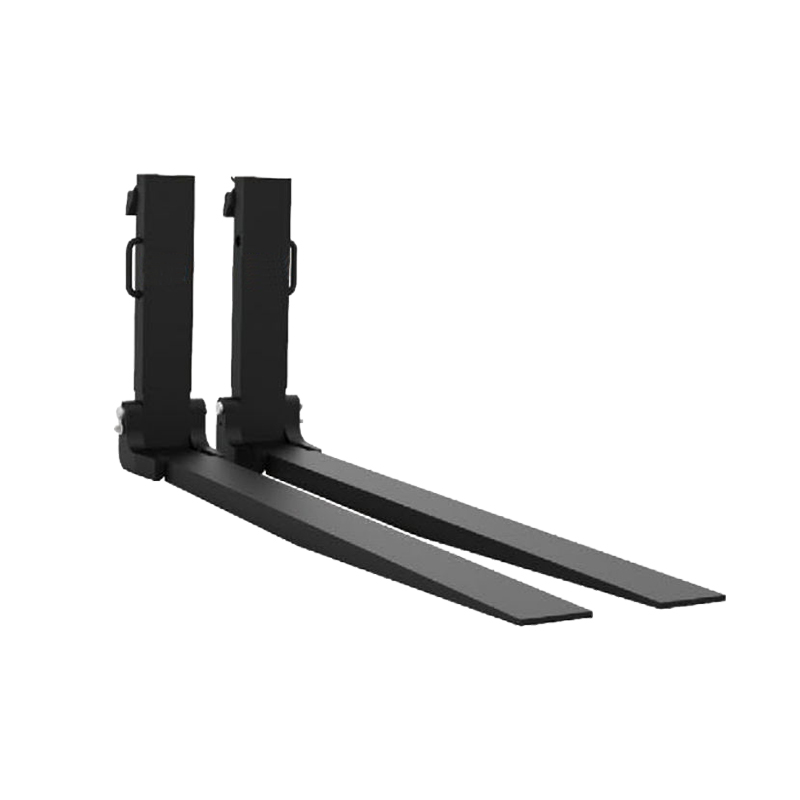

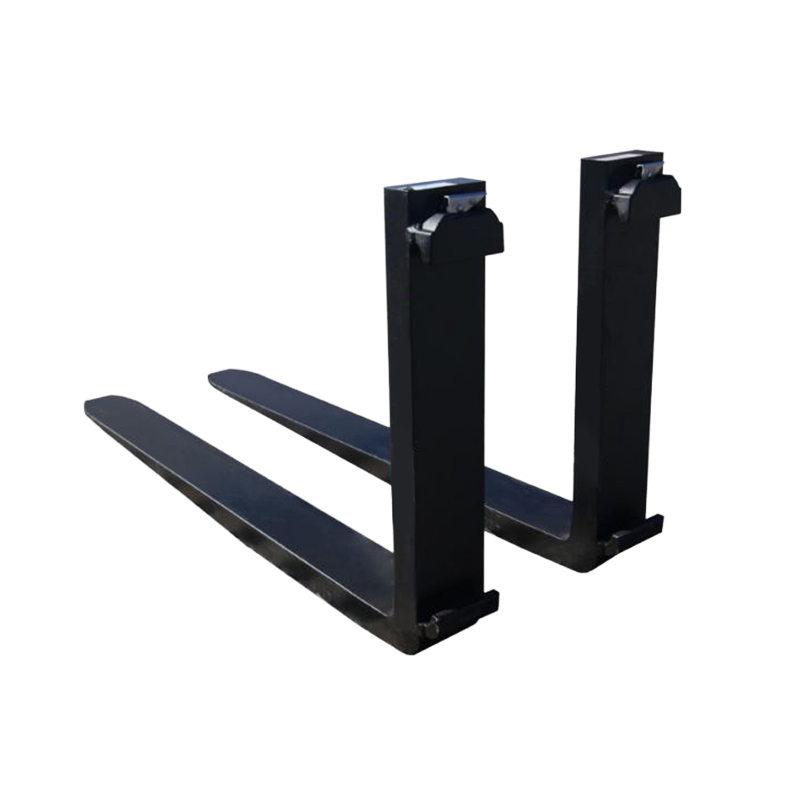

Name:folding forks
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor & Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Features:

l Foldable design: The forks are designed to be foldable, allowing them to be expanded or folded as needed to accommodate cargo of different sizes and shapes.

l Lightweight and flexible: The design of folding forks is lightweight and flexible, making them easy to operate and carry, thus expanding the versatility and flexibility of forklifts.

l Versatility: They can adapt to various cargo handling needs, providing more operational choices and convenience.

Advantages

l Time and labor-saving: The flexible design of folding forks saves time and labor costs in cargo handling.

l Improved efficiency: Their adaptability allows for quicker adjustment to cargo of different sizes and shapes, thereby enhancing handling efficiency.

l Space-saving: The foldable design saves storage space when not in use, improving warehouse efficiency.

Specifications:
<
CAPACITY@ MODEL TRUCK MOUNTING CLASS W2/W1xC LENGTH FORK VERTICAL EFFECTIVE HORIZONTAL WEIGHT
LOAD CENTER



THICKNESS CENTER OF THICKNESS CENTER OF






GRAVITY
GRAVITY
(kg@mm)

W2/W1xC(mm)

VCG(mm) ET(mm) HCG(@mm) (kg)
1000@500 HC10ZA-B001 II 182/100x35 920 35 60 35 220 86
2000@500 HC20ZA-B001 II 182/100x40 1150 40 50 40 300 107
2500@500 HC25ZA-B001 II 182/100x50 1220 50 42 50 350 132
2500@500 HC25ZA-B002 II 208/125x45 1220 45 47 45 340 148
3500@600 HC35ZA-C001 III 208/125x50 1220 50 52 50 330 169
Previous:G Series 180 Degree RotatorNext:F Series Sideshifting RotatorReturn
