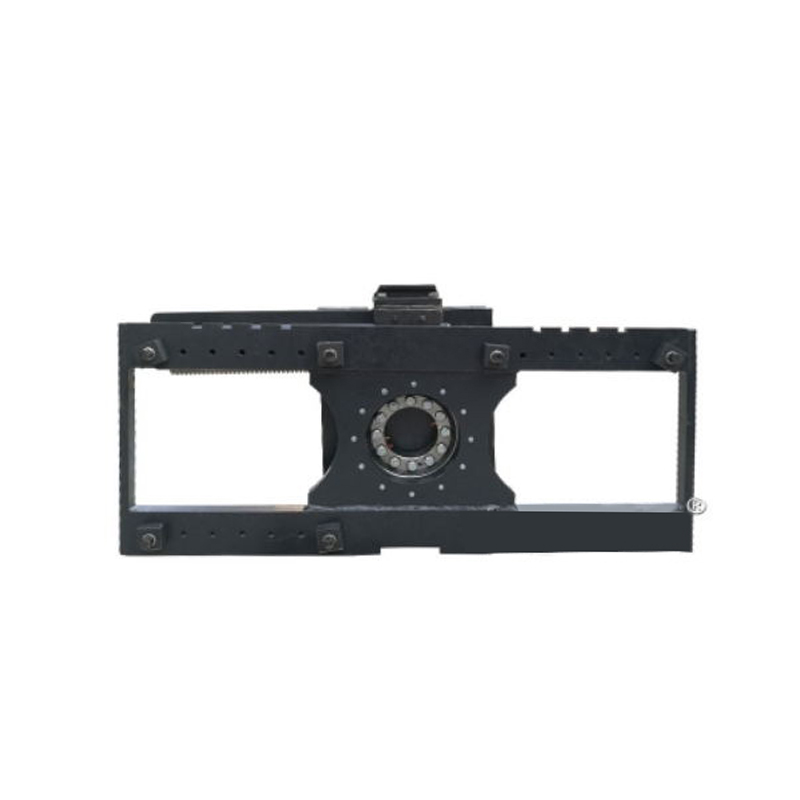

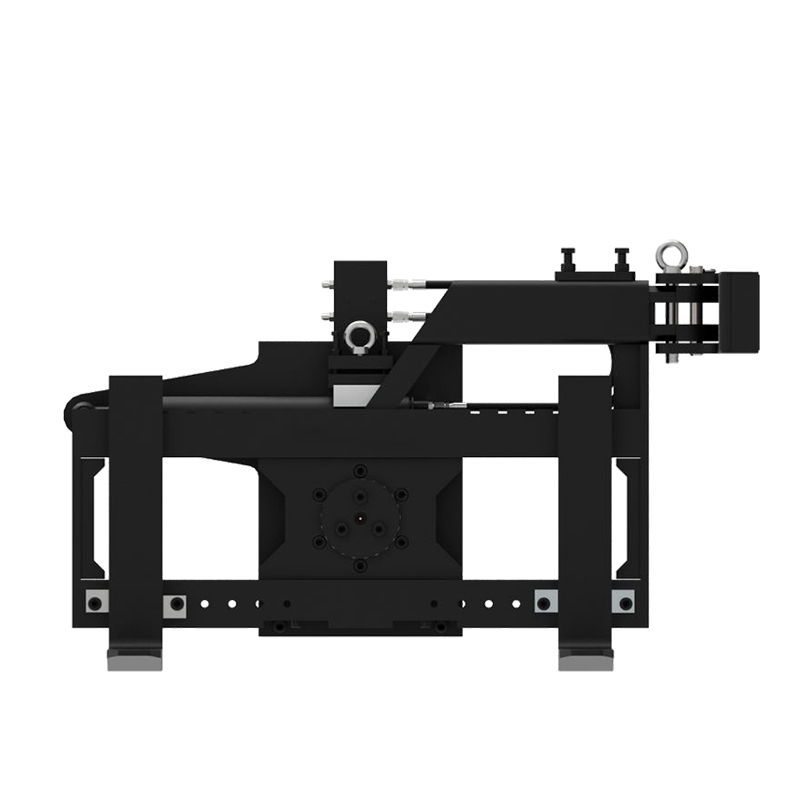

Name:G Series 180 Degree Rotator
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

This is a forklift accessory specifically designed for loading, unloading, and stacking operations. The accessory features lateral movement and horizontal adjustment for cargo positioning. It is black in color, made of metal to ensure strength and durability.

Suitable for loading, unloading, and stacking operations to enhance work efficiency.

Lateral movement feature for easy horizontal adjustment of cargo position.

Sturdy and durable metal construction suitable for industrial environments.







Specifications:
<
CAPACITY@ MODEL ROTATOR FORK CARRIAGE LATERAL ROTATING FORK MAX. FORK MIN. MIN.TRUCK VERTICAL WEIGHT EFFECTIVE HORIZONTAL
LOAD CENTER
MOUNTING MOUNTING WIDTH FORK SIZE DEGREE SPACING SPACING CARRIAGE WIDTH CENTER OF
THICKNESS CENTER OF


CLASS CLASS





GRAVITY

GRAVITY
(kg@mm)


W(mm) LxBxS(mm)
OTO OTO (mm) VCG(mm) (kg) ET(mm) HCG(@mm)
2500@500 XZQ25G-B001 II II 1040 1250x100 180° 990 570 800 350 280 162 164
2500@500 XZQ25G-B002 II II 1040 / 180° 919 613 800 258 258 162 85
2500@500 XZQ25G-C001 III III 1040 / 180° 990 570 800 303 303 162 85
2500@500 XZQ25G-B011 II II 1040 1250x100 180° 990 570 800 419 330 162 212
2500@500 XZQ25G-C011 III III 1040 1250x100 180° 990 570 800 467 458 179 207
3500@500 XZQ35G-C001 III III 1230 1250x100 180° 1165 685 800 350 385 192 155
3500@500 XZQ35G-C002 III III 1230 / 180° 1030 525 800 350 300 192 150
