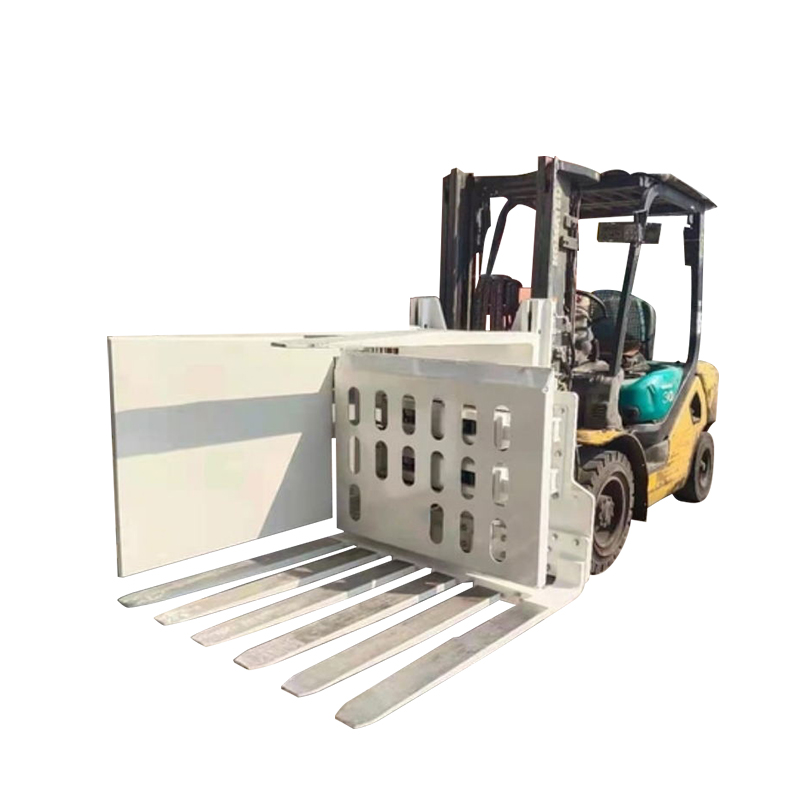

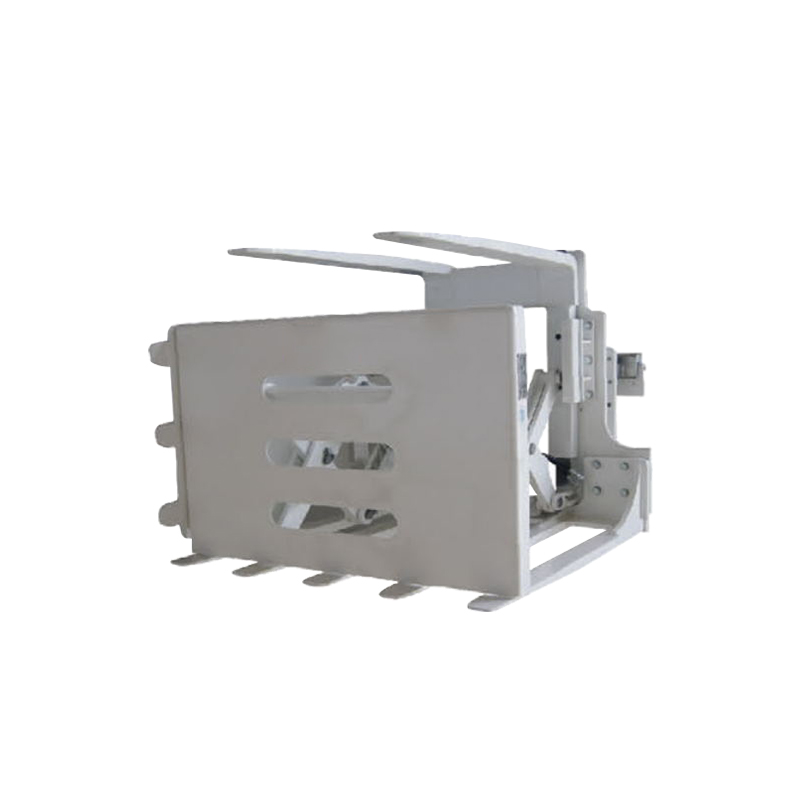

Name:inverta load pusher
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Features:

Powerful pushing force: The inverta load pusher boasts a strong pushing force, enabling the movement of heavy loads in confined spaces.

Flexible rotation: The equipment features flexible rotation capabilities, allowing operation at various angles and directions, suitable for diverse and complex environments.

Lightweight and portable: With a lightweight design, the equipment is easy to carry and move, enhancing work flexibility and efficiency.

Benefits:

Improved work efficiency: The inverta load pusher facilitates the easy movement of heavy loads, thereby enhancing work efficiency.

Reduced labor intensity: Its use can decrease the physical strain associated with manual handling, thus safeguarding the health of workers.

Enhanced safety: The stability and flexibility of the equipment contribute to increased safety during the handling process, reducing the occurrence of accidents.

Specifications:
<
CAPACITY@ MODEL MOUNTING CLASS OPENING LAUNCH SIDE ARM SIDE ARM SIDESHIFTER PLATEN FORK PUSH PLATE WEIGHT EFFECTIVE HORIZONTAL
LOAD CENTER

RANGE DISTANCE WIDTH STROKE
WIDTH DISTANCE SIZE
THICKNESS CENTER OF













GRAVITY
(kg@mm)

A(mm) C(mm) B(mm) (mm) (mm) G (mm) F(mm) D*G (mm) (kg) ET(mm) HCG(@mm)
1500@600 TCX15D-C006 III 950-1530 1300 / / ±100 950 670 900x970 1150 430 393
1500@600 TCX15D-C007 III 970-1550 1136 / / ±100 1300 870 910x1300 1180 430 339
1500@600 TCX15D-C010 III 750-1150 1300 800 100 ±100 1100 670 660x1100 1260 500 451
1500@600 TCX15D-C011/C011R III 965-1545 1180 800 100 ±100 1300 870 910x1300 1340 430 391
1500@600 TCX15D-C013 III 965-1545 1250 800 100 ±100 1300 770 910x1200 1335 430 532
1500@600 TCX15D-C017 III 1000-1700 1136 920 100 ±100 1200 770 910x1200 1320 430 337
1500@600 TCX15D-C022 III 850-1430 1300 700 100 ±100 1280 795 660x1280 1330 520 451
1500@600 TCX15D-C025/C025R III 1000-1580 1180 950 100 ±100 1300 875 955x1300 1311 430 336
1500@600 TCX15D-C030R III 750-1150 1600 720 100 ±100 1280 800 700x1280 1462 525 565
1500@600 TCX15D-C035G III 900-1480 1200 700 100 ±100 1000 675 700x1280 1188 496 340
1500@600 TCX15D-C045 III 960-1540 1200 830 100 ±100 1000 670 830x950 1250 430 412
1500@600 TCX15D-C049/C049R III 700-1150 1200 800 100 ±100 1200 770 660x1150 1450 524 507
2000@600 TCX20D-C012 III 750-1150 1100 700 100 ±100 1100 670 660x1100 1210 520 425
2000@600 TCX20D-C024 III 1020-1600 1000 905 100 ±100 1200 770 905x1020 1240 430 336
2000@600 TCX20D-C060 III 900-1580 1300 800 100 ±100 1400 1020 660x1380 1460 520 487
2500@600 TCX25D-C017 III 1000-1700 1050 900 100 ±100 1050 760 900x950 1480 478 395
2500@600 TCX25D-D065 IV 900-1600 1250 900 100 ±100 1300 650 660x1250 1830 569 493
2000@600 TCX20E-C002 III 570-1040 1150 460 100 ±100 1050 740 530x1050 1230 503 489
