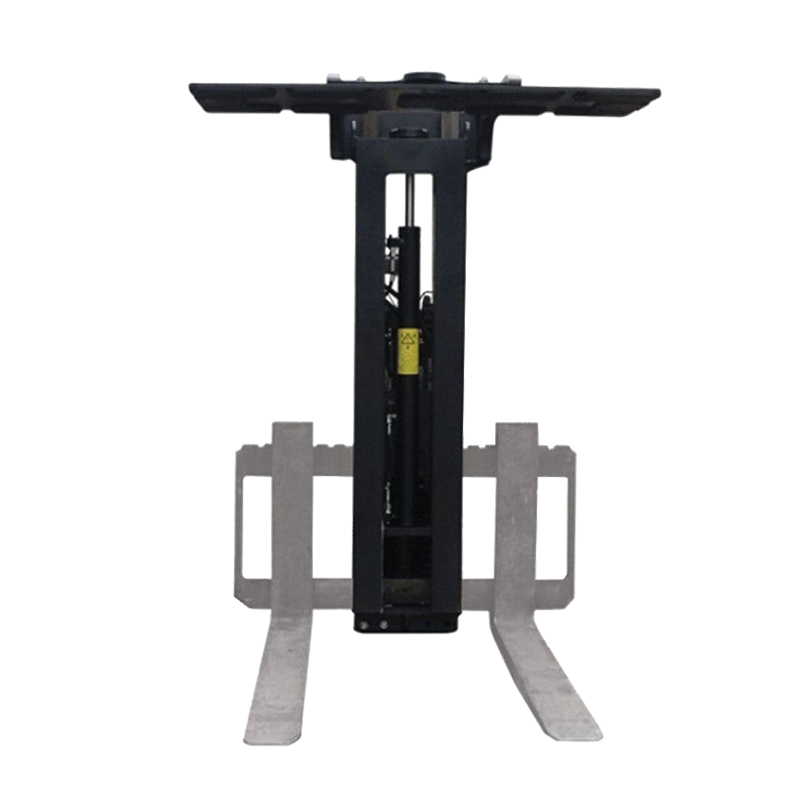

Name:load stabilizer
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Characteristics:

Adjustability: Payload stabilizers typically have adjustable functionality, allowing for adjustments based on different load sizes and shapes.

Structural stability: The stabilizer's design structure is stable and capable of withstanding high pressure and heavy loads.



Advantages:

Enhanced safety: By stabilizing the load, it reduces the jolting and instability factors during transportation, thereby improving transport safety.

Equipment protection: The payload stabilizer can reduce wear and tear on mechanical equipment, extending the equipment's service life.

Improved efficiency: The stabilizer can help improve transport efficiency, reducing transportation delays caused by unstable loads.

Specifications:
<
CAPACITY@ MODEL OPENING PAD SIZE LOAD BACKREST FRAME HORIZONTAL VERTICAL WEIGHT EFFECTIVE MOUNTING
LOAD CENTER
RANGE
SIZE WIDTH CENTER OF CENTER OF
THICKNESS CLASS






GRAVITY GRAVITY


(kg@mm)
A (mm) DxG (mm) AxB (mm) C(mm) HCG(@mm) VCG(mm) (kg) ET(mm)
/ WDQ16D-B015 1500-2600 1600x600 1110x2300 350 357 1269 370 117 II
/ WDQ16D-B021 1200-2400 1400x1400 1020x1800 516 393 996 404 117 II
/ WDQ16D-B023 1380-2300 860x1150 1090x1300 516 299 1057 350 117 II
/ WDQ16D-C002 1400-2600 1600x600 870x2000 350 362 1157 358 117 III
/ WDQ16D-C005 2300-2700 1500x600 / 200 398 1840 293 117 III
/ WDQ16D-C020 1200-2400 850x1100 / 516 252 949 316 117 III
/ WDQ16D-C021 1200-2400 1400x1400 1020x1800 516 371 983 404 117 III
