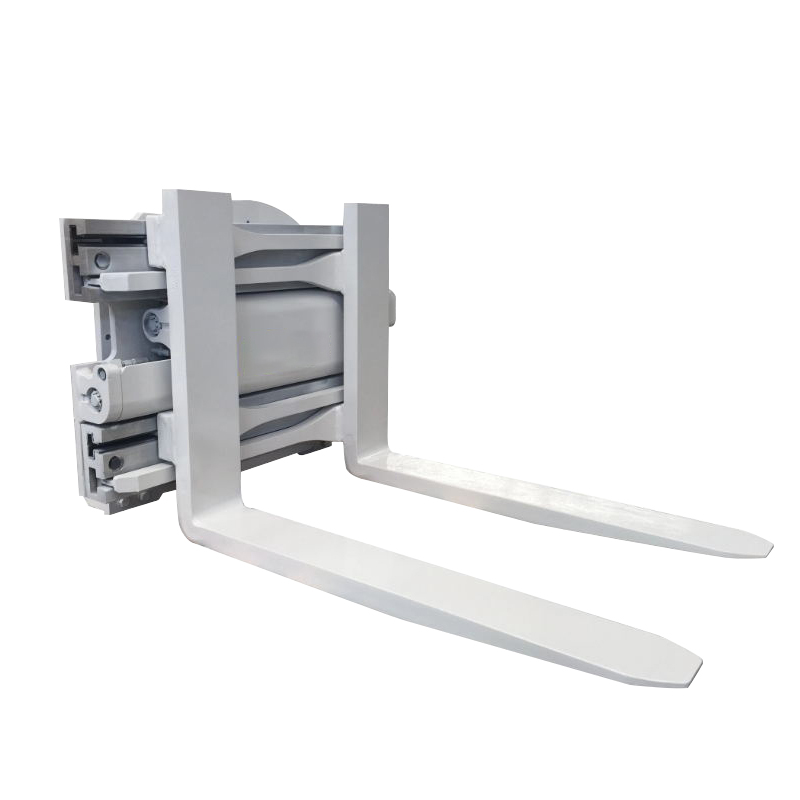

Name:ROTATING FORK CLAMP(1 PAIR FORKS)
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

- The rotating fork clamp (1 pair forks) is an accessory designed specifically for forklifts, featuring a 360-degree rotating function.

- Suitable for various cargo handling scenarios, enhancing operational flexibility and efficiency.

- The product is known for its durability and reliability, withstanding long-term use without damage.

- Simple to operate, reducing labor intensity for operators.

Specifications:
<
CAPACITY@
OPENING FORK FRAME VERTICAL WEIGHT EFFECTIVE HORIZONTAL MOUNTING
LOAD CENTER
RANGE SIZE WIDTH CENTER OF
THICKNESS CENTER OF CLASS





GRAVITY

GRAVITY
(kg@mm)
A(mm) BxExS (mm) w(mm) VCG(mm) (kg) ET(mm) HCG(@mm)
1600@600 CJX16D-B002 405-1660 50x125x1065 940 283 580 299 232 II
1600@600 CJX16D-B003 405-1660 50x125x1220 940 282 600 299 261 II
1600@600 CJX16D-B004 300-1700 45x125x1070 1210 300 560 294 221 II
1600@600 CJX16D-B005 160-960 45x122x1200 940 280 520 293 247 II
1600@600 CJX16D-B006 160-960 45x122x800 940 280 500 293 244 II
1600@600 CJX16D-B007 160-960 45x122x1100 940 280 510 293 245 II
2300@600 CJX23D-C001 426-1780 50x150x1065 1015 284 655 366 262 III
2300@600 CJX23D-C001G 440-1780 50x122x1300 1015 304 631 358 302 III
2300@600 CJX23D-C002 426-1780 50x150x1220 1015 284 690 366 312 III
2300@600 CJX23D-C003 426-1780 50x150x1200 1015 286 670 358 304 III
2300@600 CJX23D-C006 20-1374 50x150x1520 1405 270 750 366 352 III
2300@600 CJX23D-C007 200-1554 50x140x1220 1260 277 680 366 315 III
2300@600 CJX23D-C008 20-1374 50x150x1220 1405 280 710 366 308 III
2300@600 CJX23D-C008G 400-1670 50x122x1220 1405 292 685 366 284 III
2300@600 CJX23D-B/C009 310-1550 50x125x1200 1065 270/292 617/615 312/355 320/293 II/III
2300@600 CJX23D-C011 220-1570 45x125x1220 1260 277 644 361 300 III
2300@600 CJX23D-C012 220-1570 45x125x1520 1260 278 672 361 323 III
2300@600 CJX23D-C013 426-1780 45x125x1520 1065 284 647 361 336 III
2300@600 CJX23D-B014 310-1550 50x125x1200 1065 293 620 312 254 II
2300@600 CJX23D-C017 370-1820 50x130x1220 1200 295 672 366 290 III
2300@600 CJX23D-C018 200-1554 50x140x1520 1260 275 715 366 354 III
2300@600 CJX23D-C019 200-1554 50x150x1220 1260 277 700 361 303 III
2300@600 CJX23D-C020 430-1780 45x125x1200 1065 299 617 353 299 III
2300@600 CJX23D-B022 440-1800 50x125x1200 1016 292 650 315 254 II
2300@600 CJX23D-B023 310-1550 50x125x1070 1100 300 607 315 232 II
2300@600 CJX23D-C026 460-1810 50x122x1820 1260 260 692 358 398 III
2300@600 CJX23D-C027 430-1880 45x122x1220 1130 295 700 353 279 III
2300@600 CJX23D-C028 485-1625 50x122x1400 1150 282 720 358 315 III
2300@600 CJX23D-C030 250-1600 50x150x1200 1200 286 700 358 300 III
2300@600 CJX23D-C031 426-1780 50x125x1220 1040 284 690 366 312 III
3200@600 CJX32D-C001 420-1950 65x150x1220 1260 306 1050 333 270 III
3200@600 CJX32D-D002 400-2100 60x150x1500 1450 245 1150 383 323 II
3200@600 CJX32D-C004 420-1950 65x150x1800 1260 300 1150 333 275 III
3200@600 CJX32D-C/D005 400-1790 60x150x1220 1150 320 950 318 233 II
3200@600 CJX32D-C007 320-1710 60x150x2400 1260 265 1200 329 483 III
3200@600 CJX32D-D009 400-2100 60x150x1220 1450 276 1080 381 284 IV
3200@600 CJX32D-C/D010 420-1950 65x150x1500 1260 301/259 1090/1160 333/386 297/336 III/IV
