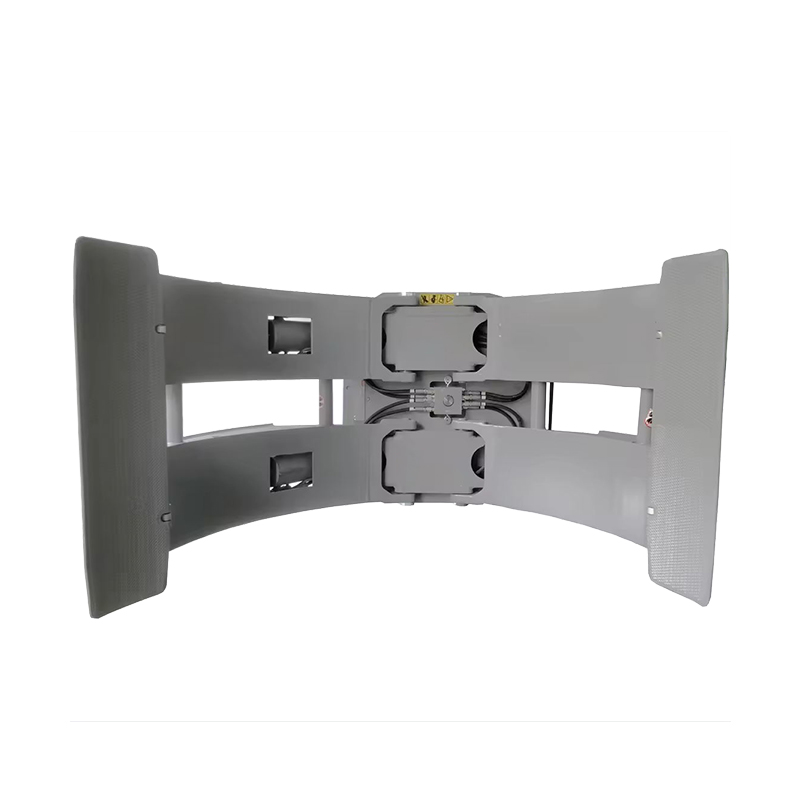

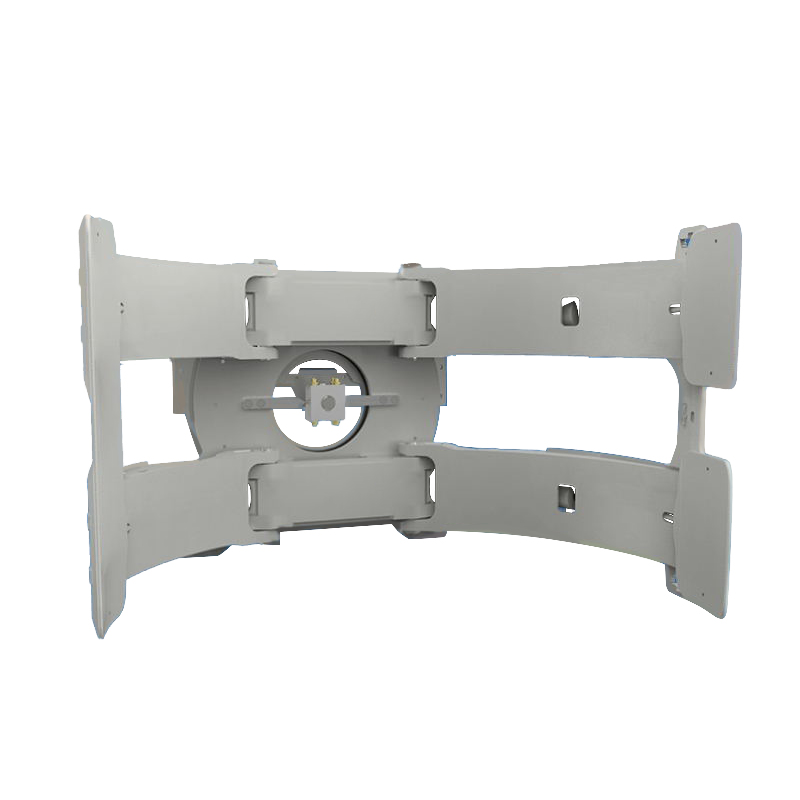

Name:rotating type clamp
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product Description:

This rotary tire clamp is made of high-strength materials, sturdy and durable in structure. It features a 360-degree rotation function, allowing flexible angle adjustments to accommodate different types and sizes of vehicle tires. Easy to operate and install, it is an ideal assistant for your car maintenance needs.

Product Advantages:

Made of high-strength materials, sturdy and durable.

360-degree rotation design with adjustable angles, versatile in application.

Easy to operate, convenient installation, improving work efficiency.

Ensures vehicle stability, providing a safer working environment.

Specifications:
<
CAPACITY@ MODEL ROLL RANGE TYPE MOUNTING CLASS LONG ARM SHORT LONG ARM CONTACT VERTICAL WEIGHT EFFECTIVE HORIZONTAL
LOAD CENTER



LENGTH ARM THICKNESS PAD SIZE CENTER OF
THICKNESS CENTER OF






LENGTH

GRAVITY

GRAVITY
(kg@mm)
(mm)

A(mm) B (mm) C(mm) WxH(mm) VCG(mm) (kg) ET(mm) HCG (mm)
1200@500 LTJ12D-B001 410-1300 A II 820 570 95 230x1500 280 460 150 250
1900@800 LTJ20D-C001 630-1580 B III 1035 775 95 300x1500 343 810 256 301
1900@800 LTJ20D-C002 350-1580 A III 1035 775 95 300x1500 343 820 256 304
2300@650 LTJ20D-C003 630-1330 A III 835 550 95 300x1500 343 736 256 307
1700@900 LTJ17D-C001 750-1800 A III 1175 795 85 300x1500 343 935 256 345
1700@900 LTJ17D-C002 400-1800 B III 1175 795 85 300x1500 343 986 256 345
