Feature:

Product Introduction:

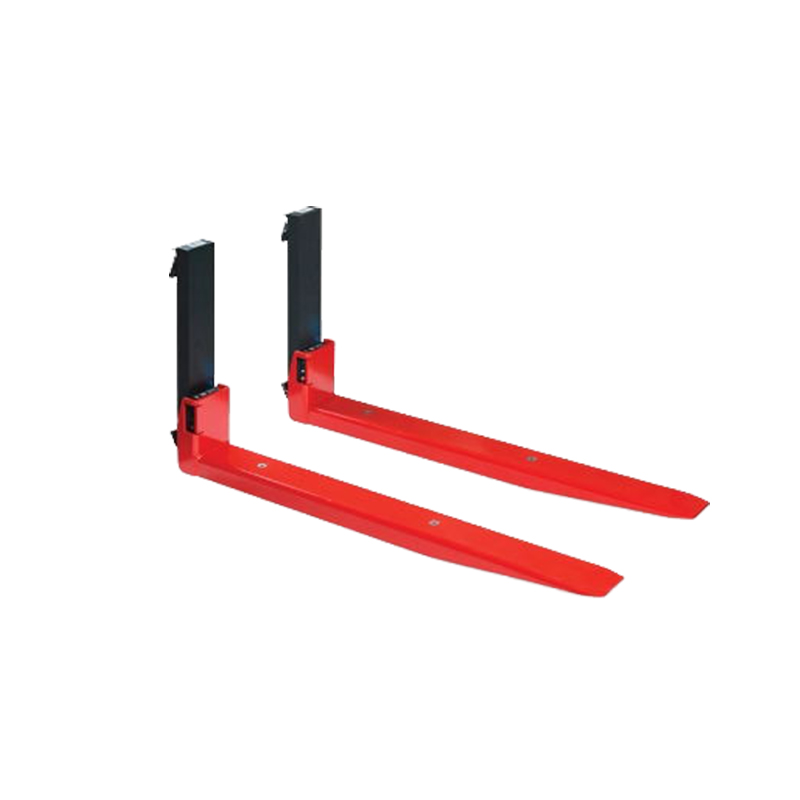

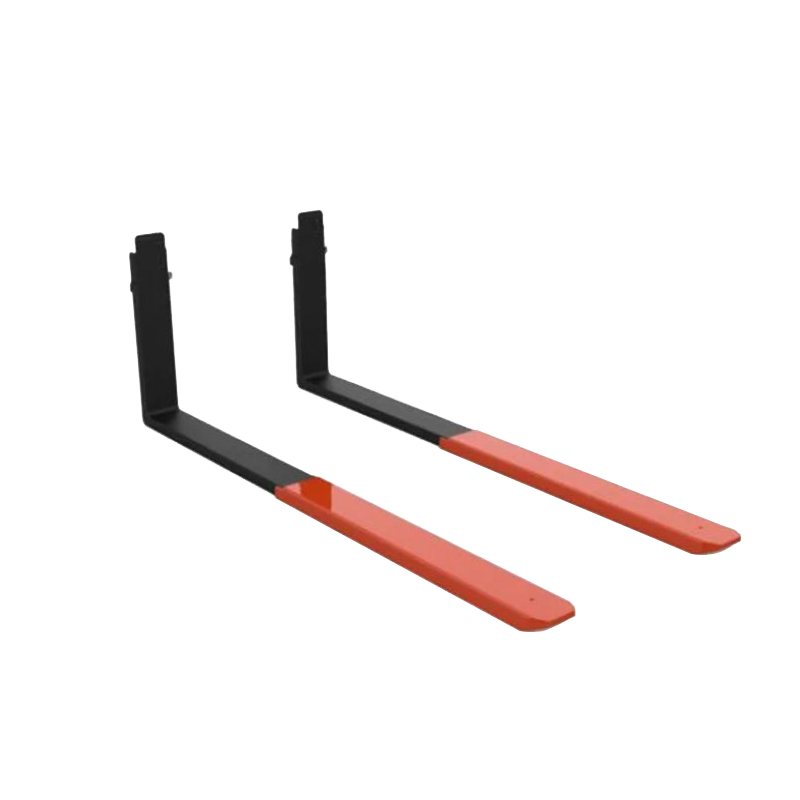

Telescopic forks, also known as hydraulic telescopic forks, are a type of fork attachment for forklifts that can extend and retract hydraulically to adjust the length of the forks. These forks are designed to provide versatility in handling various sizes of loads and optimizing efficiency in material handling operations.

Features:

Hydraulic telescopic mechanism: Telescopic forks are equipped with a hydraulic system that allows for smooth extension and retraction of the forks, enabling quick adjustment to different load sizes.

Adjustable length: The telescopic feature of the forks provides flexibility in handling loads of varying lengths, improving adaptability in different material handling tasks.

Robust construction: Telescopic forks are built with sturdy materials to withstand heavy loads and ensure durability in demanding industrial environments.

Advantages:

Enhanced versatility: The ability to adjust the length of the forks hydraulically allows for handling a wide range of load sizes, increasing the versatility of the forklift in different applications.

Improved efficiency: Telescopic forks enable quick and precise adjustment to the required fork length, reducing the need for manual adjustments and enhancing operational efficiency.

Increased safety: The hydraulic telescopic mechanism enhances the stability and control of the forks during load handling, contributing to safer material handling practices and reducing the risk of accidents.

Specifications:
<
CAPACITY@ MODEL MOUNTING FORK LENGTH FORK LENGTH CARRYING AREA VERTICAL WEIGHT EFFECTIVE HORIZONTAL CENTER
LOAD CENTER
CLASS RETRACTED EXTENDED SECTION CENTER OF
THICKNESS OF GRAVITY


ISO

DIMENSION GRAVITY

(RETRACTED/EXTENDED)
(kg@mm)

A (mm) B (mm) W1/W2/5 (mm) VCG(mm) (kg) ET(mm) HCG1 /HCG2(mm)
2500@600 SSC25E-B401 II 1350 2350 162/170/57 28 218 50 481/728
2500@600 SSC25E-B402 II 1200 2050 162/170/57 36 200 50 414/620
3500@600 SSC35E-C401 III 1350 2350 162/170/57 59 232 50 452/685
3500@600 SSC35E-C402 III 1200 2050 162/170/57 68 215 50 388/580
2500@600 SSC25E-B201 II 1350 2350 132/140/57 22 177 45 494/729
2500@600 SSC25E-B202 II 1200 2050 132/140/57 29 162 45 426/623
