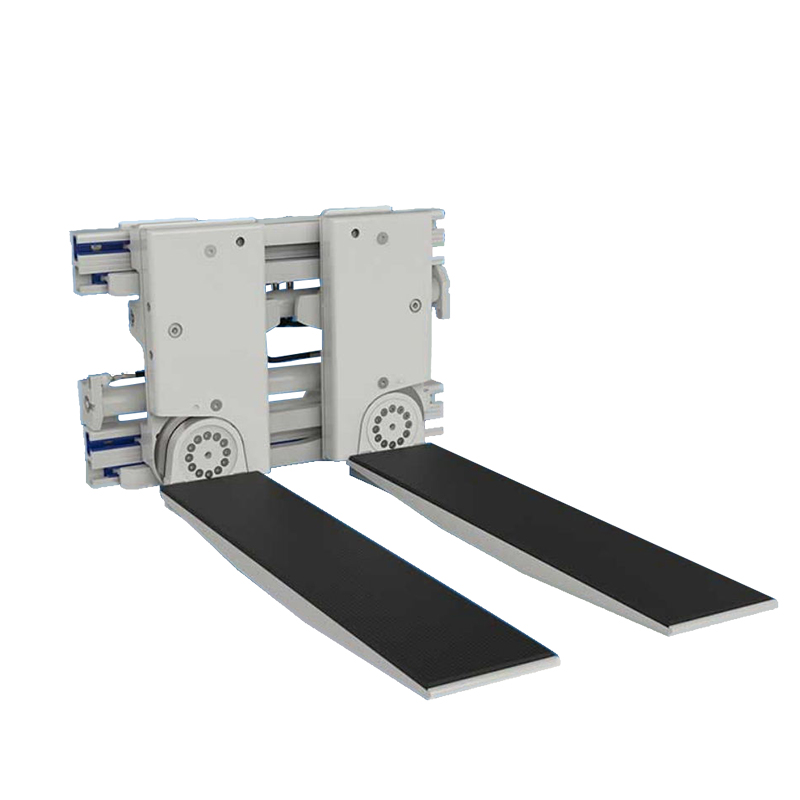

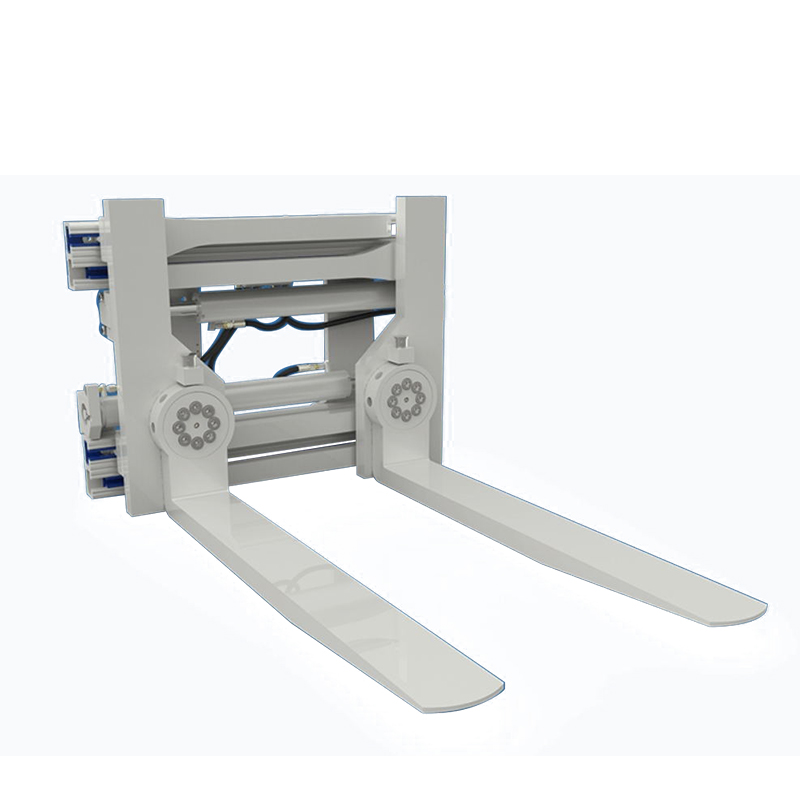

Name:Turnafork Clamp
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Turnafork Clamp Advantages:

1. Versatility

2. Ease of use

3. Stability and reliability

Product Description:

1. Flexible gripping of workpieces of various shapes and sizes

2. Sturdy structure and high-quality materials

3. Advanced clamping technology suitable for different shapes of workpieces

Specifications:
<
CAPACITY@LOAD CENTER MODEL MOUNTING CLASS OPENING RANGE OPENING RANGE FORK LENGTH SIZE FRAME WIDTH OVERALL HEIGHT VERTICAL CENTER OF GRAVITY WEIGHT EFFECTIVE THICKNESS HORIZONTAL CENTER OF GRAVITY
(kg@mm)

A(mm) M(mm) E×S×B(mm) W(mm) H(mm) VCG(mm) (kg) ET(mm) HCG(mm)
Hydraulic Rotating (3 additional hydraulic circuits)










2300@500 CJL23D-C002 III 180-1630 450-1900 150×50×1220 1260 863 206 605 274 250
Manual Rotating Pin Type (2 additional hydraulic circuits)










2300@500 CJL23G-C001 III 180-1630 450-1900 150×50×1220 1260 728 171 540 272 257
Fork with Balance Arm additional hydraulic circults










2300@600 CJL23E-B001 II 330-1340 200-1340 122×40×1200 962 811 128 510 202 334
