Products – Portable Drum Handling Equipment

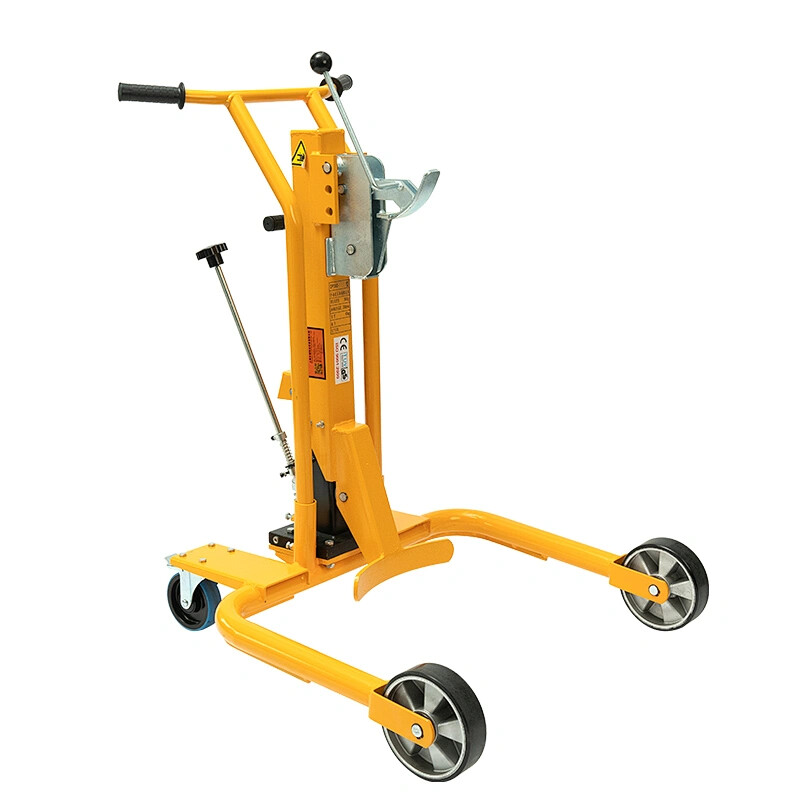

Name:DY350C Hand Drum Porter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Right-angular Leg Design

Allows for angled operation and handling of drums on pallets

2. High Lift, Heavy-duty, Durable

Excellent performance, strong load capacity, long service life

3. Versatile Applications

Can handle various 30~55 gallon steel or 210-liter plastic drums

Specifications:



Model
DY350C DY350C-1 DY350C-2
Capacity kg 350 350 350
Drum Size mm 30~55gallon (Ø450x700mm~Ø572x900mm) steel, 210L plastic
Lifting Height mm 450 450 450
Leg Width mm 920 920 920
Dia. of Front Wheel x Qty' mm Φ180×2 Φ180×2 Φ250×2 (with elastic)
Dia. of Rear Wheel x Qty' mm Φ150×2 Φ150×2 Φ150×2
Overall size mm 850×1100×1100 850×1100×1100 850×1100×1100
Net Weight kg 81 78 83
