Products – Portable Drum Handling Equipment

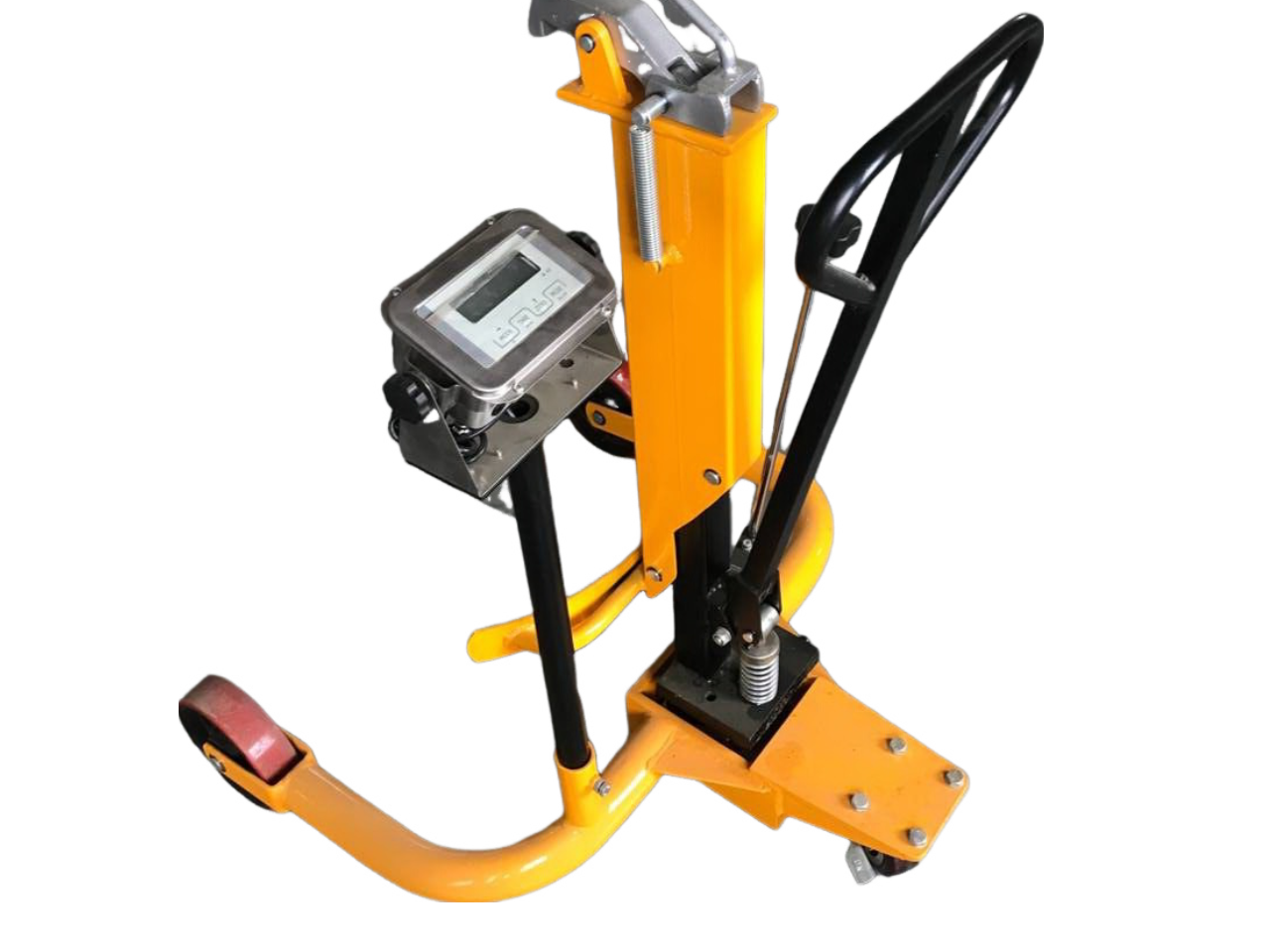

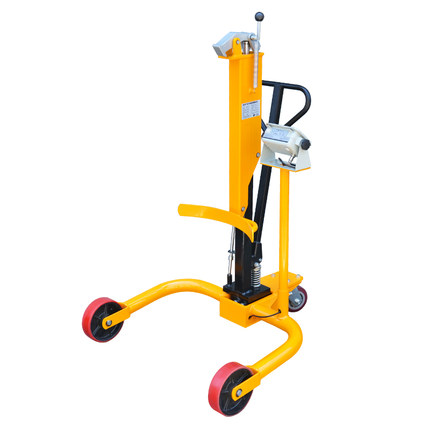

Name:DT300E Portable Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter and Handler
 Drum Carrier and Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Electronic Weighing Device: A multifunctional electronic instrument panel with features including power switch, tare function, and zeroing capability. Simply raise the drum hydraulically to the desired height to perform weighing and transportation tasks.

2. Strong Hydraulic Springs: Enhanced springs provide suitable elasticity and increased hardness, ensuring quick and reliable handle rebound for comfortable and effortless operation.

3. Suitable for Various Drums: Designed to handle various types of drums with strong gripping force and easy operation.

4. Eagle-Beak Style Drum Transporter: With a maximum load capacity of 300 kilograms, this equipment combines drum transport and weighing functions. It accurately measures the weight of materials inside the drum during transportation.

5. Polyurethane Wheels: Features high-quality polyurethane wheels for smooth, low-resistance movement and agile maneuverability. These wheels are safe, wear-resistant, and floor-friendly, with rear wheels equipped with foot-operated brakes.

6. Ingenious Chassis Structure: Utilizes a streamlined design with high-quality steel construction. The entire vehicle undergoes static spraying and high-temperature baking to achieve a smooth and corrosion-resistant finish, with the electronic scale connection line logically integrated.

7. Self-Locking Eagle-Beak: Utilizes an automatic locking mechanism with spring self-locking device on the eagle-beak, effectively preventing drum detachment and ensuring durability with a cast clamp.

Specifications:


Model Units DT300E
Features / Electronic Weighing Display
Rated Load Capacity kg 300
Lifting Method / Manual Hydraulic
Castor Wheel Specification (PU) mm φ180x50
Steering Wheel Specification mm φ125x50
Applicable Oil Drum Specification mm 55-gallon Steel Drum and 210L Plastic Drum
Inner Width of Support Leg mm 630
Oil Drum Lifting Height mm 200
Overall Dimensions mm 820x785x1100
Net Weight kg 68

Previous:DP350C Portable Drum TruckNext:DTF450E Portable Electric Drum TruckReturn
