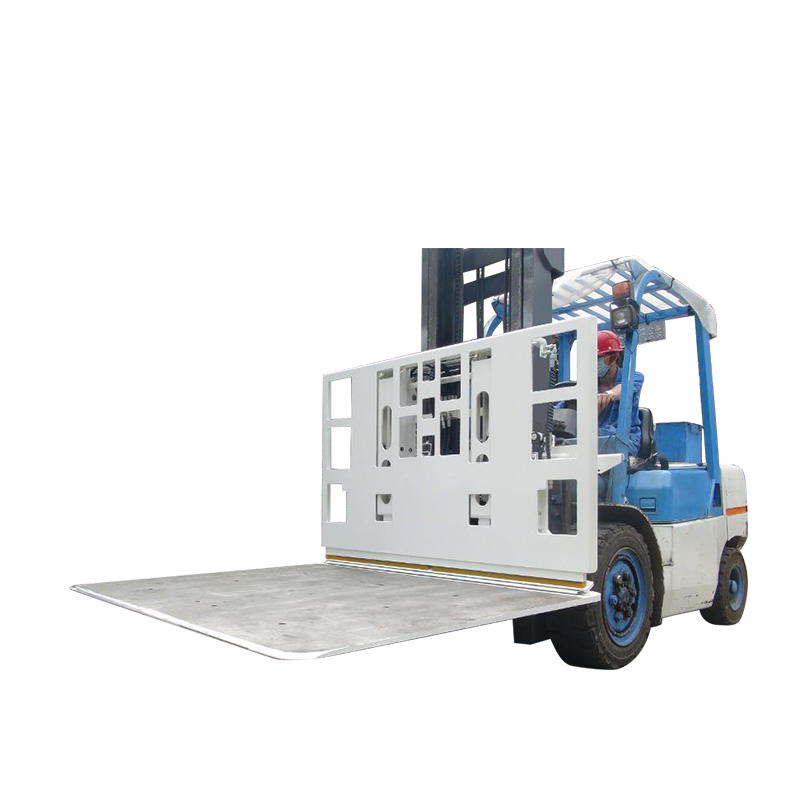

Name:K-SERIES PUSH PULL DEDICATED
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The push-pull design is used for handling and stacking packaged goods without pallets. With the help of replacing the sliding blades on the tray, the loaded blades are pulled onto the transport plate of the components and transported to the destination. It achieves high productivity in a way that is easy to maintain and reduces operating costs. Mainly used in industries such as petrochemicals, chemicals, pharmaceuticals, logistics, as well as any industry that uses palletless handling systems.

Specifications:
MODEL
PLATEN
SIZE
CARRYING
PLATE SIZE
WEIGHT
AxB (mm) Lxw (mm) (kg)
TLQ20K-B008 1050x982 25x1220x1050 572
TLQ20K-B010 1050x982 25x1220x900 590
TLQ20K-B012 1050x982 25x1200x1050 569
TLQ20K-B014 1050x982 25x1130x1050 550
TLQ20K-B016 1050x1065 25x1400x1100 624
TLQ20K-B020 1050x1065 25x1350x1050 618
TLQ20K-B022 1150x1065 25x1350x290 615
TLQ20K-B024 1050x1400 25x1220x1050 590
TLQ20K-B028 1200x982 25x1000x1200 560
TLQ20K-B042 1050x1065 25x1300x1050 620
TLQ20K-CD01 1150x1300 32x1200x1150 614
TLQ20K-C003 1600x1275 32x1500x1600 911
TLQ20K-C00B 1050x982 32x1220x1050 620
TLQ20K-C012 1050x982 32x1200x1050 585
TLQ20K-C014 1050x982 32x1130x1050 608
TLQ20K-C018 1600x1065 32x1400x1600 908
TLQ20K-C020 1050x1065 32x1350x1050 729
TLQ20K-C026 1500x1065 32x1300x1600 785
TLQ20K-C032 1200x1275 32x1450x1200 786
TLQ20K-C036 1500x982 25x1200x1500 747
TLQ20K-C038 1400x982 32x1220x1400 831
TLQ20K-C040 1600x1275 32x1550x1600 1080
TLQ20K-CD50 1200x1275 32x1500x1200 806
TLQ20K-CD64 1050x1065 32x1300x1100 743
