Products – Forklift Attachments

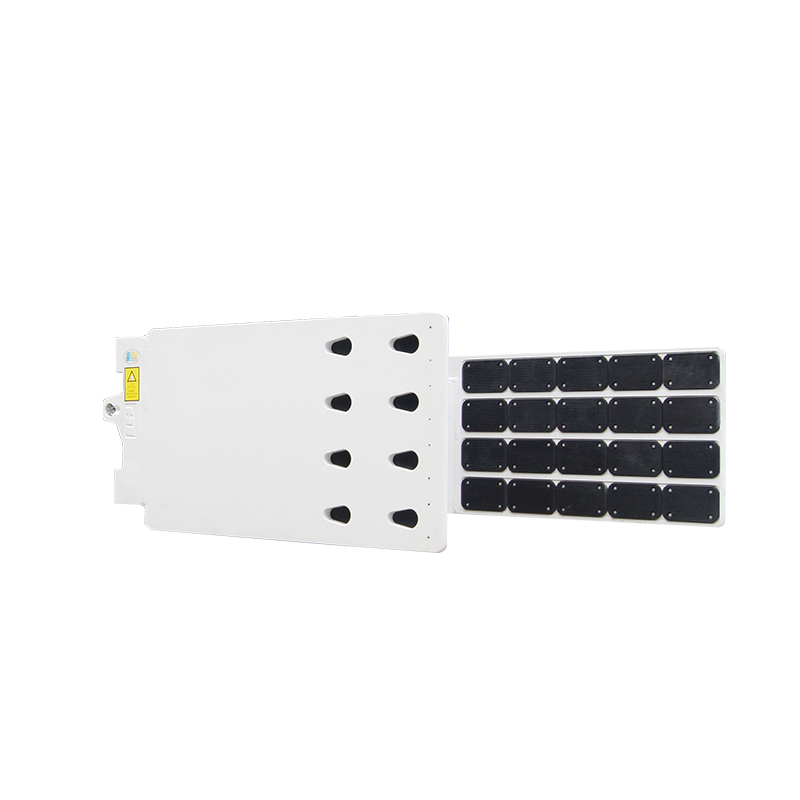

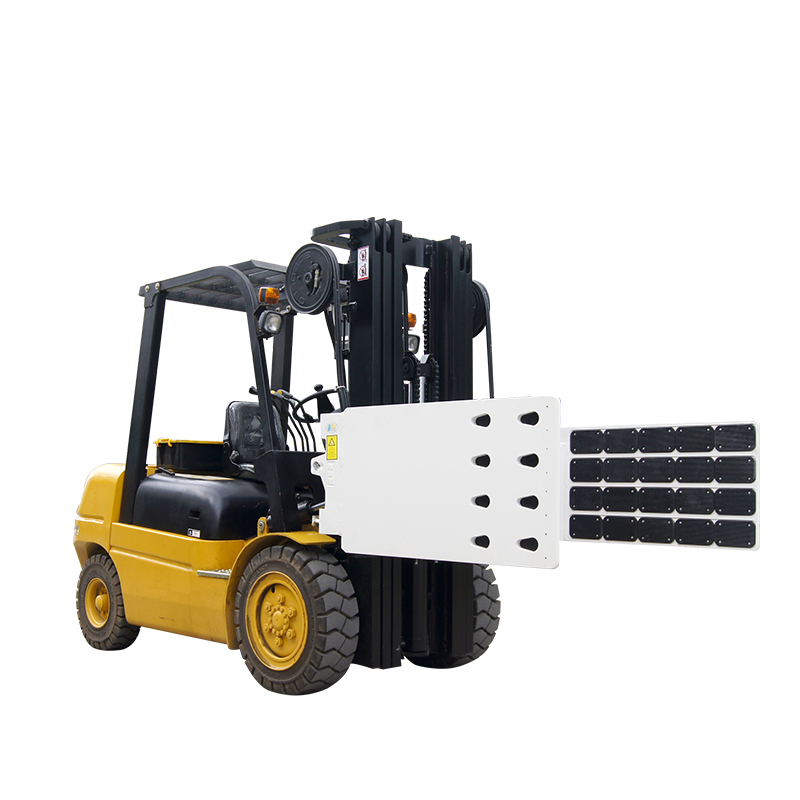

Name:Tobacco bale clamp forklift attachment
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Hydraulic systems: The main control valve in the load to maintain valve adopts imported products; seals are imported products, high-pressure hose with cone seal, high-performance import .

Structural components: The plywood are used around high-performance steel plates, and by the overall profiling and calibration, good bending properties.

Mechanical performance: You can also achieve clamping, open and drift functions, and better vision; additional groups can meet the requirements of asphalt

Applications: Tobacco Box folder is tailored for the tobacco industry, efficient, non-moving forklift pallet is a tobacco, especially for Roasting Plant, cigarette factory and other occasions of twin cured tobacco Container Handling.  thereby effectively improving the storage space utilization and avoid the carton damage, reduce the logistics cost, significantly increase productivity.

Specifications:
Model OPENINGRANGE ARM HEIGHT ARMLENGTH WEIGHT
A(mm) D(mm) B(mm) (kg)
YYC14D-B001 450-1610 580 940 460
YYC14D-B002 465-1625 580 1140 485
YYC19D-B001 490-1780 580 1140 490
YYC19D-B002/C002 500-1790 580 1340 607
YYC19D-B004 450-1610 723 1140 565
Previous:Multi-purpose Clamp forklift attachmentNext:Tyres handling and stacking forklift attachment clmapReturn
