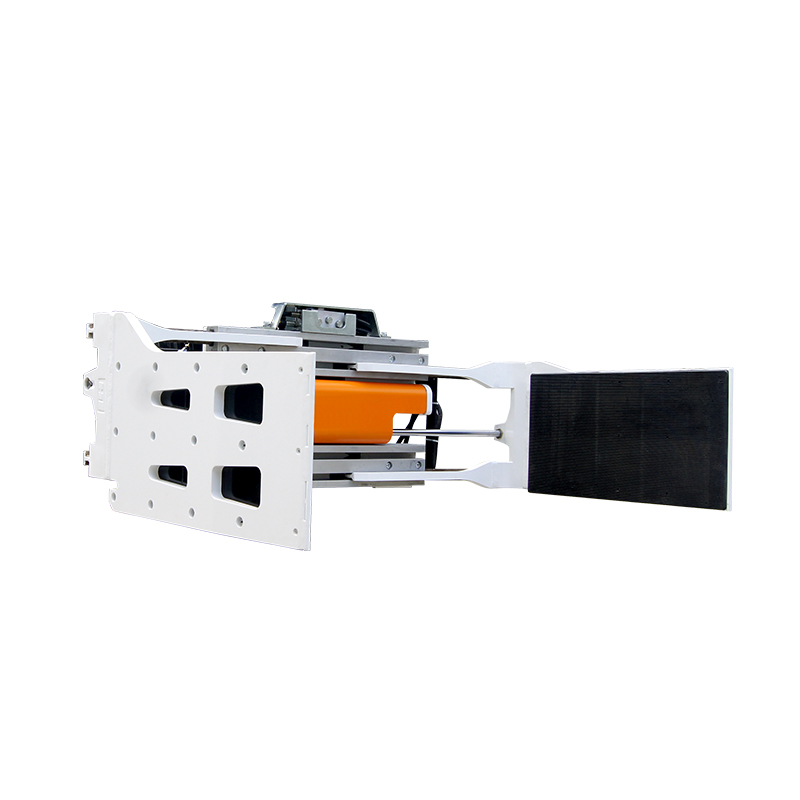

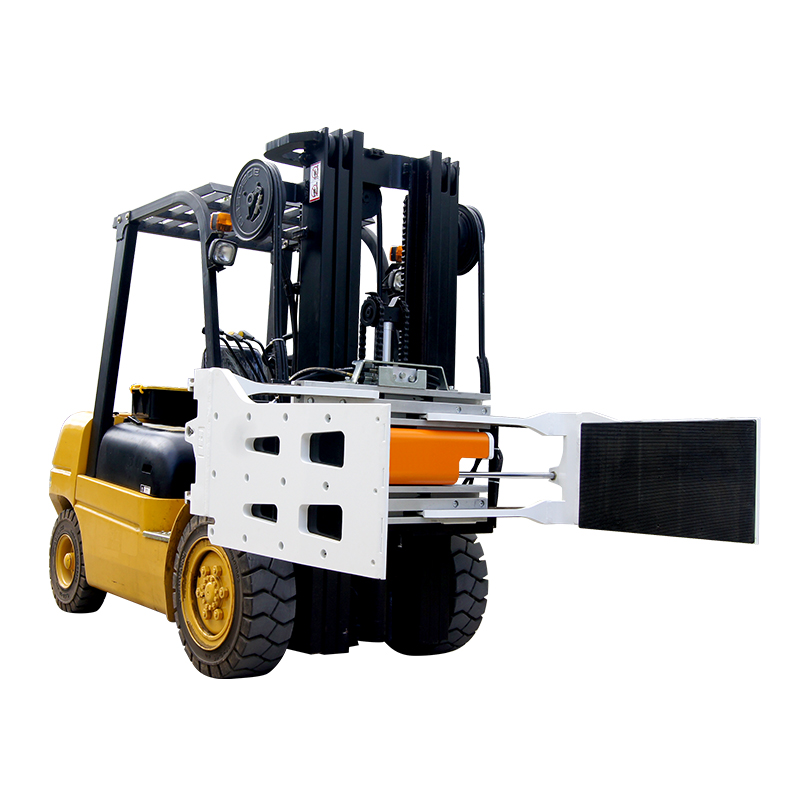

Name:Multi-purpose Clamp forklift attachment
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Multi-purpose clamp can handle unitised or box-shaped products palletless with high efficiency andsafty, Design of lateral sliding arm for smooth clamping and sideshifting function, Large contact padcan reduce the posibilities of distortion or damaging to loads while handling, it is widely used intobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator.LED, and etc.

Specifications:
MODEL
OPENIN
GRANGE
ARMHAGHT
ARM
LENGTH
ARM
THICKNESS
FRAME
WIDTH
VERTICAL
CENTER OFGRAVITY
WEIGHT
EFFECTIVE
THICKNESS
HORIZONTAL
CENTER OFGRAVITY
A (mm) D (mm) B (mm) E(mm) W (mm) VCG (mm) (kg) ET (mm) HCG (mm)
GBC19D-B001 540-1796 462 1000 55 940 193 426 128 322
GBC19D-B006 545-1800 462 1200 65 940 200 458 128128 391
GBC19D-C016 570-1860 580 1200 65 1040 221 537 128 409
GBC19D-C017 545-2125 580 1200 65 1260 221 580 128 383
GBC19D-B018 414-1574 610 615 50 1000 225 328 128 189
GBC19D-C019 475-1765 462 1320 60 1041 193 510 128 439
GBC19D-C020 460-1900 580 1200 65 1200 219 546 128 404
GBC27D-C001 580-1930 460 1580 70 1016 204 692 148 506
